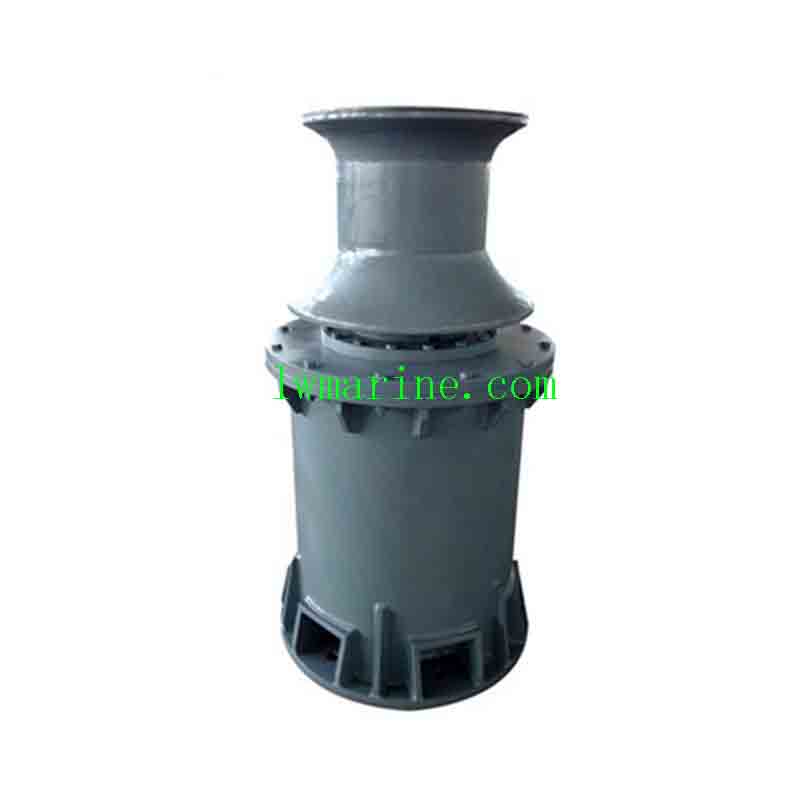

50kN Marine Vertical Mooring Capstan – Heavy-Duty Deck Machinery
High-Capacity Vertical Capstan for Secure Vessel Mooring
The 50kN Marine Vertical Mooring Capstan is a professional-grade deck winching system designed for demanding mooring and anchoring operations. With 5-ton pulling capacity and 360° line access, this vertically-mounted capstan delivers exceptional performance while optimizing deck space on commercial vessels.
Key Applications
✔ Commercial Ship Mooring – Secure port and starboard docking
✔ Anchor Handling – Efficient chain/rope management
✔ Tugboat Operations – Auxiliary mooring line control
✔ Offshore Platform Support – Vessel positioning in harsh conditions
Technical Specifications
Core Design Features
✔ Vertical Drum Orientation – Unrestricted 360° line access
✔ 50kN Hydraulic Drive – 5-ton continuous pulling capacity
✔ Below-Deck Power Unit – Protected motor and gearbox
✔ Marine-Grade Construction – Cast steel body with 316L stainless contact surfaces
Performance Advantages
-
Precision Control – Stepless speed adjustment (±1% accuracy)
-
Space Efficiency – Compact footprint saves deck space
-
All-Weather Reliability – Operates from -25°C to +60°C
-
Safety Systems – Dual braking (manual + hydraulic) + overload protection
Control Options
-
Local Control Panel – Waterproof deck-side operation
-
Wireless Remote – 100m operational range (IP68)
-
Bridge Integration – Optional CAN bus interface
Certifications & Compliance
✔ LR, RINA, IRS Certified
✔ SOLAS Safety Compliant
✔ OCIMF Mooring Guidelines
Parameters:
| Working Load(KN) | Mooring Speed (m/min) | Wire Dia.(mm) | Motor power (kw) |
| 50 | ≥18 | φ20.5 | 30 |
The description/sizes may be different with goods, please check with us when order.
