Marine Cargo Hold & Oil Tank Vertical Ladders – IACS Certified
Product Overview

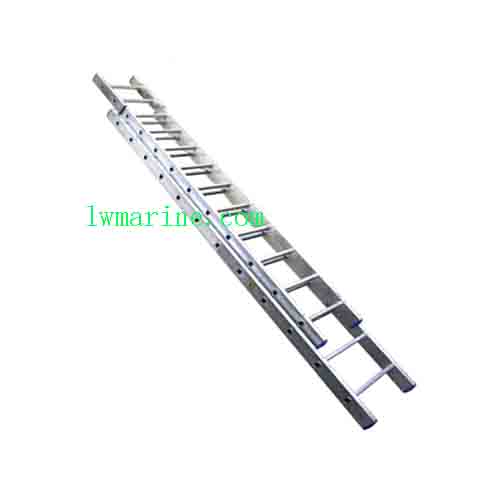

Our heavy-duty marine vertical ladders are engineered for safe, reliable access in cargo holds and oil tanks, meeting stringent marine safety requirements. These IACS-certified ladders feature robust construction with three structural variations to suit different vessel applications.
Key Features & Benefits
✔ Three Structural Configurations:
-
Type A: Oil Tank Ladder (L100×80×10 stringer)
-
Type B: Angle Steel Cargo Hold Ladder (L80×50×8)
-
Type C: Bulb Flat Steel Cargo Hold Ladder (L140×35×9)
✔ Durable Marine Construction:
-
High-strength steel stringers
-
Corrosion-resistant materials
-
Non-slip step design
✔ Custom Length Options:
-
1200mm to 6000mm (Type A/B)
-
2100mm (Type C)
✔ Global Certification Ready:
BV | CCS | NK | DNV | GL | IRS | ABS | LR | RMRS | RINA
Technical Specifications
| Type | Name | Stringer Size | Width (B) | Length (L) |
|---|---|---|---|---|
| A | Oil Tank Ladder | L100×80×10 | 300/400mm | 1220-6000mm |
| B | Angle Steel Ladder | L80×50×8 | 300/400mm | 1200-6000mm |
| C | Bulb Flat Steel Ladder | L140×35×9 | 400mm | 2100mm |
The description/sizes may be different with goods, please check with us when order.
