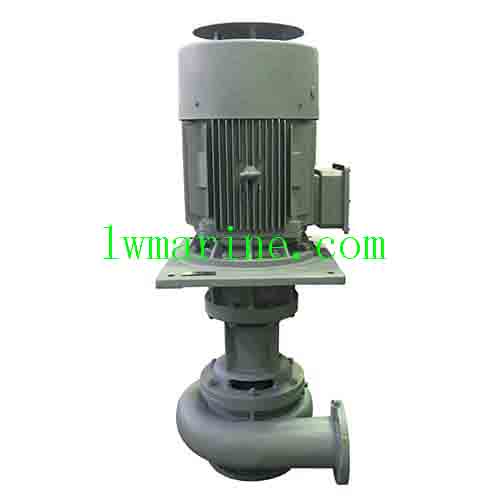

Marine Vertical Centrifugal Pumps CL Series

Marine Vertical Centrifugal Pumps CL Series

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

CL Series Marine Vertical Centrifugal Pumps | Compact & Efficient Marine Fluid Handling Solutions

Product Overview
The CL Series Marine Vertical Centrifugal Pumps deliver superior performance in marine applications with its space-saving vertical design and versatile sealing options. Engineered for reliability in demanding sea environments, these pumps offer flexible operation with either mechanical seals or packing seals based on specific application requirements. Ideal for vessel ballast systems, bilge pumping, cooling circulation, and fire protection applications, the CL series efficiently handles seawater, freshwater, and other mildly corrosive liquid media at temperatures up to 80°C.

Model Identification: 50CL-30A(B)

  • 50: Inlet diameter (50 mm)

  • CL: Marine vertical centrifugal pump

  • 30: Head (30 meters)

  • A(B): First (second) stage impeller trimming

Technical Specifications

  • Flow Capacity: 20–300 m³/h (50Hz) | 24–360 m³/h (60Hz)

  • Head Range: 21.5–85 meters (50Hz) | 30.9–122.4 meters (60Hz)

  • Motor Power: 3–45 kW (50Hz) | 5.5–75 kW (60Hz)

  • Temperature Limit: 80°C maximum

  • Suction Capacity: 4–7 meters

  • Efficiency Rating: Up to 80% maximum efficiency

Performance Data Highlights

Model Capacity (m³/h) Head (m) Motor Power (kW) Efficiency (%)
50CL-30 20–24 30–43 4–5.5 62
65CL-45 30–32.4 37–64.8 5.5–15 65–67
80CL-65 44–60 50–93.6 15–30 63–65
100CL-85 87–120 64–122.4 30–75 65–67
125CL-50 200–240 50–72 45–75 78
200CL-30 240–360 21.5–43 22–75 76–80

Advanced Features & Benefits

  • Space-Saving Vertical Design: Ideal for compact marine engine rooms and limited spaces

  • Dual Sealing Options: Choice of mechanical seals or packing seals for application flexibility

  • Corrosion-Resistant Construction: Suitable for seawater and mildly corrosive media

  • High-Efficiency Operation: Optimized impeller design ensures energy savings

  • Marine-Grade Reliability: Built for continuous operation in harsh marine environments

  • Easy Maintenance: Simplified access for inspection and service

  • Global Compatibility: 50Hz/60Hz operation with 2900/3500 rpm speed options

The description/sizes may be different with goods, please check with us when order.
