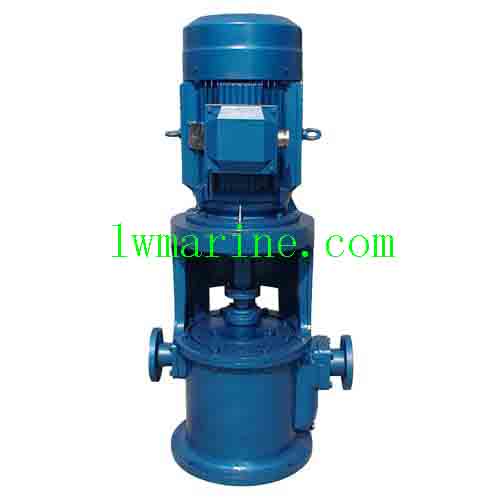

China Marine Vertical Centrifugal Pump CLZ Series
Elevate your marine operations with our cutting-edge China Marine Vertical Centrifugal Pump CLZ Series, a premier choice for marine engineers seeking compact, lightweight, and highly efficient pumping solutions. Engineered specifically for the demanding environments of marine vessels, these pumps boast exceptional self-priming capabilities, ensuring reliable performance even in challenging conditions.
Key Features & Benefits:
- Compact & Lightweight Design: Maximizes space utilization onboard, facilitating easy installation and maintenance.
- Superior Self-Priming Performance: Quickly primes to deliver immediate water flow, enhancing operational efficiency.
- Versatile Applications: Ideal for ballast water transfer, firefighting systems, engine cooling circuits, bilge management, and various naval vessel operations.
- Durable Construction: Built to withstand the rigors of marine environments, ensuring long-lasting reliability.
Technical Specifications:
- Type: Vertical centrifugal self-priming pump
- Max. Medium Temperature: <80°C (176°F), suitable for seawater, freshwater, and non-corrosive liquids
- Design Advantages: Space-saving vertical configuration, rapid priming, and high efficiency
- Compatible Vessels: Commercial ships, workboats, naval vessels, and more
Detailed Technical Parameters:
Our CLZ Series pumps come in a variety of models, each tailored to meet specific flow rate, head, and power requirements. Here’s a snapshot of some popular models:
- 40CLZ-2: Flow rate 5 m³/h, Head 60 m, Shaft power 3.93 kW, Motor power 5.5 kW, Efficiency 19%
- 50CLZ-3: Flow rate 12.5 m³/h, Head 50 m, Shaft power 3.27 kW, Motor power 5.5 kW, Efficiency 52%
- 65CLZ-5: Flow rate 25 m³/h, Head 45 m, Shaft power 6.38 kW, Motor power 7.5 kW, Efficiency 48%
- 80CLZ-13: Flow rate 45 m³/h, Head 21 m, Shaft power 5.14 kW, Motor power 7.5 kW, Efficiency 50%
- 100CLZ-17: Flow rate 80 m³/h, Head 20 m, Shaft power 7.26 kW, Motor power 11 kW, Efficiency 60%
- 125CLZ-12: Flow rate 160 m³/h, Head 50 m, Shaft power 35.1 kW, Motor power 45 kW, Efficiency 62%
- 150CLZ-21: Flow rate 250 m³/h, Head 32 m, Shaft power 33.5 kW, Motor power 45 kW, Efficiency 65%
- 200CLZ-20.5: Flow rate 500 m³/h, Head 20 m, Shaft power 43.9 kW, Motor power 55 kW, Efficiency 62%
(Note: For a complete list of models and their specifications, please refer to the detailed technical parameter table provided above.)
FAQs:
Q1: Are the CLZ Series pumps suitable for both freshwater and seawater applications?
A1: Yes, our CLZ Series pumps are designed to handle both freshwater and seawater, as well as other non-corrosive liquids, making them versatile for various marine applications.
Q2: What is the maximum temperature the pumps can withstand?
A2: The pumps can withstand a maximum medium temperature of <80°C (176°F), ensuring reliable performance even in high-temperature environments.
Q3: How do the pumps’ self-priming capabilities enhance operational efficiency?
A3: The quick priming feature of our pumps ensures immediate water flow upon startup, reducing downtime and enhancing overall operational efficiency, especially in emergency situations like firefighting.
Q4: Can these pumps be customized to meet specific flow rate and head requirements?
A4: Absolutely! We offer a wide range of models with varying flow rates and heads to cater to your specific needs. Additionally, our engineering team can work with you to design custom solutions if required.
Q5: What maintenance is required for these pumps to ensure long-lasting performance?
A5: Regular inspection and cleaning of the pump components, along with periodic lubrication of moving parts, are recommended to maintain optimal performance. Our pumps are designed for easy maintenance, minimizing downtime and costs.
The description/sizes may be different with goods, please check with us when order.
