General

CLH Series marine vertical centrifugal pumps are applicable for bilge pumps, ballast pumps, cooling pumps, fire pumps, and general service pumps. They are suitable for conveying seawater, fresh water, and other non-corrosive liquid media with temperature not higher than 80°C. This pump has no self-priming function.

Pump Number’s Meanings:

100 CLH – 10 A

  • A — Impeller after the first cut

  • 10 — Pump specific speed divided by 10 (integer)

  • CLH — Marine vertical centrifugal pump

  • 100 — Pump inlet and outlet diameter (100 mm)

Main Technical Parameters (50Hz, 3φ 380V)
No. Pump Model Flow (m³/h) Head (m) NPSHr (m) Speed (r/min) Shaft Power (kW) Matching Motor Power (kW)
1 40CLH-9.5 6.25 / 12.5 / 15 13.7 / 12.5 / 10.8 3.5 2900 0.935 1.1kW, Y8022-H
2 40CLH-7 3.15 / 6.3 / 7.56 13.7 / 12.5 / 10.8 3.5 2900 0.46 0.55kW, Y71122-H
3 40CLH-6.5 6.25 / 12.5 / 15 22 / 20 / 17.4 3.5 2900 1.27 1.5kW, Y905-S2-H
4 40CLH-5 (I) 6.25 / 12.5 / 15 35.2 / 32 / 27.5 3.5 2900 2.56 3kW, Y100L-2-H
5 40CLH-5 3.15 / 6.3 / 7.56 22 / 20 / 17.4 3.5 2900 0.935 1.1kW, Y8022-H
6 40CLH-3.5 6.25 / 12.5 / 15 55 / 50 / 43.5 3.5 2900 4.67 5.5kW, Y132S1-2-H
7 40CLH-3 3.15 / 6.3 / 7.56 35.2 / 32 / 27.5 3.5 2900 1.87 2.2kW, Y90L-2-H
8 40CLH-2.5 6.25 / 12.5 / 15 88 / 80 / 69.5 3.5 2900 9.35 11kW, Y160M1-2-H
9 40CLH-2 3.15 / 6.3 / 7.56 55 / 50 / 43.5 3.5 2900 3.4 4kW, Y112M2-2-H
10 40CLH-1.5 3.15 / 6.3 / 7.56 88 / 80 / 69.5 3.5 2900 6.37 7.5kW, Y132S2-2-H
11 50CLH-13 12.5 / 25 / 30 13.75 / 12.5 / 10.5 3.5 2900 1.27 1.5kW, Y90S-2-H
12 50CLH-9.5 6.25 / 12.5 / 15 13.75 / 12.5 / 10.5 3.5 2900 0.935 1.1kW, Y8022-H
13 50CLH-9 12.5 / 25 / 30 22 / 20 / 17.4 3.5 2900 2.56 3kW, Y100L-2-H
14 50CLH-7 12.5 / 25 / 30 35.2 / 32 / 27.8 3.5 2900 3.4 4kW, Y112M2-2-H
15 50CLH-6.5 6.25 / 12.5 / 15 22 / 20 / 17.4 3.5 2900 1.27 1.5kW, Y90S-2-H
16 50CLH-5 (I) 12.5 / 25 / 30 55 / 50 / 43.5 3.5 2900 6.37 7.5kW, Y132S2-2-H
17 50CLH-5 6.25 / 12.5 / 15 35.2 / 32 / 27.5 3.5 2900 2.56 3kW, Y100L-2-H
18 50CLH-3.5 6.25 / 12.5 / 15 55 / 50 / 43.5 3.5 2900 4.67 5.5kW, Y132S1-2-H
19 50CLH-3 12.5 / 25 / 30 88 / 80 / 69.5 3.5 2900 12.75 15kW, Y160M2-2-H
20 50CLH-2.5 6.25 / 12.5 / 15 88 / 80 / 69.5 3.5 2900 9.35 11kW, Y160M1-2-H
21 50CLH-2 12.5 / 25 / 30 13.75 / 12.5 / 10.5 3.5 2900 25.6 30kW, Y200L1-2-H
22 65CLH-19 25 / 50 / 60 13.75 / 12.5 / 10.5 3.5 2900 2.56 3kW, Y100L-2-H
23 65CLH-13.5 25 / 50 / 60 22 / 20 / 17.4 4.0 2900 4.67 5.5kW, Y132S1-2-H
24 65CLH-13 12.5 / 25 / 30 13.75 / 12.5 / 10.5 3.5 2900 1.27 1.5kW, Y908-2-H
25 65CLH-9.5 12.5 / 50 / 60 35.2 / 32 / 27.4 4.0 2900 6.37 7.5kW, Y132S2-2-H
26 65CLH-9 12.5 / 25 / 30 22 / 20 / 17.4 3.5 2900 2.56 3kW, Y100L-2-H
27 65CLH-7 12.5 / 25 / 30 35.2 / 32 / 27.4 3.5 2900 3.4 4kW, Y112M-2-H
28 65CLH-6 25 / 50 / 60 55 / 50 / 43.5 4.0 2900 12.75 15kW, Y160M2-2-H
29 65CLH-5 (I) 25 / 50 / 60 88 / 80 / 69.5 4.0 2900 18.7 22kW, Y180M-2-H
30 65CLH-5 12.5 / 25 / 30 55 / 50 / 43.5 3.5 2900 6.37 7.5kW, Y132S2-2-H
31 65CLH-3.5 25 / 50 / 60 137 / 125 / 108 4.0 2900 31.5 37kW, Y200L2-2-H
32 65CLH-3 12.5 / 25 / 30 88 / 80 / 69.5 3.5 2900 12.75 15kW, Y160M2-2-H
33 65CLH-2 12.5 / 25 / 30 137 / 125 / 108 3.5 2900 25.5 30kW, Y200L1-2-H
34 80CLH-26.5 50 / 100 / 120 13.75 / 12.5 / 10.5 5.0 2900 4.67 5.5kW, Y132S1-2-H
35 80CLH-19 25 / 50 / 60 13.75 / 12.5 / 10.5 4.0 2900 2.56 3kW, Y100L-2-H
36 80CLH-13.5 50 / 100 / 120 35.2 / 32 / 27.5 5.0 2900 12.75 15kW, Y160M2-2-H
37 80CLH-13 25 / 50 / 60 22 / 20 / 17.4 4.0 2900 4.67 5.5kW, Y132S1-2-H
38 80CLH-11 35 / 50 / 65 35 / 30 / 28 3.5 2900 6.37 7.5kW, Y132S2-2-H
39 80CLH-9 50 / 100 / 120 55 / 50 / 43.5 4.5 2900 18.7 22kW, Y180M2-2-H
40 80CLH-7 25 / 50 / 60 55 / 50 / 43.5 4.0 2900 12.75 15kW, Y160M2-2-H
41 80CLH-6.5 50 / 100 / 120 88 / 80 / 69.5 4.5 2900 31.45 37kW, Y200L2-2-H
42 80CLH-5 25 / 50 / 60 88 / 80 / 69.5 4.0 2900 18.7 22kW, Y180M2-2-H
43 80CLH-4.5 50 / 100 / 120 137 / 125 / 108 4.5 2900 63.75 75kW, Y280S-2-H
44 80CLH-3 25 / 50 / 60 137 / 125 / 108 4.0 2900 31.45 37kW, Y200L2-2-H
45 80CLH-2 50 / 100 / 120 22 / 20 / 17.4 5.0 2900 9.35 11kW, Y160M1-2-H
46 100CLH-26.5 50 / 100 / 120 13.75 / 12.5 / 10.5 5.0 2900 4.67 5.5kW, Y132S1-2-H
47 100CLH-18.5 50 / 100 / 120 22 / 20 / 17.4 5.0 2900 9.35 11kW, Y160M1-2-H
48 100CLH-13 70 / 100 / 130 36.5 / 30 / 24 4.0 2900 12.75 15kW, Y160M2-2-H
49 100CLH-10 70 / 100 / 130 54 / 50 / 42 4.8 2900 18.7 22kW, Y180M-2-H
50 100CLH-8 70 / 100 / 130 132 / 125 / 114 4.8 2900 25.5 30kW, Y200L1-2-H
51 100CLH-6 50 / 100 / 120 88 / 80 / 69.5 4.5 2900 31.45 37kW, Y200L2-2-H
52 125CLH-23.5 80 / 160 / 192 22 / 20 / 17.4 4.5 2900 12.75 15kW, Y160M2-2-H
53 125CLH-19 120 / 200 / 240 35 / 32 / 28 5.1 2900 25.5 30kW, Y200L1-2-H
54 125CLH-17 112 / 160 / 208 35 / 32 / 28 5.2 2900 18.7 22kW, Y180M-2-H
55 125CLH-13 100 / 200 / 240 55 / 50 / 43.5 5.0 2900 18.7 22kW, Y180M-2-H
56 125CLH-12 96 / 160 / 192 55 / 50 / 46 5.5 2900 31.45 37kW, Y200L2-2-H
57 125CLH-9 100 / 200 / 240 88 / 80 / 69.5 5.0 2900 63.75 75kW, Y280S-2-H
58 125CLH-8 96 / 160 / 192 87 / 80 / 73 4.8 2900 46.75 55kW, Y250M-2-H
59 125CLH-7 80 / 160 / 192 35.2 / 32 / 27.5 4.5 2900 18.7 22kW, Y180M-2-H
60 125CLH-6.5 100 / 200 / 240 137 / 125 / 108 5.0 2900 93.5 110kW, Y315S-2-H
61 125CLH-6 80 / 160 / 192 137 / 125 / 108 5.0 2900 76.5 90kW, Y280M-2-H
62 125CLH-5 80 / 160 / 192 13.75 / 12.5 / 10.5 4.5 2900 9.35 11kW, Y160M+2-H
63 150CLH-22 140 / 200 / 260 33.8 / 32 / 28 3.5 1450 25.5 30kW, Y200L-4-H
64 150CLH-19 100 / 200 / 240 13.75 / 12.5 / 10.5 4.0 1450 12.75 15kW, Y160L-4-H
65 150CLH-17 80 / 160 / 192 13.75 / 12.5 / 10.5 4.5 1450 9.35 11kW, Y160M-4-H
66 150CLH-13 100 / 200 / 240 22 / 20 / 17.4 4.0 1450 15.72 18.5kW, Y180M-4-H
67 150CLH-12 80 / 160 / 192 22 / 20 / 17.4 4.5 1450 12.75 15kW, Y160L-4-H
68 150CLH-9.5 100 / 200 / 240 88 / 80 / 69.5 5.0 2900 63.75 75kW, Y280S-2-H
69 150CLH-9 100 / 200 / 240 35.2 / 32 / 27.5 4.0 1450 25.5 30kW, Y200L-4-H
70 150CLH-8 80 / 160 / 192 35.2 / 32 / 27.5 4.0 1450 18.7 22kW, Y180L-4-H
71 150CLH-7 100 / 200 / 240 137 / 125 / 108 5.0 2900 93.5 110kW, Y315S-2-H
72 150CLH-6.5 100 / 200 / 240 55 / 50 / 43.5 4.0 1450 38.25 45kW, Y225M-4-H
73 150CLH-6 112 / 160 / 208 23.5 / 20 / 17.4 4.0 1450 31.45 37kW, Y225S-4-H
74 150CLH-5 100 / 200 / 240 88 / 80 / 69.5 4.0 1450 63.75 75kW, Y280S-4-H
75 150CLH-4 80 / 160 / 192 88 / 80 / 69.5 4.0 1450 46.75 55kW, Y250M-4-H
76 200CLH-26.5 200 / 400 / 480 13.75 / 12.5 / 10.5 4.5 1450 18.7 22kW, Y180L-4-H
77 200CLH-19 100 / 200 / 240 13.75 / 12.5 / 10.5 4.0 1450 12.75 15kW, Y160L-4-H
78 200CLH-18.5 280 / 400 / 520 22 / 20 / 17.4 4.0 1450 25.5 30kW, Y200L-4-H
79 200CLH-13.5 100 / 200 / 240 22 / 20 / 17.4 4.0 1450 15.72 18.5kW, Y180M-4-H
80 200CLH-13 280 / 400 / 520 36 / 32 / 26 4.0 1450 46.75 55kW, Y250M-4-H
81 200CLH-9.5 200 / 400 / 480 55 / 50 / 43.5 4.5 1450 63.75 75kW, Y280S-4-H
82 200CLH-9 100 / 200 / 240 35.2 / 32 / 27.5 4.0 1450 25.5 30kW, Y200L-4-H
83 200CLH-7 100 / 200 / 240 55 / 50 / 43.5 4.0 1450 38.25 45kW, Y225M-4-H
84 200CLH-6.5 200 / 400 / 480 88 / 80 / 69.5 5.5 1450 112.2 132kW, Y315M-4-H
85 200CLH-5 200 / 400 / 480 137 / 125 / 108 4.5 1450 170 200kW, Y315L-4-H
86 250CLH-34 325 / 650 / 780 13.75 / 12.5 / 10.5 4.5 1450 25.5 30kW, Y200L-4-H
87 250CLH-22 400 / 550 / 670 22.5 / 20 / 16 4.8 1450 38.25 45kW, Y225M-4-H
88 250CLH-18 400 / 550 / 670 36 / 32 / 26 4.8 1450 63.75 75kW, Y280S-4-H
89 250CLH-11 275 / 550 / 660 55 / 50 / 43.5 5.5 1450 93.5 110kW, Y315S-4-H
90 250CLH-9 275 / 550 / 660 77 / 70 / 60.5 5.5 1450 136 160kW, Y315L-4-H
91 250CLH-8 275 / 550 / 660 88 / 80 / 69.5 5.5 1450 170 200kW, Y315L-4-H
92 300CLH-36 360 / 720 / 864 22 / 20 / 17.4 5.5 1450 31.45 37kW, Y225S-4-H
93 300CLH-27 360 / 720 / 864 19.8 / 18 / 15.5 5.5 1450 46.75 55kW, Y250M-4-H
94 300CLH-20 360 / 720 / 864 22 / 20 / 17.4 5.5 1450 46.75 55kW, Y250M-4-H
95 300CLH-19.5 360 / 720 / 864 30.8 / 28 / 24.3 5.5 1450 63.75 75kW, Y280S-4-H
96 300CLH-17.5 360 / 720 / 864 35.2 / 32 / 27.5 5.5 1450 76.5 90kW, Y280M-4-H
97 300CLH-14 360 / 720 / 864 48 / 44 / 38 6.0 1450 112.2 132kW, Y315M-4-H
98 300CLH-10 360 / 720 / 864 71.5 / 65 / 56.5 6.0 1450 170 200kW, Y315L2-4-H
99 300CLH-9 360 / 720 / 864 88 / 80 / 69.5 6.0 1450 212.5 250kW, Y355M4-4-H
100 350CLH-44 540 / 1080 / 1296 13.75 / 12.5 / 10.5 6.0 970 46.75 55kW, Y280M4-6-H
101 350CLH-31 540 / 1080 / 1296 22 / 20 / 17.4 6.0 970 76.5 90kW, Y315M4-6-H
102 350CLH-21.5 540 / 1080 / 1296 35.2 / 32 / 27.5 6.0 1450 112.2 132kW, Y315M4-4-H
103 350CLH-18 540 / 1080 / 1296 44 / 40 / 34.5 6.0 1450 136 160kW, Y315L1-4-H
104 350CLH-15 540 / 1080 / 1296 55 / 50 / 43.5 6.0 1450 170 200kW, Y315L2-4-H
105 350CLH-13 540 / 1080 / 1296 66 / 60 / 52 6.0 1450 212.5 250kW, Y355M4-4-H
106 350CLH-46 600 / 1200 / 1300 13.5 / 12.5 / 7.2 6.0 970 46.75 55kW, Y280M4-6-H
107 350CLH-32 600 / 1200 / 1300 22 / 20 / 17.4 6.0 970 76.5 90kW, Y315M4-6-H
108 350CLH-23 600 / 1200 / 1300 35.2 / 32 / 27.5 6.0 1450 136 160kW, Y315L1-4-H
109 350CLH-16 600 / 1200 / 1300 55 / 50 / 43.5 6.0 1450 212.5 250kW, Y355M4-4-H
110 350CLH-12.5 600 / 1200 / 1300 13.5 / 12.5 / 7.2 6.0 1450 63.75 75kW, Y280S4-4-H

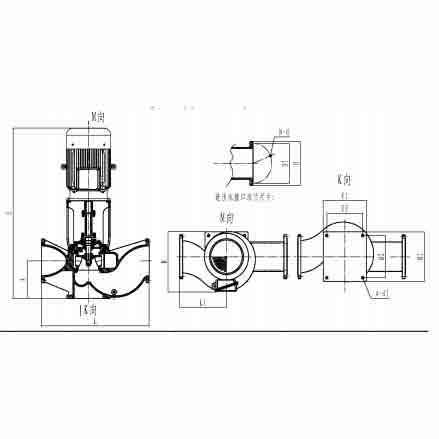

Figure Appearance Products and Installation Size
No. Model Dimension Size Installation Size Import/Export Flange Size Isolator Mat
L B H C1×B1 A L1 C2×B2 4-Φd1 D D1 n-d Spec. H1
1 40CLH-9.5 310 230 715 1450×205 100 150 1000×160 +Φ18 Φ190 Φ110 Φ18 SDB14-0.5 120
2 40CLH-7 290 230 640 1200×170 85 145 800×130 +Φ18 Φ190 Φ110 Φ18 SDB14-0.5 106
3 40CLH-6.5 260 240 745 1450×205 105 180 1000×160 +Φ18 Φ190 Φ110 Φ18 SDB14-0.5 125
4 40CLH-5 (I) 360 300 805 1450×205 105 180 1000×160 +Φ18 Φ190 Φ110 Φ18 SDB14-0.5 125
5 40CLH-5 360 300 805 1450×205 105 180 1000×160 +Φ18 Φ190 Φ110 Φ18 SDB14-0.5 125
6 40CLH-3.5 400 350 880 1450×205 105 200 1000×160 +Φ18 Φ190 Φ110 Φ18 SDB14-0.5 125
7 40CLH-3 360 270 700 1200×170 95 180 800×130 +Φ18 Φ190 Φ110 Φ18 SDB14-0.5 115
8 40CLH-2.5 470 430 935 1700×230 110 235 1200×180 +Φ18 Φ190 Φ110 Φ18 KZ1-2 220
9 40CLH-2 390 330 760 1450×205 100 195 1000×160 +Φ18 Φ190 Φ110 Φ18 SDB14-0.5 120
10 40CLH-1.5 460 405 950 1450×205 100 210 1000×160 +Φ18 Φ190 Φ110 Φ18 SDB14-0.5 120
11 50CLH-13 530 235 740 1700×230 105 165 1200×180 +Φ18 Φ165 Φ125 +Φ18 SDB14-0.5 125
12 50CLH-9.5 510 230 715 1450×205 100 155 1000×160 +Φ18 Φ165 Φ125 +Φ18 SDB14-0.5 120
13 50CLH-9 590 280 805 1700×230 105 195 1200×180 +Φ18 Φ165 Φ125 +Φ18 SDB14-0.5 125
14 50CLH-7 500 305 825 1700×230 105 195 1200×180 +Φ18 Φ165 Φ125 +Φ18 SDB14-0.5 125
15 50CLH-6.5 560 305 825 1700×230 105 195 1200×180 +Φ18 Φ165 Φ125 +Φ18 SDB14-0.5 125
16 50CLH-5 (I) 600 300 805 1450×205 105 180 1000×160 +Φ18 Φ165 Φ125 +Φ18 SDB14-0.5 125
17 50CLH-5 560 300 805 1450×205 105 180 1000×160 +Φ18 Φ165 Φ125 +Φ18 SDB14-0.5 125
18 50CLH-3.5 490 350 830 1450×205 105 200 1000×160 +Φ18 Φ165 Φ125 +Φ18 SDB14-0.5 125
19 50CLH-3 500 435 905 1950×285 120 250 1200×240 +Φ18 Φ165 Φ125 +Φ18 KZ1-2 240
20 50CLH-2.5 470 430 955 1700×230 110 235 1200×180 +Φ18 Φ165 Φ125 +Φ18 KZ1-2 240
21 50CLH-2 570 510 940 2000×310 125 285 2100×260 +Φ23 Φ165 Φ125 +Φ18 KZ2-2 245
22 65CLH-19 400 285 825 1700×230 125 200 1200×180 +Φ18 Φ185 Φ145 +Φ18 SDB14-0.5 140
23 65CLH-13.5 440 360

Note: The description may be different with the product, please contact us for quotation.
