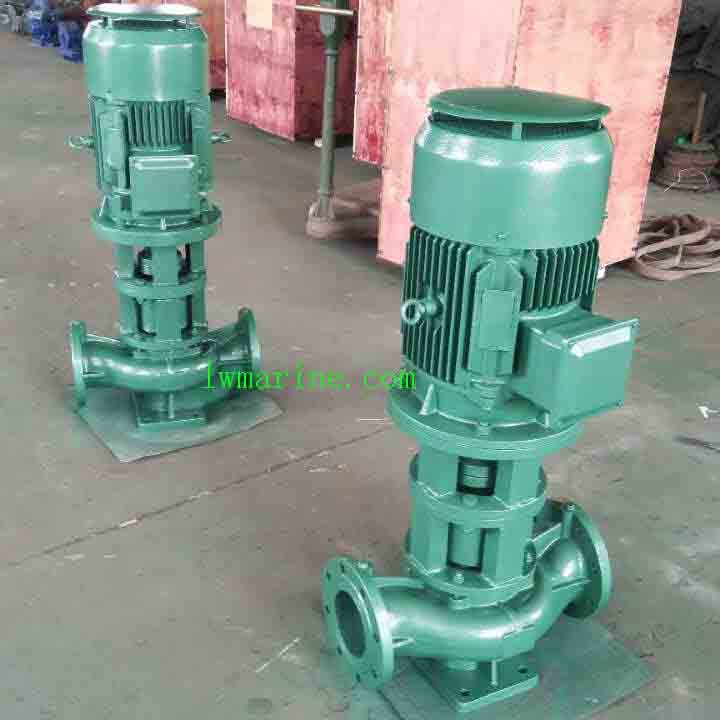

Marine Vertical Centrifugal Fire Pump – Compact & Versatile Water Solutions
Product Overview
The CL Series Marine Vertical Centrifugal Fire Pump delivers reliable performance for essential vessel water systems. Designed with flexible sealing options (mechanical seals or packing gland), these space-saving vertical pumps efficiently handle seawater, freshwater, and other non-corrosive liquids up to 80°C. Ideal for ballast transfer, bilge pumping, engine cooling, and fire protection applications, they provide critical water management capabilities for marine vessels and offshore installations.
Model Identification: 50CL-30 A(B)
-
50: Inlet Diameter (mm)
-
CL: Marine Vertical Centrifugal Pump Series
-
30: Rated Head (m)
-
A(B): First (Second) Stage Impeller Trimming
Key Features & Benefits
-
Dual Sealing Options: Mechanical seals or packing gland for different operational needs
-
Vertical Space-Saving Design: Compact footprint ideal for engine room installations
-
Corrosion-Resistant Construction: Marine-grade materials for seawater operation
-
High-Temperature Capability: Handles fluids up to 80°C
-
Multi-Application Versatility: Serves ballast, bilge, cooling, and firefighting duties
-
Energy-Efficient Operation: Optimized hydraulic performance reduces power consumption
-
Easy Maintenance: Simplified access for inspection and service
Technical Performance Data
*50Hz/2900 RPM Operation:*
-
Flow Range: 20-50 m³/h
-
Head Range: 24-65 meters
-
Motor Power: 3-18.5 kW
*60Hz/3500 RPM Operation:*
-
Flow Range: 21.6-60 m³/h
-
Head Range: 35-93.6 meters
-
Motor Power: 5.5-30 kW
Selected Performance Specifications:
-
50CL-30: 20 m³/h @ 30m | 4 kW motor | 62% efficiency
-
65CL-45: 30 m³/h @ 45m | 7.5 kW motor | 67% efficiency
-
80CL-65: 50 m³/h @ 65m | 18.5 kW motor | 65% efficiency
-
80CL-30: 50 m³/h @ 30m | 7.5 kW motor | 72% efficiency
The description/sizes may be different with goods, please check with us when order.
