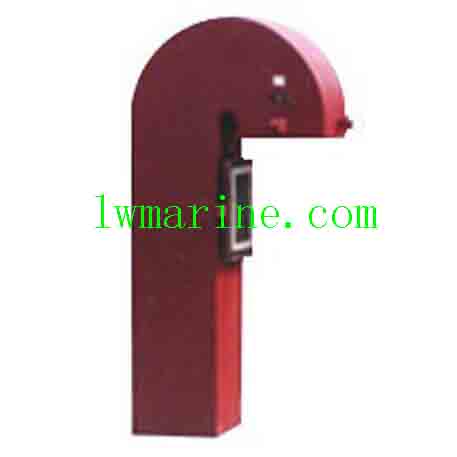

China Marine Gooseneck Ventilator – Ideal for Ocean-Going and River Ships
Product Description:
Our China Marine Gooseneck Ventilator, adhering to the CB/T296-1999 standard, is a premium ventilation solution specifically designed for installation on the exposed decks of ocean-going and river ships. This versatile marine gooseneck ventilator comes in various types, including AA, AB, BA, BB, CA, and CB, each tailored to different air outlet shapes to meet diverse ventilation needs. Notably, when the height (H) exceeds 900mm, a bracket is included to ensure stability and durability.
Key Features:
- Diverse Types: Available in six types (AA, AB, BA, BB, CA, CB) to accommodate different air outlet shapes.
- Robust Construction: Built with high-quality materials to withstand harsh marine environments.
- Easy Installation: Designed for straightforward installation on exposed decks.
- Stable Support: Includes a bracket for models with a height over 900mm for added stability.
- Mouse-Proof Design: Equipped with a mouse-proof screen to prevent pests from entering the ship.
Main Parts:
- Hinge
- Cylinder
- Screw
- Mouse-Proof Screen
- Gland
- M12 Clip
- Packing
- Cover
- Stop Plate
- Bracket (for models with H > 900mm)
Main Size List (mm):
Size of AA, AB:
| Nominal Diameter (DN) | Cylinder Outer Diameter | Lid (t) | Filling (D1, t1) | Press Board (D1, D2) | No. of Bolt (n) | Clip (d) | Weight (kgs) |
|---|---|---|---|---|---|---|---|
| 100 | 108 | 4 | 118, 6 | 118, 48 | 4 | M12 | 20.7 (AA), 17.7 (AB) |
| 114 | … | … | … | … | … | … | 31.9 (AA), 27.4 (AB) |
| … | … | … | … | … | … | … | … |
| 300 | 299 | 7.5 | 309, 6 | 309, 239 | 12 | M12 | 104.3 (AA), 86.6 (AB) |
Size of BA, BB:
| Nominal Diameter (DN) | Cylinder (LXB) | Lid (t, L1XB1, t1) | Filling (L1XB1, L4XB4) | Press Board (L2XB2, L3XB3, L4XB4) | No. of Bolt (n) | Clip (d) | Weight (kgs) |
|---|---|---|---|---|---|---|---|
| 100 | 120X80 | 4, 138X98, 6 | 138X98, 68X28 | 98X58, 83X43, 68X28 | 6 | M12 | 20.9 (BA), 17.9 (BB) |
| 150 | … | … | … | … | … | … | 42.9 (BA), 33.9 (BB) |
| … | … | … | … | … | … | … | … |
| 300 | 300X240 | 6, 328X268, 9 | 328X268, 258X198 | 288X228, 273X213, 258X198 | 14 | M12 | 94.7 (BA), 74.5 (BB) |
Size of CA, CB:
| Nominal Diameter (DN) | Cylinder (LXB) | Lid (t, L1XB1, t1) | Filling (L1XB1, L4XB4) | Press Board (L2XB2, L3XB3, L4XB4) | No. of Bolt (n) | Clip (d) | Weight (kgs) |
|---|---|---|---|---|---|---|---|
| 100 | 120X80 | 4, 138X98, 6 | 138X98, 68X28 | 98X58, 83X43, 68X28 | 6 | M12 | 21.1 (CA) |
| 150 | … | … | … | … | … | … | 55.2 (CA) |
| … | … | … | … | … | … | … | … |
| 400 | 460X290 | 6, 490X320, 10 | 490X320, 420X250 | 450X280, 435X265, 420X250 | 20 | M12 | 154.3 (CA), 244.6 (CB) |
| (Note: Full size specifications are available upon request or detailed in our product catalog.) |
FAQs:
Q1: Can the China Marine Gooseneck Ventilator be installed on any type of ship?
A1: Yes, our marine gooseneck ventilator is designed for versatile installation on the exposed decks of both ocean-going and river ships, ensuring efficient ventilation across different marine environments.
Q2: What are the different types of marine gooseneck ventilators available?
A2: We offer six types of marine gooseneck ventilators: AA, AB, BA, BB, CA, and CB, each tailored to different air outlet shapes to meet diverse ventilation needs.
Q3: Is the installation process complicated for the marine gooseneck ventilator?
A3: No, the installation process is straightforward, and our product comes with clear instructions. Additionally, a bracket is included for models with a height over 900mm to ensure stability during installation.
Q4: How does the marine gooseneck ventilator prevent pests from entering the ship?
A4: Our marine gooseneck ventilator is equipped with a mouse-proof screen that effectively prevents pests such as mice from entering the ship, ensuring a hygienic environment on board.
Q5: What is the warranty period for the China Marine Gooseneck Ventilator?
A5: Our marine gooseneck ventilators come with a standard warranty period, ensuring peace of mind and reliable performance. For specific warranty details, please refer to our product documentation or contact our customer support team.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
