Marine Ventilation Fan

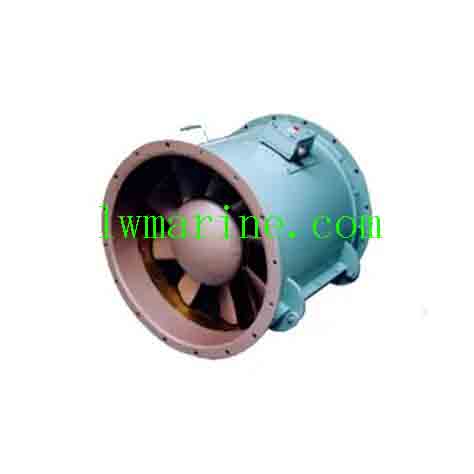

CBZ-I Marine Explosion-Proof Axial Ventilation Fan for Deck Installation

The CBZ-I Marine Explosion-Proof Axial Ventilation Fan is a robust and reliable solution designed specifically for deck installation on marine vessels. This explosion-proof fan adheres to stringent standards including GB11800-89 (marine explosion-proof axial flow fan), GB3836-83 (electrical apparatus for explosive atmospheres, with a “d” type explosion-proof electrical equipment rating), and regulations for the construction and classification of sea-going steel ships. It ensures safe and efficient ventilation in hazardous environments.

Applications:

This versatile explosion-proof fan is engineered to handle the transportation of gas mixtures or vapors containing combustibles and explosives, ordinary air, sea air laden with salt fog, oil-laden air, and other corrosive air supplies or extractions. It is ideally suited for:

• Oil tanks
• Cargo tanks
• Pump rooms
• Battery compartments
• Ammunition storage areas
• Hangars
• Paint houses
• Other ship compartments and corresponding land-based locations

The fan can be equipped with either an AC 50Hz, 380V or 60Hz, 440V marine three-phase asynchronous motor, ensuring compatibility with various power systems.

Structural Types:

1. Type I – Deck Type: Features a hood and an explosion-proof motor mounted on top of the machine frame, with a wide mesh cover (2 mesh/sq in). The fan is vertically fixed on the deck and can be used for both pumping and sending air.
2. Type II – Duct Type: Lacks a hood and incorporates a built-in explosion-proof motor mounted on the housing by downstream guide vanes. It can be installed vertically or horizontally and is also suitable for deck installation.
3. Types III, IV, V – Custom Configurations: Based on customer requirements, these types feature the fan and motor in separate compartments, connected via a driving device, sealed box, and flexible couplings. They are primarily used for exhausting dangerous compartments. Type III can be installed horizontally, while Types IV and V can be vertically fixed on the deck.

Key Features:

• Explosion-Proof Design: Ensures safety in hazardous environments.
• Reliable Operation: Safe and dependable performance under extreme conditions.
• Corrosion-Resistant: Withstands harsh marine environments.
• High Resistance to Oscillation, Vibration, and Shock: Maintains stability and functionality even in rough seas.

Main Parameters:

(Note: The table above includes a few sample rows; the complete table should be included in the actual product description.)

Frequently Asked Questions (FAQs):

Q1: What makes the CBZ-I Marine Explosion-Proof Axial Ventilation Fan suitable for marine environments?
A1: The fan is designed to be corrosion-resistant and capable of withstanding harsh marine conditions, including salt fog and oil-laden air. Its explosion-proof design ensures safety in hazardous environments.

Q2: Can this fan be used in both vertical and horizontal installations?
A2: Yes, depending on the type. Type I is vertically fixed on the deck, while Type II can be installed either vertically or horizontally. Types III, IV, and V offer custom configurations based on specific requirements.

Q3: What are the power options available for this fan?
A3: The fan can be equipped with either an AC 50Hz, 380V or 60Hz, 440V marine three-phase asynchronous motor, ensuring compatibility with various power systems.

Q4: How does the fan handle vibrations and shocks?
A4: The fan is designed to be highly resistant to oscillation, vibration, and shock, ensuring stable and reliable performance even in rough seas.

Q5: What types of gases and vapors can this fan transport?
A5: The fan can transport gas mixtures or vapors containing combustibles and explosives, ordinary air, sea air with salt fog, oil-laden air, and other corrosive air supplies or extractions.
