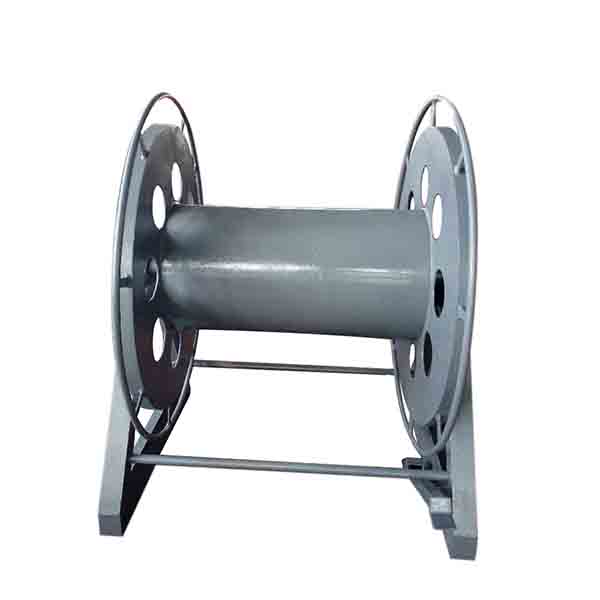

China Marine Steel Wire Mooring Reel | JIS F3430-1980 Certified Ship Rope Storage Reel
Engineered to JIS F3430-1980 standards, this Marine Steel Wire Mooring Reel provides a reliable and organized storage solution for steel wire ropes on all types of vessels. Also known as a ship steel wire rope reel, marine rope reel for mooring, or mooring wire storage drum, this heavy-duty component is manufactured from marine-grade cast steel to withstand harsh ocean environments while keeping your mooring lines secure and easily accessible.
Product Highlights & Key Features:
-
JIS F3430-1980 Certified: Compliant with Japanese industrial standards for marine wire reels
-
Marine-Grade Cast Steel Construction: Superior corrosion resistance and durability for long service life
-
International Marine Certification: Available with ABS, BV, GL and other major classification society certificates
-
Comprehensive Mooring Reel Solutions: We supply all types of wire reels and mooring storage reels
-
Optimized Storage Capacity: Designed specifically for efficient storage of ship steel wire ropes
Technical Specifications:
-
Wire Rope Diameter Range: 13mm – 32mm
-
Storage Capacity: 120-190 meters standard length
-
Application: Storage of ship steel wire ropes on all types of vessels
Detailed Dimensional Data:
| Nominal Size | B (mm) | D (mm) | D1 (mm) | d (mm) | d1 (mm) | L (mm) | L1 (mm) | Winding Capacity | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 35 | 650 | 350 | 700 | 50 | 40 | 800 | 950 | Φ25×200m | 190 |
| 38 | 650 | 380 | 780 | 55 | 45 | 850 | 1000 | Φ28×200m | 215 |
| 40 | 700 | 400 | 850 | 60 | 50 | 900 | 1050 | Φ31.5×200m | 240 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
