MARINE STEEL SOUNDPROOF GASTIGHT DOOR
CB*3217-84
262.YHS-006
USED FOR ENGINE CONTROL ROOM AND SO ON.

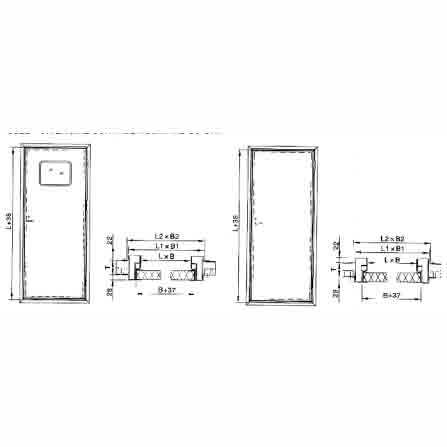

DIMENSION MARKINGS
- L+35
- L2×B2
- L1×B1
- L×B
- B+37
- T
- 22
- 28
- D ≥80
- T+50
PRODUCT SPECIFICATION TABLE
| TYPE | SIZE OF DOORWAY (L×B) | FRAME SIZE (L1×B1) | SIZE OF B.H. OPENING (L2×B2) | D ≥80 | OPENING | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| A | 1650×600 | 1743×693 | 1755×705 | LEFT OUTSIDE (LO) | 68 | |
| AZ | 1750×700 | 1843×793 | 1855×805 | RIGHT OUTSIDE (RO) | 73 | |
| 1650×800 | 1743×893 | 1755×905 | LEFT INSIDE (LI) | 73 | ||
| B | 1650×600 | 1743×693 | 1755×705 | T+50 | RIGHT INSIDE (RI) | 81.5 |
| BZ | 1750×700 | 1843×793 | 1855×805 | 86.5 | ||
| 1650×800 | 1743×893 | 1755×905 | 89.9 | |||
| C | 1650×600 | 1743×693 | 1755×705 | 81.5 | ||
| CZ | 1750×700 | 1843×793 | 1855×805 | 86.5 | ||
| 1650×800 | 1743×893 | 1755×905 | 85 |
TYPE CLASSIFICATION TABLE
表格
| TYPE | DESCRIPTION | APPLICATION SCENARIO |
|---|---|---|
| A | WITHOUT LIGHT | USED FOR SINGLE WALL |
| AZ | WITH DOUBLE LIGHT | |
| B | WITHOUT LIGHT | USED FOR DOUBLE WALLS |
| BZ | WITH DOUBLE LIGHT | |
| C | WITHOUT LIGHT | USED FOR THREE WALLS |
| CZ | WITH DOUBLE LIGHT |
MARKING EXAMPLE
DOORWAY SIZE 1750×700mm, FRAME DEPTH 100, LEFT INSIDE OPENING, DOUBLE WINDOW WITH ONE STEEL WALL AND ONE DECORATIVE WALL FOR STEEL SOUNDPROOF GASTIGHT DOOR
STEEL SOUNDPROOF GASTIGHT DOOR BZ1750×700-100LI CB*3217-84
