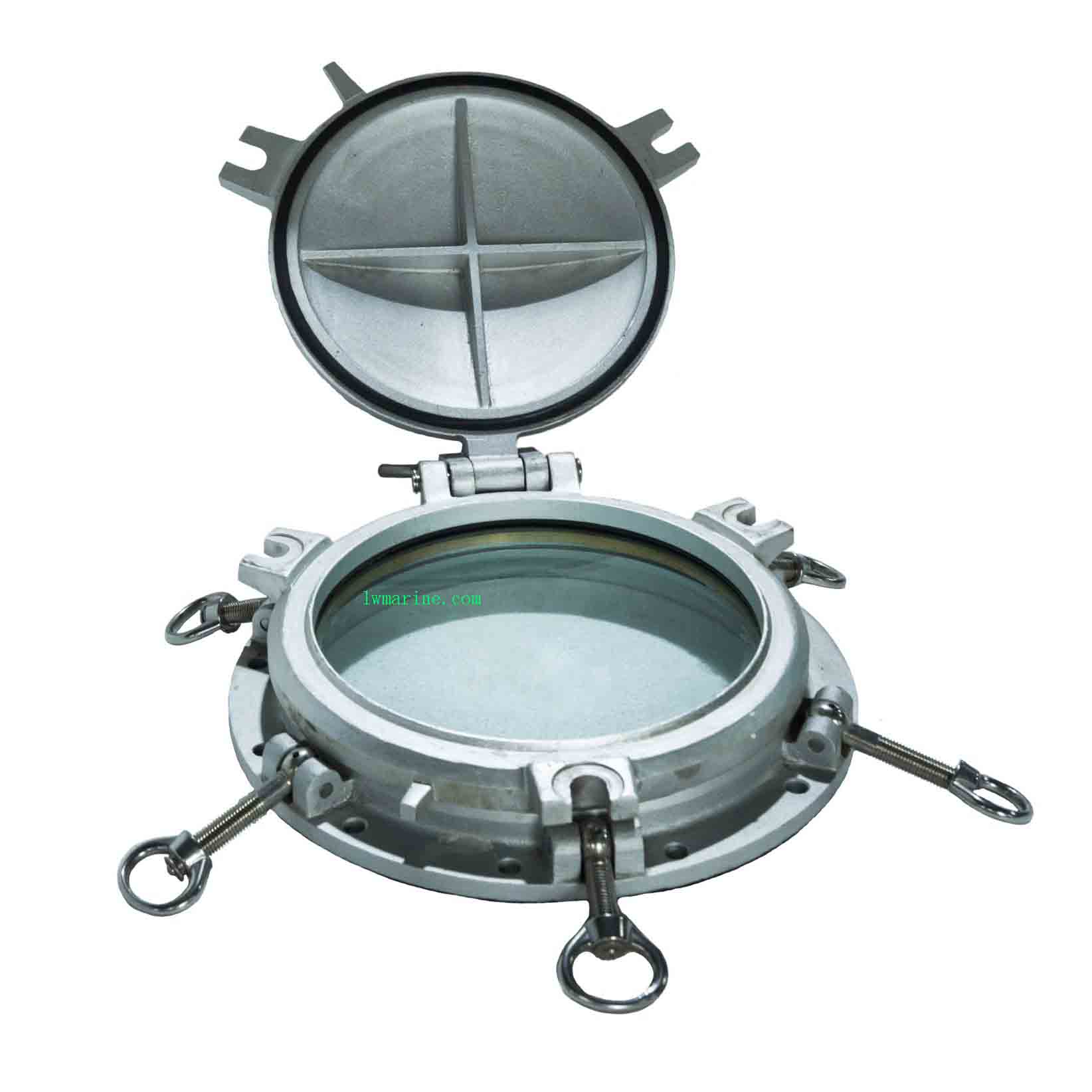

Marine-Grade Steel Side Scuttles – Heavy Duty & Watertight Solutions
Ensure safety, durability, and compliance with our high-performance marine steel side scuttles, designed for sea-going vessels, inland ships, and offshore applications. Available in openable or fixed designs, with optional storm covers and fireproofing, these scuttles meet strict marine safety standards for watertight, gastight, and fire-resistant requirements.
Key Features & Benefits
✔ Multiple Types Available:
-
Heavy Type – For watertight & gastight applications above full load waterline
-
Medium Type – Ideal for cargo vessels above freeboard & first deck
-
Light Type – Perfect for passenger vessels above freeboard
✔ Customizable Configurations:
-
With or Without Storm Cover (Enhanced weather protection)
-
Bolted or Welded Installation (Flexible mounting options)
-
Optional Fireproofing (A0/A60 fire-rated versions available)
✔ Robust Marine-Grade Construction:
-
High-strength steel for corrosion resistance
-
Precision-engineered dimensions for secure sealing
-
Tested for watertight & gastight integrity
Technical Specifications
Standard Dimensions (Heavy & Medium Types)
| Clear Size (D) | D1 | D3 | D4 | D5 | h | gmax | Bolt Size | Qty | Cutout in Steel Wall |
|---|---|---|---|---|---|---|---|---|---|
| Φ200 | Φ245 | Φ250 | Φ350 | Φ310 | 155 | 50 | M16 (12) | 8 | 253 |
| Φ250 | Φ295 | Φ305 | Φ400 | Φ364 | 182 | 47.5 | M16 | 8 | 308 |
| Φ300 | Φ350 | Φ360 | Φ450 | Φ414 | 207 | 45 | M16 | 12 | 363 |
| Φ350 | Φ400 | Φ410 | Φ500 | Φ464 | 232 | 45 | M18 | 12 | 413 |
| Φ400 | Φ450 | Φ460 | Φ550 | Φ514 | 257 | 45 | M18 | 12 | 463 |
| Φ450 | Φ500 | Φ510 | Φ600 | Φ564 | 282 | 45 | M20 | 12 | 513 |
The description/sizes may be different with goods, please check with us when order.
