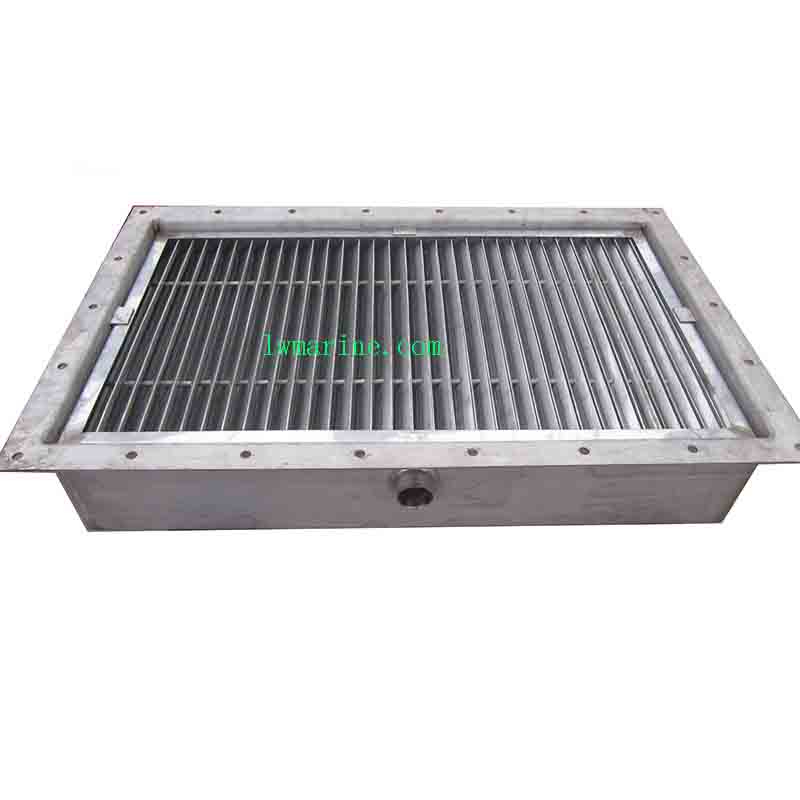

Marine Steel Shutters – Durable & Corrosion-Resistant
Enhance your vessel’s safety and ventilation with our heavy-duty marine steel shutters, designed for superior weather resistance and long-lasting performance. Ideal for shipbuilders, marine engineers, and offshore applications, these shutters ensure optimal airflow while providing robust protection against harsh marine environments.
Product Specifications:
-
Available in Multiple Sizes – Custom-fit for various marine applications
-
Precision Cutout (B1 x H1) – Ensures seamless installation in steel walls
-
Sturdy Louver Design (570-1170mm x 90-100mm x 5mm) – Maximizes ventilation & durability
-
Galvanized Steel Construction – Resists rust, saltwater corrosion, and extreme weather
-
Heavy-Duty Weight (75-130kg) – Reinforced for maximum strength
Standard Sizes & Dimensions:
| Nominal Size (B x H) | Cutout in Steel Wall (B1 x H1) | Louver Leaf Size (L x W x T) | Quantity | Weight (kg) |
|---|---|---|---|---|
| 600 x 850 mm | 605 x 855 mm | 570 x 90 x 5 mm | 6 | 75 |
| 750 x 850 mm | 755 x 855 mm | 720 x 90 x 5 mm | 6 | 87 |
| 750 x 1250 mm | 755 x 1255 mm | 720 x 100 x 5 mm | 10 | 121 |
| 800 x 850 mm | 805 x 855 mm | 770 x 90 x 5 mm | 6 | 94 |
| 800 x 1250 mm | 805 x 1255 mm | 770 x 100 x 5 mm | 10 | 126 |
| 1000 x 850 mm | 1005 x 855 mm | 970 x 90 x 5 mm | 6 | 110 |
| 1200 x 850 mm | 1205 x 855 mm | 1170 x 90 x 5 mm | 6 | 130 |
The description/sizes may be different with goods, please check with us when order.
