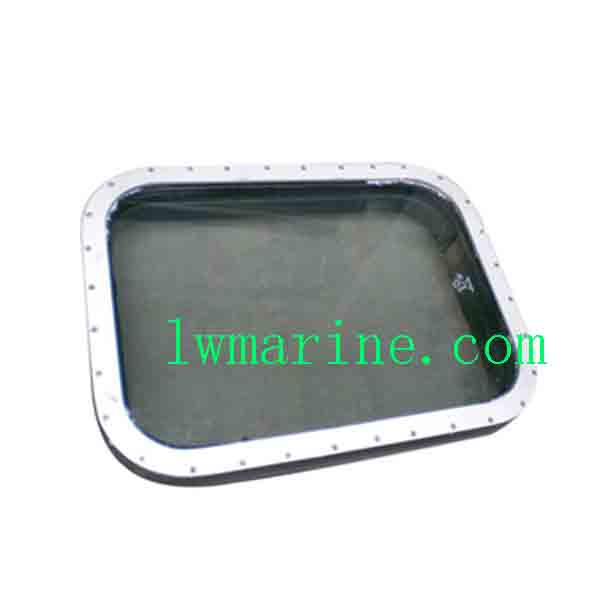

Marine Steel Rectangular Windows – Durable Superstructure Solutions
Heavy-Duty Steel Windows for Ships & Offshore Structures
Our marine-grade steel rectangular windows provide superior durability and weather protection for vessel superstructures. Designed for both aluminum and steel hulls, these versatile windows offer two installation methods to suit different vessel requirements while maintaining structural integrity and watertight performance.
Key Features & Benefits
✔ Dual Installation Options:
-
Welded installation for permanent steel hull integration
-
Bolted installation for aluminum vessels (with sealing gaskets)
✔ Marine-Grade Materials:
-
Hot-dip galvanized steel frames for corrosion resistance
-
Tempered safety glass (6-12mm thickness options)
-
Neoprene gaskets for watertight sealing
✔ Superior Visibility:
-
Large viewing area with slim frame design
-
Low-iron glass options available
-
Tinted variants for glare reduction
Technical Specifications
| Nominal Size (W×H) mm | Cutout in Steel Wall (W1×H1×R) mm | Frame Size (W2×H2) mm | External Size (W3×H3) mm |
|---|---|---|---|
| 300×425 | 352×477×50 | 348×473 | 430×555 |
| 355×500 | 407×552×50 | 403×548 | 485×630 |
| 400×560 | 452×612×50 | 448×608 | 530×690 |
| 450×630 | 502×682×100 | 498×678 | 580×760 |
| 500×710 | 552×762×100 | 548×758 | 630×840 |
| 560×800 | 612×852×100 | 608×848 | 690×930 |
| 900×630 | 952×682×100 | 948×678 | 1030×760 |
| 1000×710 | 1052×762×100 | 1048×758 | 1130×840 |
| 1100×800 | 1152×852×100 | 1148×930 | 1230×930 |
The description/sizes may be different with goods, please check with us when order.
