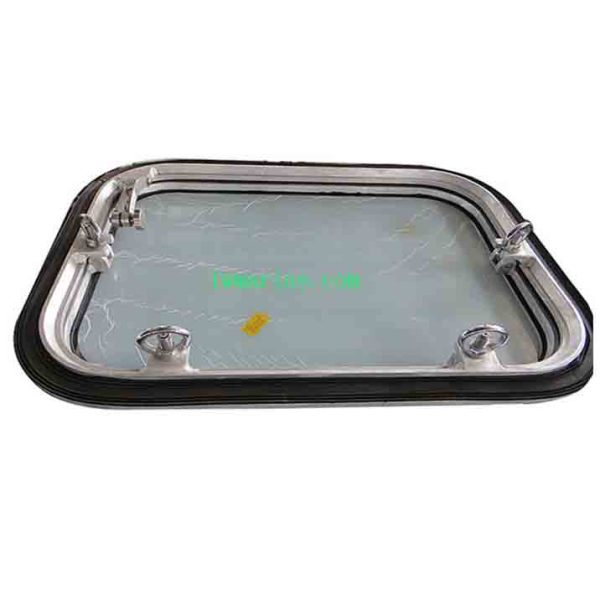

Marine Steel Rectangular Window – Premium Ship Window Solutions
Durable & Customizable Windows for Marine Superstructures
Our Marine Steel Rectangular Window is engineered for superior performance on ship superstructures and deckhouses above the freeboard deck. These windows meet strict international standards (GB/T5746-2001 & ISO3903-1993) and are available with multiple classification society certifications.
Key Features & Benefits
✔ Multiple Installation Types:
-
Bolted type (easy maintenance)
-
Welded type (permanent installation)
✔ Versatile Opening Options:
-
Inward opening (I-type)
-
Outward opening (O-type)
-
Fixed type (NO-type)
✔ Premium Material Choices:
-
Marine-grade steel (standard)
-
Aluminum or brass options
✔ Customization Available:
-
Various sizes (see specifications)
-
Fireproof & heated glass options
-
Multiple hinge configurations
Technical Specifications
Window Types & Codes
| Opening Type | Direction | Hinge Position | Bolted Code | Welded Code | Size Range |
|---|---|---|---|---|---|
| Inward (I) | Side | Left | ILB | ILW | 1-6 |
| Right | IRB | IRW | 1-6 | ||
| Top | – | ITB | ITW | 4-8 | |
| Outward (O) | Side | Left | OLB | OLW | 1-6 |
| Right | ORB | ORW | 1-6 | ||
| Top | – | OTB | OTW | 4-8 | |
| Fixed (NO) | – | – | NOB | NOW | 1-8 |
The description/sizes may be different with goods, please check with us when order.
