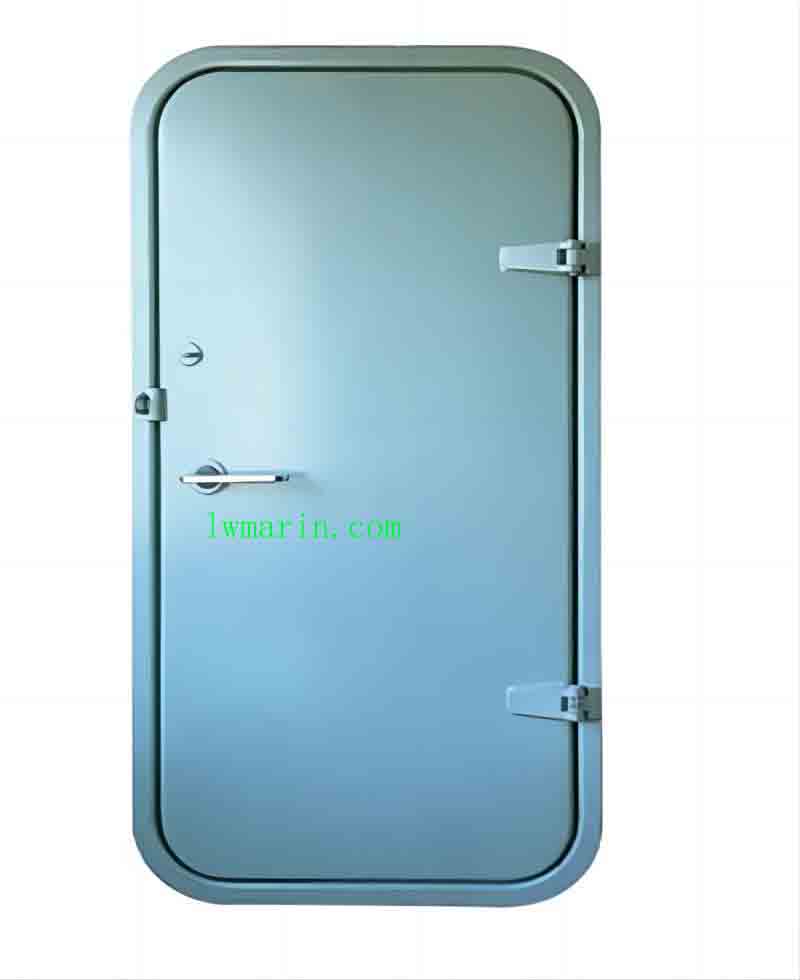

MARINE STEEL DOOR
CB751-68 | 262.YHS-008
APPLICATION: USED FOR WORKING CABIN AND INLAND SHIP

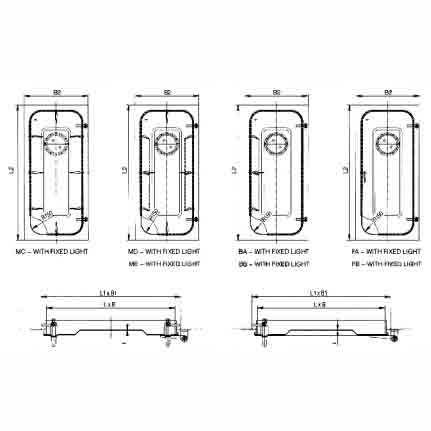

MODEL MARKING DESCRIPTION:
- MC – WITH FIXED LIGHT
- MD – WITH FIXED LIGHT
- ME – WITH FIXED LIGHT
- BA – WITH FIXED LIGHT
- BB – WITH FIXED LIGHT
- FA – WITH FIXED LIGHT
- FB – WITH FIXED LIGHT
DIMENSION MARKING:
L2, B2, L1×B1, L×B, R150, R180
PRODUCT SPECIFICATION TABLE:
表格
| TYPE | NOMINAL SIZE (L×B×R150) | CUTOUT IN STEEL WALL (L1×B1×R180) | EXTERNAL SIZE (L2×B2) | LEAF THICKNESS (T) | QTY OF CLP |
|---|---|---|---|---|---|
| MC | 1500×600 | 1560×660 | 1668×768 | ||
| MD | 1600×700 | 1660×760 | 1768×868 | 4~6 | |
| ME | 1650×600 | 1710×660 | 1818×768 | ||
| BA | 1500×600 | 1560×660 | 1668×768 | 3 | 1~2 |
| BB | 1600×700 | 1660×760 | 1768×868 | ||
| ME | 1650×600 | 1710×660 | 1818×768 | ||
| FA | 1500×600 | 1560×660 | 1668×768 | — | |
| FB | 1600×700 | 1660×760 | 1768×868 | ||
| FB | 1650×600 | 1710×660 | 1818×768 |
IDENTIFICATION EXAMPLE:
STEEL DOOR WITH CLEAR SIZE OF 1700×700
STEEL DOOR 1700×700 262.YHS-008
Note: The description may be different with the product, please contact us for quotation.
