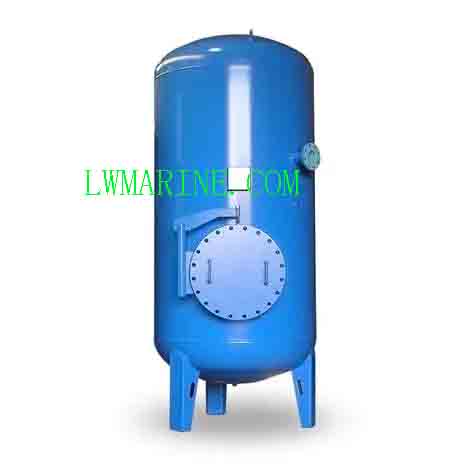

B-Type Marine Starting Air Bottle | High-Pressure Compressed Air Storage Solution for Ships
Overview
The B-Type Marine Starting Air Bottle is a robust, high-capacity compressed air storage tank engineered for demanding maritime applications. Constructed from high-strength marine-grade steel, it resists corrosion and ensures long-term performance under extreme conditions. Ideal for use with pneumatic tools, control systems, air starters, and braking systems on various vessels.
Key Features
-
Superior Sealing Performance: Fully enclosed design prevents external contamination, maintaining air purity and protecting downstream equipment.
-
Extended Service Life: Features a food-grade natural rubber diaphragm rated for over 200,000 cycles, reducing maintenance needs and operational costs.
-
Safe and Reliable: Complies with international marine standards and includes safety valves and pressure gauges. The diaphragm is certified for potable water systems.
-
Flexible Configuration: Available in vertical and horizontal layouts to suit different space and system requirements onboard.
Technical Specifications
| Model | Capacity (m³) | Design Pressure (MPa) | Working Pressure (MPa) | Temperature Range (°C) | Diameter (mm) | Length (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| B0.63-1.0 | 0.63 | 1.1 | 1.0 | 100 | 790 | 1800 | 1400 | 487 |
| B0.8-1.0 | 0.8 | 1.1 | 1.0 | 100 | 700 | 2270 | 1400 | 529 |
| B1.0-1.0 | 1.0 | 1.1 | 1.0 | 100 | 800 | 2209 | 1490 | 695 |
Note: The above models are part of our standard product line. Customized solutions are available upon request.
Applications
Widely used in ship compressed air systems for engine starting, instrument air, pneumatic controls, cleaning, and auxiliary services.
The description/sizes may be different with goods, please check with us when order.
