MARINE STAINLESS STEEL VERTICAL LADDER
264.YHS-003
APPLICATION
USED FOR CABINS, BULKHEAD PASSAGES, MAST COLUMNS AND DECK HOUSES ON VARIOUS SHIPS.
DIMENSION SPECIFICATION TABLE
表格
| L | H1 | H2 | B |
|---|---|---|---|
| REQUIRED BY CUSTOMER | 100, 200 | 100, 200 | 300, 400 |

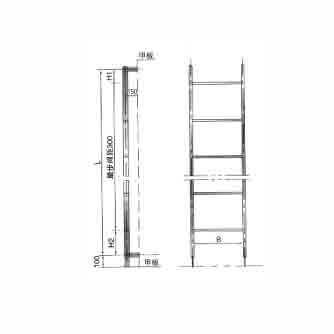

DIMENSION MARKINGS (REFERENCE TO THE DRAWING)
- DECK
- 150
- STEP PITCH 300
- 100
- DECK
MARKING EXAMPLE
STAINLESS STEEL VERTICAL LADDER WITH HEIGHT L=2200mm AND WIDTH B=400mm
STAINLESS STEEL VERTICAL LADDER 2200×400 264.YHS-003
AS INDICATION:
HEIGHT L=2200mm, WIDTH B=400mm FOR STAINLESS STEEL VERTICAL LADDER
STAINLESS STEEL VERTICAL LADDER 2200×400 264.YHS-003
Note: The description may be different with the product, please contact us for quotation.
