Marine-Grade Soundproof Aluminum Windows – Advanced Noise Reduction Solution
Premium Acoustic Windows for Peaceful Marine Environments

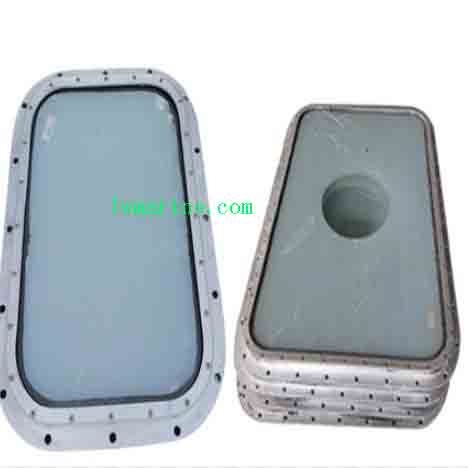

Our marine aluminum soundproof hollow windows are engineered to deliver exceptional noise reduction in demanding marine applications. Featuring multi-layer glass technology, these windows achieve up to 35dB sound insulation, creating quieter, more comfortable spaces on yachts, cruise ships, and commercial vessels.
Key Features & Benefits
✔ Advanced Sound Insulation – 35dB noise reduction for peaceful interiors
✔ Thermal Break Technology – Improved energy efficiency and condensation control
✔ Marine-Grade Aluminum – 6063-T5 alloy frames for superior corrosion resistance
✔ Customizable Configurations – Available in various sizes and glass thicknesses
✔ Watertight Design – IP56-rated seals ensure complete weather protection
Technical Specifications
| Clear Size (W×H) mm | External Size (W1×H1) mm | Cutout Size (W2×H2) mm | Glass Thickness (mm) | Air Gap (mm) | Soundproof (dB) | Weight (kg) |
|---|---|---|---|---|---|---|
| 300×425 | 420×545 | 352×477 | 6+6 | 6 | 29 | 10 |
| 355×500 | 475×620 | 407×552 | 6+6 | 6 | 29 | 16 |
| 400×560 | 520×680 | 452×612 | 6+6 | 6 | 29 | 18 |
| 450×630 | 570×750 | 502×680 | 6+6 | 6 | 31 | 22 |
| 500×710 | 620×830 | 570×830 | 6+6 | 6 | 31 | 29 |
| 900×630 | 1020×750 | 952×782 | 8+12 | 12 | 31 | 34 |
| 1000×800 | 1120×920 | 1052×852 | 8+16 | 16 | 35 | 45 |
| 1200×800 | 1320×920 | 1252×852 | 8+24 | 24 | 34 | 54 |
| 1400×800 | 1520×920 | 1452×852 | 8+24 | 24 | 33 | 59 |
| 1600×1000 | 1720×1120 | 1652×1052 | 8+24 | 24 | 32 | 81 |
| 1800×1200 | 1920×1320 | 1852×1252 | 8+24 | 24 | 31 | 104 |
The description/sizes may be different with goods, please check with us when order.
