Marine sludge discharge pump CGW Series

Marine sludge discharge pump CGW Series

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Marine sludge discharge pump CGW Series

General

CGW Series marine sludge discharge pump is a motor driven upright single channel impeller centrifugal drainage pump (referred to as “sump pump”). The pumps of this series are suitable for transferring sewage, industrial waste water, oily water, fresh water or sea water at a temperature below 85℃, containing solids with a diameter up to one third of that of the pump port, and fibers with a length up to five times that of the ports. They are the best choice for use in conjunction with water treatment plants.

Pump model designation example

  • 50 CGW

  • 25 – 32 – 5.5

    • Matching motor power: 5.5kW

    • Head: 32m

    • Flow: 25m³/h

    • Marine non-clogging pipeline sewage pump

    • Pump inlet/outlet diameter

Main technical parameters
No. Pump Model Port Size Flow (m³/h) Head (m) Power (kW) Speed (r/min) Efficiency (%) Head Application Range
1 20CGW3/6-0.37 20 3 6 0.37 2900 36 3-6
2 25CGW5-10-0.55 25 5 10 0.55 2900 37 7-10
3 25CGW8-22-1.1 25 8 22 1.1 2900 38.5 15-22
4 32CGW12-15-1.1 32 12 15 1.1 2900 40 12-15
5 32CGW8-15-1.1 32 8 15 1.1 2900 39 12-15
6 32CGW10-25-1.5 32 10 25 1.5 2900 42 22-25
7 40CGW15-15-1.5 40 15 15 1.5 2900 45.1 12-15
8 40CGW15-30-2.2 40 15 30 2.2 2900 48 28-30
9 50CGW20-7-0.75 50 20 7 0.75 2900 54 4-7
10 50CGW10-10-0.75 50 10 10 0.75 2900 56 6-10
11 50CGW20-15-1.5 50 15 15 1.5 2900 55 12-15
12 50CGW10-25-2.2 50 10 25 2.2 2900 54 22-25
13 50CGW15-25-2.2 50 15 25 2.2 2900 56 22-25
14 50CGW15-30-3 50 15 30 3 2900 55 26-30
15 50CGW18-30-3 50 18 30 3 2900 58 26-30
16 50CGW20-30-5.5 50 20 30 5.5 2900 57 26-30
17 50CGW25-32-5.5 50 25 32 5.5 2900 53 28-32
18 50CGW20-40-7.5 50 20 40 7.5 2900 55 37-40
19 65CGW25-15-2.2 65 25 15 2.2 2900 52 8-15
20 65CGW37-13-3 65 37 13 3 2900 55 9-13
21 65CGW25-30-4 65 25 30 4 2900 58 26-30
22 65CGW30-40-7.5 65 30 40 7.5 2900 56 36-40
23 65CGW35-50-11 65 35 50 11 2900 60 45-50
24 65CGW35-60-15 65 35 60 15 2900 63 55-60
25 80CGW40-7-2.2 80 40 7 2.2 1450 52 4-7
26 80CGW43-13-3 80 43 13 3 2900 50 7-13
27 80CGW40-15-4 80 40 15 4 2900 57 8-15
28 80CGW50-10-4 80 50 10 4 2900 58 7-10
29 80CGW50-32-7.5 80 50 32 7.5 2900 59 22-32
30 80CGW65-25-7.5 80 65 25 7.5 2900 56 22-25
31 100CGW80-10-4 100 80 10 4 1450 62 4-10
32 100CGW110-10-5.5 100 110 10 5.5 1450 66 5-10
33 100CGW100-15-7.5 100 100 15 7.5 1450 67 7-15
34 100CGW85-20-7.5 100 85 20 7.5 1450 68 13-20
35 100CGW100-25-11 100 100 25 11 1450 65 18-25
36 100CGW100-30-15 100 100 30 15 1450 66 22-30
37 100CGW100-32-15 100 100 32 15 1450 66 22-32
38 100CGW100-35-18.5 100 100 35 18.5 1450 65 30-35
39 125CGW130-15-11 125 130 15 11 1450 62 12-15
40 125CGW130-20-15 125 130 20 15 1450 63 16-20
41 150CGW145-9-7.5 150 145 9 7.5 1450 63 6-9
42 150CGW180-15-15 150 180 15 15 1450 65 10-15
43 150CGW180-20-18.5 150 180 20 18.5 1450 75 10-20
44 150CGW180-25-22 150 180 25 22 1450 76 19-25
45 150CGW130-30-22 150 130 30 22 1450 70 22-30
46 150CGW180-30-30 150 180 30 30 1450 73 25-30
47 150CGW200-32-30 150 200 32 30 1450 73 22-32
48 150CGW200-30-37 150 200 30 37 1450 70 25-30
49 200CGW300-7-11 200 300 7 11 970 73 4-7
50 200CGW250-11-15 200 250 11 15 970 74 7-11
51 200CGW400-10-22 200 400 10 22 1450 76 6-10
52 200CGW400-13-30 200 400 13 30 1450 73 9-13
53 200CGW400-20-30 200 400 20 30 1450 72 14-20
54 200CGW250-15-18.5 200 250 15 18.5 1450 72 11-15
55 200CGW300-15-22 200 300 15 22 1450 73 12-15
56 200CGW250-22-30 200 250 22 30 970 71 18-22
57 200CGW350-25-37 200 350 25 37 1450 75 20-25
58 200CGW400-30-55 200 400 30 55 1450 70 26-30
59 250CGW600-9-30 250 600 9 30 1450 74 5-9
60 250CGW600-12-37 250 600 12 37 1450 78 8-12
61 250CGW600-15-45 250 600 15 45 1450 75 7-15
62 250CGW600-20-55 250 600 20 55 1450 73 15-20
63 250CGW600-25-75 250 600 25 75 1450 73 20-25

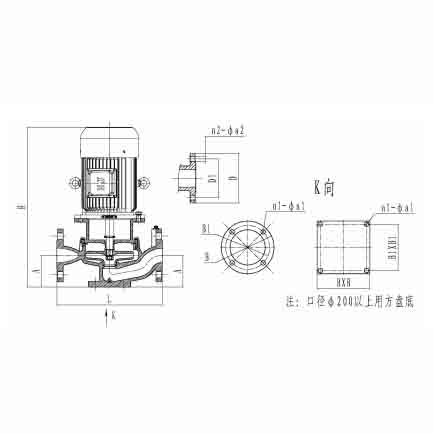

Installation and external dimensions

Note: For port sizes φ200 and above, a square base plate is used.

No. Pump Model A B B1 n1-φa1 D1 D n2-φa2 L H
1 20CGW3-6-0.37 65 100 80 4-φ12 75 105 4-φ14 260 415
2 25CGW5-10-0.55 65 100 80 4-φ12 85 115 4-φ14 260 415
3 25CGW8-22-1.1 110 120 105 4-φ12 60 100 4-φ14 270 430
4 32CGW12-15-1.1 110 120 105 4-φ12 90 120 4-φ14 270 430
5 32CGW18-15-1.1 110 120 105 4-φ12 90 120 4-φ14 270 430
6 32CGW10-25-1.5 120 130 105 4-φ12 100 130 4-φ14 310 470
7 40CGW15-15-1.5 120 130 105 4-φ12 100 130 4-φ14 310 470
8 40CGW15-30-2.2 120 130 105 4-φ12 100 130 4-φ14 310 490
9 50CGW20-7-0.75 130 150 125 4-φ13 110 140 4-φ14 330 500
10 50CGW10-10-0.75 130 150 125 4-φ13 110 140 4-φ14 330 500
11 50CGW20-15-1.5 130 150 125 4-φ13 110 140 4-φ14 330 500
12 50CGW10-25-2.2 130 150 125 4-φ13 110 140 4-φ14 330 510
13 50CGW15-25-2.2 130 150 125 4-φ13 110 140 4-φ14 330 510
14 50CGW15-30-3 130 150 125 4-φ13 110 140 4-φ14 330 560
15 50CGW18-30-3 130 150 125 4-φ13 110 140 4-φ14 330 560
16 50CGW20-30-5.5 140 170 145 4-φ14 110 140 4-φ14 350 620
17 50CGW25-32-5.5 140 170 145 4-φ14 110 140 4-φ14 350 620
18 50CGW20-40-7.5 140 170 145 4-φ14 110 140 4-φ14 350 660
19 65CGW25-15-2.2 140 160 135 4-φ13 130 160 4-φ14 310 500
20 65CGW37-13-3 140 160 135 4-φ13 130 160 4-φ14 310 560
21 65CGW25-30-4 140 160 135 4-φ13 130 160 4-φ14 330 600
22 65CGW30-40-7.5 140 170 145 4-φ14 130 160 4-φ14 350 660
23 65CGW35-50-11 150 200 160 4-φ18 130 160 4-φ14 370 750
24 65CGW35-60-15 150 200 160 4-φ18 130 160 4-φ14 370 800
25 80CGW40-7-2.2 180 200 170 4-φ14 150 190 4-φ18 420 650
26 80CGW43-13-3 160 200 170 4-φ14 150 190 4-φ18 360 610
27 80CGW40-15-4 160 200 170 4-φ14 150 190 4-φ18 360 620
28 80CGW50-10-4 160 200 170 4-φ14 150 190 4-φ18 360 620
29 80CGW50-32-7.5 180 200 170 4-φ14 150 190 4-φ18 420 710
30 80CGW65-25-7.5 180 200 170 4-φ14 150 190 4-φ18 420 710
31 100CGW80-10-4 210 250 220 4-φ18 170 210 4-φ18 540 700
32 100CGW110-10-5.5 225 250 220 4-φ18 170 210 4-φ18 540 750
33 100CGW100-15-7.5 225 250 220 4-φ18 170 210 4-φ18 540 760
34 100CGW85-20-7.5 225 250 220 4-φ18 170 210 4-φ18 540 760
35 100CGW100-25-11 240 280 240 4-φ18 170 210 4-φ18 630 890
36 100CGW100-30-15 260 300 240 4-φ18 170 210 4-φ18 660 910
37 100CGW100-32-15 260 300 240 4-φ18 170 210 4-φ18 690 910
38 100CGW100-35-18.5 260 300 240 4-φ18 170 210 4-φ18 710 910
39 125CGW130-15-11 250 280 240 4-φ18 200 240 4-φ18 650 870
40 125CGW130-20-15 250 280 240 4-φ18 200 240 4-φ18 650 920
41 150CGW145-9-7.5 250 280 240 4-φ18 225 265 4-φ18 850 900
42 150CGW180-15-15 250 320 260 4-φ22 225 265 4-φ18 690 950
43 150CGW180-20-18.5 250 320 260 4-φ22 225 265 4-φ18 690 950
44 150CGW180-25-22 250 320 260 4-φ22 225 265 4-φ18 690 970
45 150CGW130-30-22 260 340 290 4-φ22 225 265 4-φ18 690 970
46 150CGW180-30-30 260 340 290 4-φ22 240 280 4-φ18 690 1020
47 150CGW200-32-30 260 340 290 4-φ22 240 280 4-φ18 690 1020
48 150CGW200-30-37 260 340 290 4-φ22 240 280 4-φ18 690 1040
49 200CGW300-7-11 290 350 300 4-φ22 295 335 4-φ18 800 900
50 200CGW250-11-15 290 350 300 4-φ22 295 335 4-φ18 800 960
51 200CGW400-10-22 290 350 300 4-φ22 295 335 4-φ18 800 1000
52 200CGW400-13-30 290 350 300 4-φ22 295 335 4-φ18 800 1080
53 200CGW400-20-30 290 350 300 4-φ22 295 335 4-φ18 800 1080
54 200CGW250-15-18.5 290 350 300 4-φ22 295 335 4-φ18 800 960
55 200CGW300-14-22 290 350 300 4-φ22 295 335 4-φ18 800 1000
56 200CGW250-22-30 290 350 300 4-φ22 295 335 4-φ18 800 1080
57 200CGW350-25-37 290 350 300 4-φ22 295 335 4-φ18 800 1100
58 200CGW400-30-35 300 360 310 4-φ22 295 335 4-φ18 810 1150
59 250CGW600-9-30 300 380 320 4-φ23 350 390 4-φ18 900 1100
60 250CGW600-12-37 300 380 320 4-φ23 350 390 4-φ18 900 1150
61 250CGW600-15-45 300 380 320 4-φ23 350 390 4-φ18 900 1200
62 250CGW600-20-35 300 380 320 4-φ23 350 390 4-φ18 900 1300
63 250CGW600-25-75 300 380 320 4-φ23 350 390 4-φ18 900 1400

Note: The description may be different with the product, please contact us for quotation.
