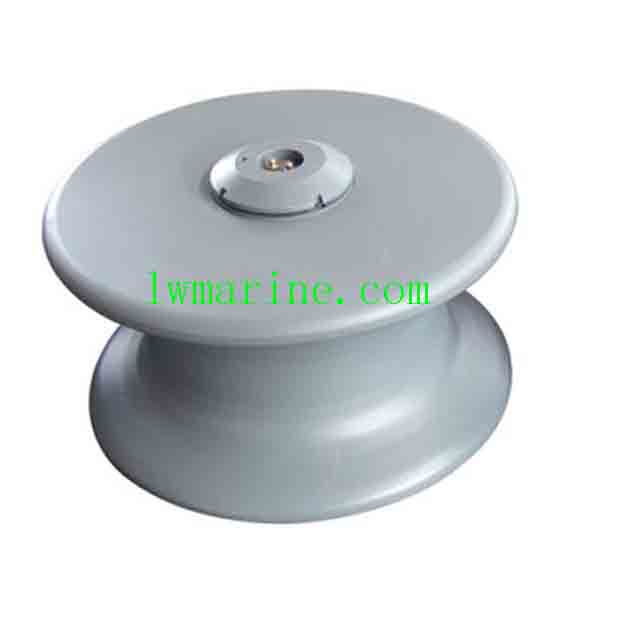

Marine Single Roller Fairlead

JIS F2014-1987 Marine Single Roller Fairlead – Flexible & Modular Rope Guidance Solution

Versatile Marine Single Roller Fairlead Design for Custom Mooring Setups
Our JIS F2014-1987 compliant Single Roller Fairlead offers ultimate flexibility:
✔ Modular Configuration – Combine 2-3 units for optimal rope guidance
✔ Base-Free Design – Enables custom installation arrangements
✔ Certified Quality – CCS, BV and other international certifications
✔ Custom Options – Available in standard or modified specifications

Key Features:
• Roller Diameter Range: 100-450mm
• Premium Cast Steel Construction
• JIS F2014-1987 Standard Compliance
• Smooth Surface Finish to prevent rope damage

Parameters:

Roller	Weight		a	b	C	C1	d	R	D1	H	S	Applicable Dia. Of Rope
Dia.	(kg)											Applicable Dia. Of Rope
(mm)	Cast	Cast										GB1102 Wire Rope			Hemp	Synthetic Fiber Rope
	Iron	Steel										1520N/mm²			Rope
	(HT)	(ZG)										6X24	6X30	6X37
100	9.4	9.9	60	125	8	6	48	30	160	128	3	11	11	11	40	28
150	32.1	33.8	75	190	12	8	71	40	240	211	3	17	17.5	15	45	32
200	64.6	68	85	230	14	10	95	40	310	251	3	22.5	21.5	19.5	55	40
250	108	114	100	265	14	10	107	40	380	298	4	24	26	24	65	45
300	159	168	100	320	16	14	127	60	440	321	4	30	32.5	28	70	50
350	235	248	100	350	18	14	144	60	500	346	4	37.5	39	34.5	75	55
400	336	355	100	380	20	16	161	60	560	371	5	41	39	39	85	65
450	413	462	100	410	20	16	180	60	620	394	5	44.5	47.5	43	95	80
