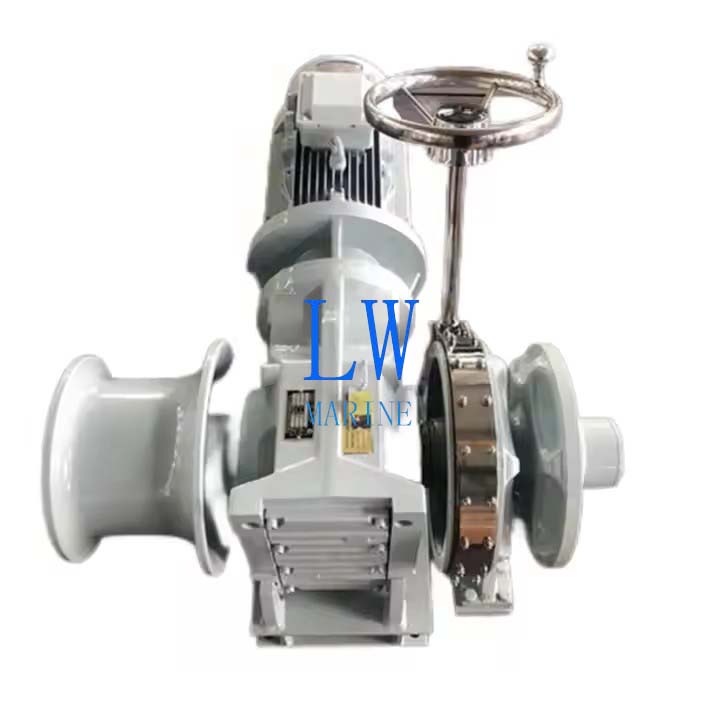

Marine Single Gypsy Windlass
Key Advantages
The Electric Marine Single Gypsy Windlass is a compact and efficient anchoring solution designed for small to medium-sized vessels, offering:
✔ Simplified operation – Ideal for recreational and commercial boats
✔ Single-chain/rope handling – Compatible with Ø10mm-50mm anchor rodes
✔ Space-saving design – Compact footprint for easy deck installation
✔ User-friendly controls – Remote or local operation
Technical Features
| Feature | Specification |
|---|---|
| Chain/Rope Size | Ø10mm-50mm |
| Motor Power | 3-15kW (400V/50Hz) |
| Control Voltage | 24V DC/110V AC |
| Gear Type | Helical (oil-bath) |
| Brake System | Manual (standard) or hydraulic (optional) |
| Main Technical Data Of Windlass | |||||
| Chain Dia. | Mooring Pull | Mooring Speed | Working Load | Working Speed | Motor Power |
| mm | KN | m/min | KN | m/min | kW |
| 14/16/17.5 | 8 | ≥12 | 8.3/10.9/13.0 | ≥9 | 4.3/1.7 |
| 19/20.5/22 | 15 | ≥12 | 15.3/17.9/20.6 | ≥9 | 8.5/3.5 |
| 24/26 | 20 | ≥12 | 24.5/28.7 | ≥9 | 8.5/3.5 |
| 28/30 | 30 | ≥12 | 33.3/38.3 | ≥9 | 11/11/7.5 |
| 32/34/36 | 40 | ≥12 | 43.5/49.1/55.1 | ≥9 | 16/16/11 |
| 38/40/42 | 50 | ≥12 | 61.4/68.0/75.0 | ≥9 | 22/22/16 |
| 44/46/48 | 60 | ≥12 | 82.3/89.9/97.9 | ≥9 | 30/30/22 |
| 50/52/54 | 60 | ≥12 | 106.3/114.9/132.9 | ≥9 | 30/30/22 |
| 56/58/60 | 80 | ≥12 | 133.2/143.0/153.0 | ≥9 | 45/45/30 |
The description/sizes may be different with goods, please check with us when order.
