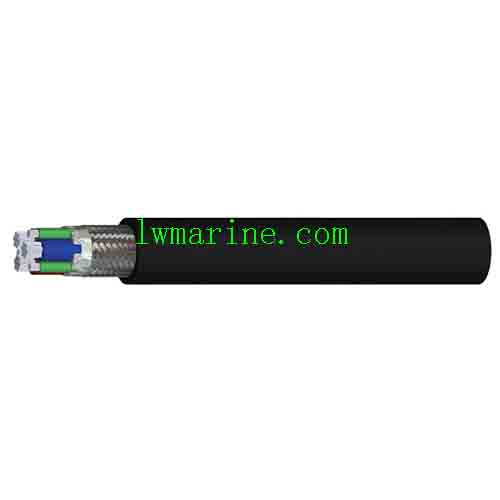

Marine Shipboard Radio Frequency Cable | MIL-C-17 & IEC 60092 Certified Coaxial RF Cable for Radar and Radio Systems
Product Description:
Designed for critical maritime and offshore communications, our Marine Shipboard Radio Frequency Cable is engineered to deliver high-performance signal transmission in demanding marine environments. This robust coaxial cable is ideal for interconnecting high-frequency signal equipment—including radar, radio, navigation, and satellite systems—on ships, oil platforms, and offshore installations. Built to comply with international marine and military standards, it ensures reliable performance under extreme conditions.
Constructed with premium materials including tinned copper, silver-plated copper, or bare copper conductors, foam PE insulation, aluminum foil fire barriers, and single/double braided shielding, this cable offers superior EMI protection, flame retardancy, and extended service life. The low-smoke zero-halogen (LSOH/SHF1) outer sheath enhances safety in enclosed or hazardous spaces.
Applications:
-
Marine radar and radio communication systems
-
Navigation and satellite equipment on vessels and oil platforms
-
Signal transmission in offshore infrastructure
-
Military and commercial shipboard electronic systems
Compliance Standards:
-
MIL-C-17 (RG Series)
-
IEC 60092-359 (Shipboard Cables)
-
IEC 60332-1 (Flame Retardancy)
-
IEC 60754-1/2 (Halogen-Free Gas Emission)
-
IEC 61034 (Smoke Density)
Construction:
-
Conductors: Solid or stranded TC (tinned copper), BC (bare copper), BCW (bare copperweld), SC (silvered copper), SPCCS (silver-plated copper-clad steel)
-
Insulation: Foam PE
-
Fire Barrier: Aluminum foil
-
Shielding: Single or double braid (bare/tinned/silvered copper)
-
Sheath: LSOH (Low Smoke Zero Halogen – SHF1)
Electrical Characteristics:
| Cable Type | Capacitance (pF/m) | Impedance (Ω) | Attenuation (dB/100m) @ Various Frequencies | ||||
|---|---|---|---|---|---|---|---|
| 50MHz | 100MHz | 200MHz | 400MHz | 1000MHz | |||
| RG 178 | 100 | 50 ± 2 | 38 | 52 | 74 | 108 | 170 |
| RG 58 | 100 | 50 ± 2 | 13 | 21 | 34 | 55 | 91 |
| RG 174 | 100 | 50 ± 2 | 21 | 32 | 46 | 82 | 147 |
| RG 213 | 100 | 50 ± 2 | 3 | 7 | 13 | 15 | 29 |
| RG 214 | 100 | 50 ± 2 | 5 | 8 | 13 | 22 | 39 |
| RG 59 | 67 | 75 ± 3 | 10 | 14 | 20 | 29 | 52 |
| RG 223 | 100 | 50 ± 2 | 15 | 21 | 30 | 39 | 68 |
| RG 6 | 52 | 75 ± 3 | 4.6 | 6.4 | 9.0 | 12.8 | 20.8 |
| RG 11 | 53 | 75 ± 3 | 2.8 | 4.1 | 5.9 | 8.5 | 14.3 |
Mechanical & Thermal Properties:
-
Bending Radius (Fixed Installations): 10× Outer Diameter
-
Operating Temperature Range: -30°C to +60°C
-
Impedance Options: 50 Ω and 75 Ω variants available
Physical Specifications:
| Cable Type | Conductor Stranding | Conductor Diameter (mm) | Dielectric Diameter (mm) | Overall Diameter (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| RG 58 CU | 19×0.18 TC | 0.90 | 3.0 | 4.95 | 40 |
| RG 174 AU | 7×0.16 BCW | 0.48 | 1.55 | 2.8 | 10 |
| RG 213 U | 7×0.75 BC | 2.25 | 7.3 | 10.3 | 157 |
| RG 214 U | 7×0.75 SC | 2.25 | 7.3 | 10.8 | 195 |
| RG 178 U | 7×0.10 SPCCS | 0.30 | 0.9 | 1.8 | 7 |
| RG 223 U | 1×0.90 SC | 0.90 | 3.02 | 5.38 | 55 |
| RG 6 | 1×1.0 BC | 1.0 | 4.5 | 7.1 | 80 |
| RG 59 | 1×0.57 BCW | 0.57 | 3.75 | 6.15 | 53 |
| RG 11 | 1×1.6 BC | 1.6 | 7.2 | 10.3 | 135 |
The description/sizes may be different with goods, please check with us when order.
