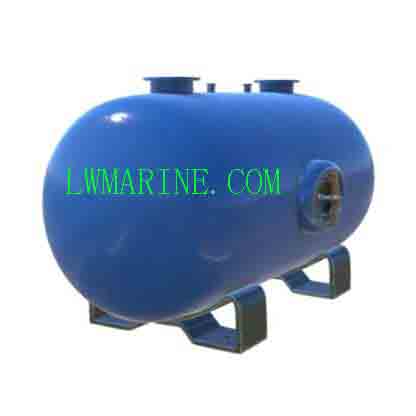

A-Type Marine Service Air Receiver | High-Pressure Compressed Air Storage for Ships
Overview & Applications
The A-Type Marine Service Air Receiver is a high-performance pressure vessel engineered for reliable compressed air storage in marine and offshore environments. Designed to meet stringent marine classification society standards (such as ABS, DNV, GL, and CCS), this robust tank is essential for a wide range of shipboard applications. It provides critical air supply for starting main and auxiliary diesel engines, operating pneumatic tools and control systems, activating air brakes, and running various onboard machinery. Crafted from certified marine-grade steel, it is built to resist corrosion, handle high pressures, and perform reliably in the demanding conditions of the sea.
Key Features & Benefits
-
Superior Sealing Performance: Fully sealed design prevents external contamination, ensuring the stored compressed air remains clean and dry for sensitive shipboard systems.
-
Extended Service Life: Features a durable food-grade natural rubber diaphragm rated for over 200,000 cycles, guaranteeing long-term performance and reducing maintenance needs.
-
Safe for Potable Water Systems: Constructed with certified food-grade materials, making it suitable for use in drinking water and sanitary air systems on vessels.
-
Pressure & Pulsation Stabilization: Acts as a critical buffer to stabilize air pressure, reduce compressor pulsation, and ensure smooth operation of pneumatic equipment.
-
Condensate Separation: Helps in cooling the compressed air and separating moisture, protecting downstream equipment from corrosion and damage.
-
Custom Configuration Support: Available in both horizontal and vertical designs to suit specific space and system layout requirements on any vessel.
Technical Specifications
| Model | Capacity (m³) | Design Pressure (MPa) | Working Pressure (MPa) | Design Temperature (°C) | Internal Diameter (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| A0.05-1.0 | 0.05 | 1.1 | 1.0 | 100 | 350 | 910 | 64 |
| A0.10-1.0 | 0.10 | 1.1 | 1.0 | 100 | 400 | 1280 | 82 |
| A0.16-1.0 | 0.16 | 1.1 | 1.0 | 100 | 400 | 1650 | 110 |
| A0.25-1.0 | 0.25 | 1.1 | 1.0 | 100 | 500 | 1660 | 177 |
| A0.40-1.0 | 0.40 | 1.1 | 1.0 | 100 | 600 | 1950 | 236 |
Ideal For Use On:
Commercial ships, container vessels, oil tankers, bulk carriers, offshore support vessels (OSV), passenger cruises, naval ships, and fishing fleets.
The description/sizes may be different with goods, please check with us when order.
