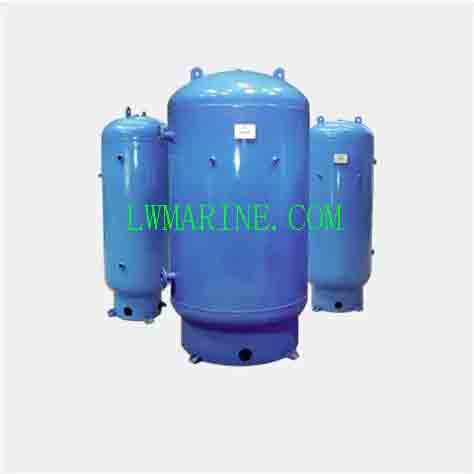

A0.05-3.0 Marine Service Air Bottle | Compressed Air Storage Vessel
High-Pressure Marine Air Receiver for Shipboard Compressed Air Systems
The A0.05-3.0 Marine Service Air Bottle is an essential compressed air storage solution designed for marine applications. This class-approved pressure vessel works in conjunction with marine air compressors to provide stable, reliable compressed air for critical shipboard operations including main engine starting, pneumatic tools, and control systems.
Key Features & Benefits
✔ Zero Contamination Design – Excellent sealing properties prevent air quality degradation
✔ Extended Service Life – Food-grade natural rubber diaphragm rated for 200,000+ cycles
✔ Drinking Water Safe – Certified materials suitable for potable air systems
✔ Pulsation Dampening – Reduces pressure fluctuations for improved system performance
✔ Marine-Grade Construction – Corrosion-resistant materials for harsh marine environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | A0.05-3.0 |
| Capacity | 0.05 m³/h |
| Design Pressure | 3.3 MPa |
| Working Pressure | 3.0 MPa |
| Design Temperature | 100°C |
| Internal Diameter | 350 mm |
| Height | 910 mm |
| Weight | 74 kg |
Applications & Uses
Primary Marine Applications:
-
Main engine starting systems
-
Pneumatic tool operation
-
Control air systems
-
Instrumentation air supply
-
Emergency system activation
System Benefits:
-
Stabilizes compressed air pressure
-
Reduces compressor cycling frequency
-
Provides emergency air reserve
-
Improves overall system efficiency
The description/sizes may be different with goods, please check with us when order.
