CXZ Series Marine Self-Priming Vortex Pump: The Ultimate Solution for Marine Water Systems
The CXZ Series Marine Self-Priming Vortex Pump is expertly engineered to deliver reliable self-priming performance for a wide range of marine water applications. Whether you need to distribute potable water for drinking and cooking, supply sanitary water for washing and bathing, manage general freshwater services, or handle seawater for non-potable uses, the CXZ Series has you covered. Its robust design ensures consistent and efficient operation, making it an indispensable component of any marine water system.
Key Features for Enhanced Performance
- Self-Priming Capability: Eliminates the need for manual priming, saving time and effort during installation and operation.
- Versatile Applications: Suitable for potable water distribution, sanitary water supply, general freshwater services, and seawater applications.
- High Efficiency: Designed to maximize water flow while minimizing energy consumption, ensuring cost-effective operation.
- Durable Construction: Built to withstand the harsh marine environment, ensuring long-lasting performance and reliability.
Technical Parameters for Precise Selection
| Type | Head (m) | Speed (r/min) | Shaft Power (kw) | (NPSH)r (m) | Motor Power (kw) | Suction Head (m) | Capacity (m³/h) | Efficiency (l/s) | Unit Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 20CXZ-35 | 35 | 2900 | 0.43 | 7 | 0.75 | 3 | 1 | 0.3 | 20 |
| 32CXZ-25 | 28 | 2900 | 1.48 | 7 | 1.5 | 3 | 3.5 | 1 | 18 |
| 32CXZ-40 | 40 | 2900 | 1.82 | 6 | 2.2 | 4 | 3 | 0.8 | 18 |
| 40CXZ-30 | 30 | 2900 | 2.54 | 6 | 4 | 4 | 9 | 2.5 | 29 |

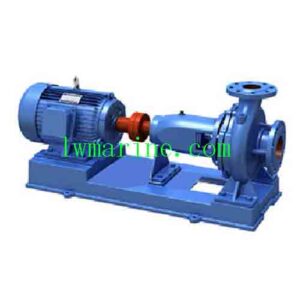

CWX Series Marine Horizontal Self-Priming Centrifugal Vortex Water Pump: Compact and Efficient for Marine Use
Product Description
The CWX Series Marine Horizontal Self-Priming Centrifugal Vortex Water Pump is designed to meet the demanding requirements of marine water pumping applications. With its simple structure, small volume, and light weight, it offers significant advantages in ship installations. The pump is capable of handling water liquid temperatures up to 60°C and features self-priming ability or can achieve self-priming with a simple device, ensuring hassle-free operation.
Key Features for Optimal Performance
- Compact Design: Small volume and light weight make it easy to install and integrate into existing marine water systems.
- Self-Priming Functionality: Eliminates the need for external priming devices, simplifying installation and maintenance.
- High-Temperature Resistance: Capable of handling water liquid temperatures up to 60°C, making it suitable for various marine applications.
- Efficient Operation: Designed to deliver consistent water flow with minimal energy consumption, ensuring cost-effective performance.
Technical Parameters for 50HZ and 60HZ Operation
50HZ Main Technical Parameters
| Type | Capacity (m³/h) | Head (m) | Speed (r/min) | NPSHR (m) | Shaft Power (kw) | Motor Power (kw) |
|---|---|---|---|---|---|---|
| 1.5CWX-2 | 3 | 40 | 2900 | 4 | 2 | 2.2 |
| 1.5CWX-3 | 6.5 | 35 | 2900 | 4 | 2.3 | 3 |
| 1.5CWX-4 | 10 | 35 | 2900 | 4 | 2.5 | 4 |
| 1.5CWX-2A | 3 | 40 | 2900 | 4 | 2 | 2.2 |
| 1.5CWX-3A | 6.5 | 35 | 2900 | 4 | 2.3 | 3 |
| 1.5CWX-4A | 10 | 35 | 2900 | 4 | 2.5 | 4 |
60HZ Main Technical Parameters
| Type | Capacity (m³/h) | Head (m) | Speed (r/min) | NPSHR (m) | Shaft Power (kw) | Motor Power (kw) |
|---|---|---|---|---|---|---|
| 1.5CWX1-2 | 3.6 | 57 | 3500 | 4.5 | 3.43 | 4 |
| 1.5CWX1-3 | 7.8 | 50 | 3500 | 4.5 | 3.95 | 5.5 |
| 1.5CWX1-4 | 12 | 50 | 3500 | 4.5 | 4.29 | 5.5 |
| 1.5CWX1-2A | 3.6 | 57 | 3500 | 4.5 | 3.43 | 4 |
| 1.5CWX1-3A | 7.8 | 50 | 3500 | 4.5 | 3.95 | 5.5 |
| 1.5CWX1-4A | 12 | 50 | 3500 | 4.5 | 4.29 | 5.5 |
FAQs for Informed Decision-Making
- Q: What are the main advantages of using a self-priming vortex pump in marine applications?
- A: Self-priming vortex pumps eliminate the need for manual priming, saving time and effort during installation and operation. They also offer versatile applications, high efficiency, and durable construction, making them ideal for marine water systems.
- Q: Can the CWX Series pump handle high-temperature water?
- A: Yes, the CWX Series pump is designed to handle water liquid temperatures up to 60°C, making it suitable for various marine applications that require high-temperature water pumping.
- Q: How does the compact design of the CWX Series pump benefit ship installations?
- A: The compact design of the CWX Series pump, with its small volume and light weight, makes it easy to install and integrate into existing marine water systems, saving valuable space on board.
- Q: What is the difference between 50HZ and 60HZ operation for the CWX Series pump?
- A: The main difference lies in the speed and performance parameters. 60HZ operation offers higher speed and head compared to 50HZ, making it suitable for applications that require greater water flow and pressure.
- Q: How can I ensure the longevity of my marine self-priming vortex pump?
- A: Regular maintenance, including checking for leaks, cleaning the pump, and lubricating moving parts, can help ensure the longevity of your marine self-priming vortex pump. Additionally, following the manufacturer’s guidelines for operation and storage can further extend its service life.
The description/sizes may be different with goods, please check with us when order.
