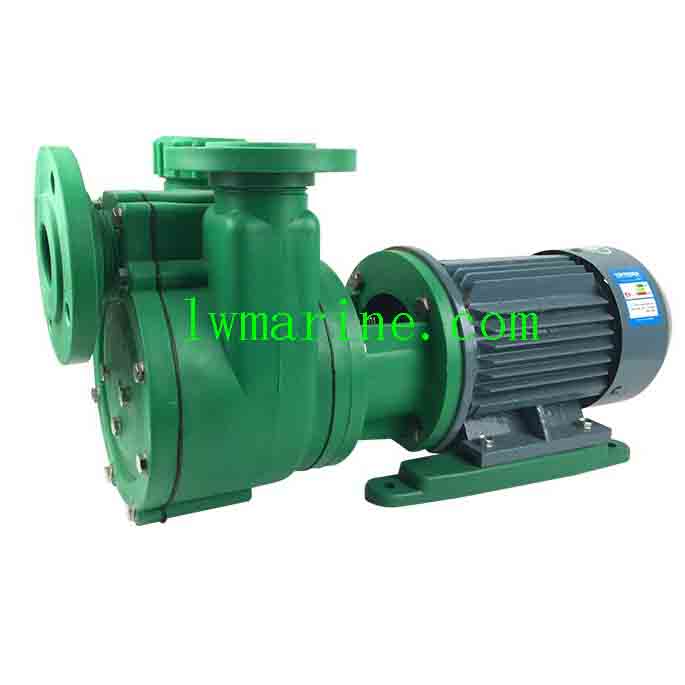

Marine Self – Priming Pumps CBZ Series
The CBZ series of marine self – priming pumps is meticulously designed and engineered to excel in fluid transfer applications on various types of vessels. These pumps are highly versatile and can effectively handle a range of fluids, including:
- Fresh water: Whether it’s for providing potable water to the crew on board or for general freshwater circulation within the vessel’s systems, these pumps ensure a reliable and consistent supply.
- Sea water: Given the marine environment, the ability to handle sea water is crucial. The CBZ series pumps are corrosion – resistant and can efficiently transfer sea water for different purposes such as ballast water management and cooling systems.
- Other water – like liquids with similar viscosity and density characteristics: In addition to fresh and sea water, these pumps can also handle other water – based liquids that have comparable physical properties, expanding their range of applications.
Operating Parameters
- Maximum fluid temperature: The pumps can withstand a maximum fluid temperature of 80°C (176°F), making them suitable for handling fluids at relatively high temperatures without compromising performance or causing damage.
- Suction and discharge operations: They are well – suited for both suction and discharge operations, allowing for flexible fluid transfer within the vessel’s systems. Whether it’s drawing fluid from a storage tank or pumping it out to another location, these pumps can handle the task efficiently.
- Continuous duty cycle applications: Ideal for continuous operation, these pumps can run for extended periods without overheating or experiencing significant performance degradation. This makes them reliable for long – term fluid transfer requirements on board vessels.
Primary Marine Applications
Vessel Water Management Systems
- Potable water supply: The CBZ series pumps play a vital role in ensuring a steady supply of clean and safe drinking water to the crew and passengers on the vessel. Their reliable performance guarantees that there is always an adequate amount of potable water available.
- Ballast water transfer: Ballast water is essential for maintaining the stability and balance of a vessel. These pumps can efficiently transfer ballast water, allowing for precise control of the vessel’s buoyancy and stability in different sea conditions.
- Bilge water discharge: Bilge water, which accumulates at the bottom of the vessel, often contains oil, grease, and other contaminants. The CBZ series pumps can effectively discharge bilge water, helping to keep the vessel clean and in compliance with environmental regulations.
- Firefighting system support: In case of a fire emergency on board, these pumps can provide the necessary water pressure and flow rate to support the vessel’s firefighting system, ensuring the safety of the crew and the vessel.
Deck and Service Operations
- Anchor wash systems: To keep the anchor clean and free from marine growth, an anchor wash system is required. The CBZ series pumps can supply the high – pressure water needed for effective anchor washing, ensuring the anchor functions properly when deployed.
- Deck cleaning: Maintaining a clean deck is important for both safety and aesthetics. These pumps can provide the water flow and pressure required for efficient deck cleaning, removing dirt, debris, and salt deposits.
- Tank cleaning operations: Over time, tanks on board vessels can accumulate sediment and contaminants. The CBZ series pumps can be used to circulate cleaning agents or water within the tanks, facilitating thorough tank cleaning and ensuring the quality of the stored fluids.
Marine Self – Priming Pumps: Detailed Parameter Table
| Model | Speed (r/min) | Power (kw) | Allowable Suction Height (m) | Capacity Q (m³/h) | Head H (m) | Efficiency (%) | Weight (Kg) | Motor Model |
|---|---|---|---|---|---|---|---|---|
| 32CBZ – 21 | 2950 | 1.5 | 5 | 8 | 21 | 35 | 50 | Y90S – 2H |
| 32CBZ – 30 | 2950 | 2.2 | 5 | 8 | 30 | 36 | 55 | Y90L – 2H |
| 32CBZ – 42 | 2950 | 4 | 5 | 8 | 42 | 38 | 73 | YI12M – 2H |
| 40CBZ – 20 | 2880 | 1.5 | 5 | 12 | 20 | 58 | 69 | Y90S – 2H |
| 40CBZ – 21 | 2950 | 2.2 | 5 | 12 | 21 | 35 | 69 | Y90L – 2H |
| 40CBZ – 32 | 2900 | 2.2 | 5 | 6.5 | 32 | 40 | 69 | Y90L – 2H |
| 40CBZ – 30 | 2950 | 3 | 5 | 12 | 30 | 40 | 83 | Y100L – 2H |
| 40CBZ – 42 | 2950 | 4 | 5 | 12 | 42 | 40 | 93 | Y112M – 2H |
| 50CBZ – 21 | 2950 | 3 | 5 | 21 | 21 | 45 | 79 | Y100L – H |
| 50CBZ – 30 | 2950 | 4 | 5 | 21 | 30 | 45 | 103 | YI12M – 2H |
| 50CBZ – 32 | 2900 | 4 | 7 | 20 | 32 | 65 | 110 | Y112M – 2H |
| 50CBZ – 35 | 2900 | 4 | 7 | 14 | 35 | 55 | 110 | YU2M – 2H |
| 50CBZ – 42 | 2950 | 5.5 | 5 | 21 | 42 | 55 | 116 | Y132S1 – 2H |
| 65CBZ – 21 | 2950 | 4 | 5 | 36 | 21 | 56 | 93 | Y1I2M – 2H |
| 65CBZ – 42 | 2900 | 11 | 6 | 36 | 42 | 57 | 210 | Y160M1 – 2H |
| 65CBZ – 30 | 2900 | 5.5 | 6.5 | 36 | 30 | 63 | 168 | Y132S1 – 2H |
| 65CBZ – 50 | 2900 | 7.5 | 6.5 | 24 | 50 | 56 | 160 | Y132S2 – 2H |
| 65CBZ – 60 | 2950 | 15 | 6 | 36 | 60 | 56 | 195 | Y160M2 – 2H |
| 80CBZ – 21 | 2950 | 7.5 | 5.5 | 60 | 21 | 57 | 170 | Y132S2 – 2H |
| 80CBZ – 30 | 2900 | 7.5 | 6 | 50 | 30 | 68 | 168 | Y132S2 – 2H |
| 80CBZ – 42 | 2900 | 15 | 5 | 60 | 42 | 55 | 207 | Y160M2 – 2H |
| 80CBZ – 50 | 2900 | 15 | 6 | 30 | 50 | 58 | 230 | Y160M2 – 2H |
| 8OCBZ – 55 | 2900 | 18.5 | 6 | 60 | 55 | 54 | 248 | YI60L1 – 2H |
| 80CBZ – 60 | 2950 | 22 | 6 | 60 | 60 | 54 | 280 | Y180M – 2H |
| 8OCBZ – 65 | 2900 | 18.5 | 6 | 48 | 65 | 63 | 253 | Y160L – 2H |
| 80CBZ – 70 | 2900 | 30 | 6 | 60 | 70 | 63 | 315 | Y200L1 – 2H |
| 80CBZ – 75 | 2950 | 30 | 6 | 60 | 75 | 60 | 360 | Y200L1 – 2H |
| 80CBZ – 25 | 1450 | 5.5 | 7 | 25 | 25 | 58 | 320 | Y132S – 4H |
| 100CBZ – 20 | 2900 | 11 | 6 | 90 | 20 | 73 | 240 | Y160M1 – 2H |
| 100CBZ – 21 | 2950 | 11 | 5 | 100 | 21 | 65 | 280 | YI60MI – 2H |
| 100CBZ – 30 | 2900 | 15 | 5 | 100 | 30 | 68 | 252 | Y160M2 – 2H |
| 100CBZ – 40 | 2900 | 18.5 | 5 | 90 | 40 | 72 | 265 | Y160L – 2H |
| 100CBZ – 42 | 2950 | 22 | 4.5 | 100 | 42 | 62 | 315 | Y180M – 2H |
| 100CBZ – 50 | 2900 | 18.5 | 5.5 | 60 | 50 | 68 | 290 | Y160L – 2H |
| 100CBZ – 60 | 2950 | 37 | 5 | 100 | 60 | 66 | 296 | Y200L2 – 2H |
| 100CBZ – 65 | 2900 | 30 | 5.5 | 100 | 65 | 70 | 296 | Y200LI – 2H |
| 100CBZ – 80 | 2900 | 37 | 5.5 | 100 | 80 | 70 | 456 | Y200L2 – 2H |
| 100CBZ – 85 | 2950 | 55 | 5 | 100 | 85 | 67 | 500 | Y250M – 2H |
| 125CBZ – 32 | 2950 | 30 | 5 | 160 | 32 | 67 | 421 | Y200L1 – 2H |
| 125CBZ – 60 | 2900 | 37 | 6 | 120 | 60 | 72 | 480 | Y200L2 – 2H |
| 125CBZ – 50 | 2900 | 30 | 5.5 | 120 | 50 | 72 | 420 | Y200L1 – 2H |
| 125CBZ – 20 | 1450 | 18.5 | 5 | 160 | 20 | 72 | 420 | Y180M – 4H |
| 150CBZ – 20 | 1450 | 18.5 | 5 | 200 | 20 | 75 | 480 | Y180M – 4H |
| 150CBZ – 30 | 1450 | 37 | 7 | 200 | 30 | 70 | 490 | Y225S – 4H |
| 150CBZ – 45 | 1450 | 45 | 7 | 200 | 45 | 70 | 510 | Y225M – 4H |
| 150CBZ – 40 | 2900 | 30 | 5 | 150 | 40 | 72 | 480 | Y200L1 – 2H |
| 200CBZ – 14 | 1450 | 18.5 | 7 | 250 | 14 | 72 | 480 | YI80M – 4H |
| 200CBZ – 45 | 1450 | 75 | 7 | 300 | 45 | 71 | 720 | Y280S – 4H |
| 250CBZ – 55 | 1450 | 110 | 5 | 450 | 55 | 72 | 844 | Y315S – 4H |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
