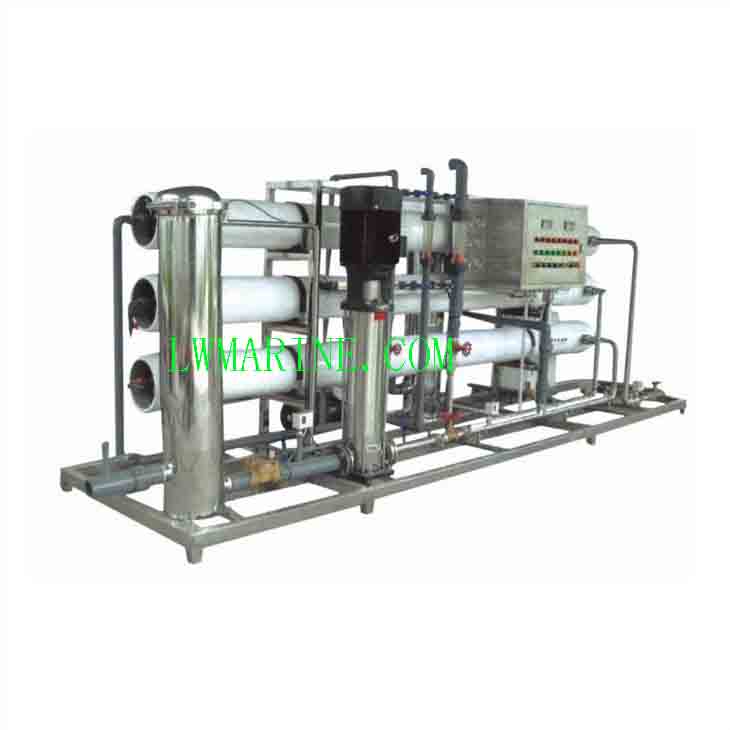

Marine Sea Water Desalination Plant

Marine Sea Water Desalination Plant | Reverse Osmosis System for Fresh Water Production Onboard

Advanced Reverse Osmosis Technology for Reliable Marine Freshwater Generation

Our Marine Sea Water Desalination Plant utilizes cutting-edge reverse osmosis membrane technology to efficiently convert seawater into high-quality drinking water that meets stringent national standards (GB5749-2006). Designed specifically for marine environments, this system effectively removes minerals, organisms, bacteria, and other impurities from seawater, producing clean, odor-free freshwater ideal for drinking and culinary use aboard vessels and coastal installations.

Engineered with durability and efficiency in mind, our desalination plant features fully automated operation, corrosion-resistant construction, and intelligent monitoring systems—ensuring reliable performance and minimal maintenance in challenging marine conditions.

Key System Components & Features:

1. Advanced Pretreatment System

Multi-Media Filter: Ø350×1410mm vessel removes algae, suspended solids, and metallic particles
Automatic Backwashing: Ensures consistent filtration performance without manual intervention
Dual-Stage Precision Filtration: 10μm winding wire + 5μm PP filter cartridges provide ultimate membrane protection

2. High-Efficiency Reverse Osmosis System

High-Pressure Pump: SS316 construction, 4 m³/h capacity, 30m head
RO Membrane Array: Advanced elements with ≥99.5% salt rejection rate
Automated Chemical Cleaning: Integrated CIP system maintains membrane performance

3. Intelligent Control & Monitoring

Schneider Electrical Components: Premium reliability for marine applications
PLC Control System: Fully automated operation with manual override capability
Real-Time Monitoring: Continuous measurement of flow, pressure, and water quality parameters

Technical Specifications:

Model	HS-FSHB-10	HS-FSHB-20	HS-FSHB-30	HS-FSHB-40	HS-FSHB-50	HS-FSHB-60
Production Capacity	10 m³/D	20 m³/D	30 m³/D	40 m³/D	50 m³/D	60 m³/D
Raw Water Salinity	≤40,000 mg/L	≤36,000 mg/L	≤36,000 mg/L	≤36,000 mg/L	≤36,000 mg/L	≤36,000 mg/L
Product Water TDS	≤700 mg/L	≤700 mg/L	≤500 mg/L	≤700 mg/L	≤700 mg/L	≤700 mg/L
Operating Pressure	<6.5 MPa	<6.5 MPa	<6.5 MPa	<6.5 MPa	<6.5 MPa	<6.5 MPa
Power Supply	380V/50Hz/3-phase (Other voltages available)
Environment Temp	0～45℃

Key Benefits:

Energy Efficient Design: Optimized RO technology reduces power consumption
Corrosion-Resistant Construction: All wetted parts in SS316 and marine-grade materials
Fully Automated Operation: Minimal crew intervention required
Comprehensive Protection: Automatic shutdown for high/low pressure conditions
Easy Maintenance: Quick-access components and automated cleaning systems
Compact Footprint: Space-saving design ideal for vessel installation

Certification & Compliance:
Our Sea Water Desalination Plants are designed to meet international marine standards and are certifiable by all major classification societies including:
