MARINE RUBBER AIRBAGS

Features

Good air tightness: air leak rate less than 3% in 1 hour after reaching decompression pressure.
Long lifespan: can serve for more than 12 years.
Save invest: easy storage and transport.
Professional team: keep research and development, rich engineering experience.
Guaranteed after-sale service: 12 months.

Characteristics

Good air tightness: After reaching decompression pressure, the air pressure drops by less than 3% in 1 hour.
Long service life: Can be used cyclically for more than 12 years.
Low cost: Saves investment and is convenient for storage and transportation.
Professional team: Strong R&D team and experienced engineering team.
After-sales service guarantee: 12 months.

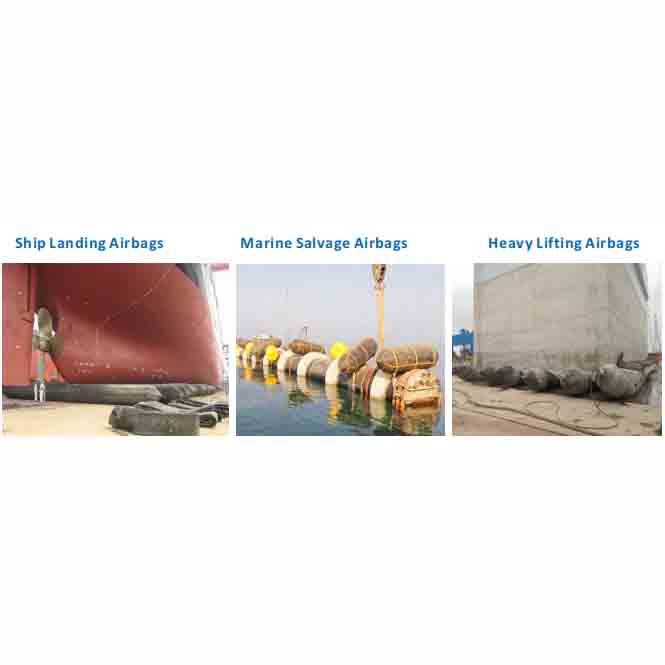

Applications

Rubber airbags for ship launching & docking
Rubber airbags for heavy objects transportation
Rubber airbags for marine salvage
Rubber airbags for leaking stoppage
Rubber airbags – air cushion

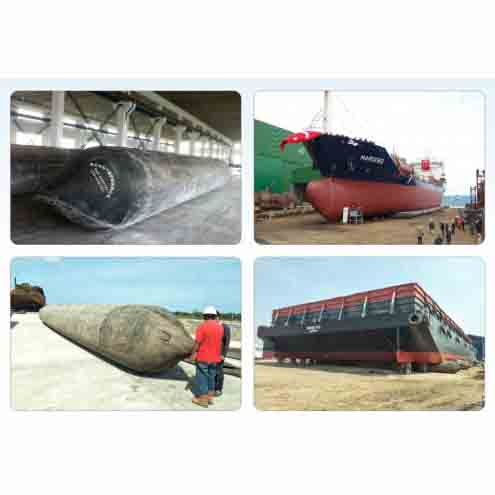

1.1 Rubber Airbags For Ship Launching & Docking / 船舶上排、下水气囊

The marine rubber airbags for ship launching & docking is popular worldwide. This flexible launching technology is highly versatile and helps companies in the shipbuilding and maritime industry saving effort, time, workload and investment.

Using airbags for ship launching and docking is a flexible technology that gets rid of the limitations of slipways, docks and fixed environments. It has high versatility and can be used in mud, cement, grass and other environments. Using airbags for ship launching and docking can help shipyards and marine engineering reduce workload and investment.

Specifications

Cord layers (layers)	Diameter (m)	Bursting pressure (MPa)	Working pressure (MPa)	Load-bearing per meter (Tons/m) Working height
				80% D
3	1.0	0.40	0.09	2.79
	1.2	0.33	0.07
	1.5	0.30	0.07
	1.8	0.25	0.06
	2.0	0.23	0.05
	2.5	0.18	0.04
	3.0	0.16	0.04
	4.0	0.12	0.03
	6.0	0.08	0.02
4	1.0	0.53	0.12	3.72
	1.2	0.44	0.10
	1.5	0.40	0.09
	1.8	0.33	0.07
	2.0	0.30	0.07
	2.5	0.24	0.05
	3.0	0.21	0.05
	4.0	0.16	0.04
	6.0	0.11	0.02
5	1.0	0.67	0.15	4.65
	1.2	0.56	0.12
	1.5	0.50	0.11
	1.8	0.42	0.09
	2.0	0.38	0.08
	2.5	0.30	0.07
	3.0	0.26	0.06
	4.0	0.20	0.04
	6.0	0.13	0.03
6	1.0	0.80	0.18	5.58
	1.2	0.67	0.15
	1.5	0.60	0.13
	1.8	0.50	0.11
	2.0	0.45	0.10
	2.5	0.36	0.08
	3.0	0.32	0.07
	4.0	0.24	0.05
	6.0	0.16	0.04
7	1.0	0.93	0.21	6.51
	1.2	0.78	0.17
	1.5	0.70	0.16
	1.8	0.58	0.13
	2.0	0.53	0.12

Cord layers (layers)	Diameter (m)	Bursting pressure (MPa)	Working pressure (MPa)	Load-bearing per meter (Tons/m) Working height
				80% D
7	2.5	0.42	0.09	6.51
	3.0	0.37	0.08
	4.0	0.28	0.06
	6.0	0.18	0.04
8	1.0	1.07	0.24	7.44
	1.2	0.89	0.20
	1.5	0.80	0.18
	1.8	0.67	0.15
	2.0	0.60	0.13
	2.5	0.48	0.11
	3.0	0.42	0.09
	4.0	0.32	0.07
	6.0	0.21	0.05
9	1.0	1.20	0.27	8.37
	1.2	1.00	0.22
	1.5	0.90	0.20
	1.8	0.75	0.17
	2.0	0.68	0.15
	2.5	0.54	0.12
	3.0	0.48	0.11
	4.0	0.36	0.08
	6.0	0.24	0.05
10	1.0	1.33	0.30	9.31
	1.2	1.11	0.25
	1.5	1.00	0.22
	1.8	0.83	0.19
	2.0	0.75	0.17
	2.5	0.60	0.13
	3.0	0.53	0.12
	4.0	0.40	0.09
	6.0	0.26	0.06
11	1.0	1.47	0.33	10.24
	1.2	1.22	0.27
	1.5	1.10	0.24
	1.8	0.92	0.20
	2.0	0.83	0.18
	2.5	0.66	0.15
	3.0	0.58	0.13
	4.0	0.44	0.10
	6.0	0.29	0.06

1.2 Rubber Airbags For Heavy Objects Transportation / 重物搬运气囊

Specifications of Rubber Airbags For Heavy Objects Transportation is the same as Rubber Airbags For Ship Launching & Docking.

1.3 Rubber Airbags For Marine Salvage / 打捞助浮气囊

Specifications

Marine Salvage Airbags Max Buoyancy at Full Inflation (tons)	Diameter (m)
Effective length (m)
5	3.9 (L=1.0m); 5.6 (L=1.2m); 8.8 (L=1.5m); 12.7 (L=1.8m); 15.7 (L=2.0m); 24.5 (L=2.5m); 35.4 (L=3.0m); 251.2 (L=4.0m); 565.2 (L=6.0m)
8	6.2 (L=1.0m); 9.0 (L=1.2m); 14.1 (L=1.5m); 20.3 (L=1.8m); 25.1 (L=2.0m); 39.2 (L=2.5m); 56.5 (L=3.0m); 401.9 (L=4.0m); 904.3 (L=6.0m)
10	7.8 (L=1.0m); 11.3 (L=1.2m); 17.6 (L=1.5m); 25.4 (L=1.8m); 31.4 (L=2.0m); 49.0 (L=2.5m); 70.6 (L=3.0m); 502.4 (L=4.0m); 1130.4 (L=6.0m)
12	9.4 (L=1.0m); 13.5 (L=1.2m); 21.2 (L=1.5m); 30.3 (L=1.8m); 37.7 (L=2.0m); 58.9 (L=2.5m); 84.8 (L=3.0m); 602.8 (L=4.0m); 1356.4 (L=6.0m)
15	11.7 (L=1.0m); 19.6 (L=1.2m); 26.5 (L=1.5m); 38.1 (L=1.8m); 47.1 (L=2.0m); 73.6 (L=2.5m); 106.0 (L=3.0m); 753.6 (L=4.0m); 1695.6 (L=6.0m)
18	14.1 (L=1.0m); 20.3 (L=1.2m); 31.8 (L=1.5m); 45.8 (L=1.8m); 56.5 (L=2.0m); 88.3 (L=2.5m); 127.2 (L=3.0m); 904.3 (L=4.0m); 2034.7 (L=6.0m)
20	15.7 (L=1.0m); 22.6 (L=1.2m); 35.3 (L=1.5m); 50.8 (L=1.8m); 62.8 (L=2.0m); 98.1 (L=2.5m); 141.3 (L=3.0m); 1004.8 (L=4.0m); 2260.8 (L=6.0m)
24	18.8 (L=1.0m); 27.1 (L=1.2m); 42.4 (L=1.5m); 61.0 (L=1.8m); 75.4 (L=2.0m); 117.8 (L=2.5m); 169.6 (L=3.0m); 1205.8 (L=4.0m); 2712.9 (L=6.0m)
60m	188.4 (L=1.0m); 271.2 (L=1.2m); 423.9 (L=1.5m); 610.4 (L=1.8m); 753.6 (L=2.0m); 1177.5 (L=2.5m); 1695.6 (L=3.0m); 3014.4 (L=4.0m); 6782.4 (L=6.0m)
Note: Customized size available.

1.4 Rubber Airbags For Leaking Stoppage / 管道堵漏气囊

Diameter/直径: 0.3m, 0.4m, 0.5m, 0.6m, 0.8m, 1.0m, 1.2m, 1.35m, 1.4m, 1.5m, 1.6m, 1.8m, 2.0m, 2.5m
Pressure/压力: 0.05MPa, 0.10MPa, 0.15MPa, 0.20MPa
Note: Customized size available.

1.5 Rubber Airbags – Air Cushion / 缓冲气垫

Width/宽度: 0.2m, 0.5m, 0.7m, 1.0m, 1.5m, 2.0m, 2.5m
Length/长度: 0.4m, 0.8m, 1.0m, 2.0m, 2.5m, 3.0m, 3.5m, 4.0m, 6.0m, 8.0m, 10.0m
Height/厚度: 0.05m, 0.08m, 0.10m, 0.12m, 0.15m, 0.17m, 0.20m, 0.25m, 0.30m, 0.35m, 0.40m, 0.60m, 0.80m, 1.0m, 1.5m
Note: Customized size available.

Attention please: The description might be incorrect, please contact us for confirmation.
