Marine Rectangular Fixed Window – Technical Specifications
Product Overview
A welded steel-framed brass rectangular window designed for marine superstructures and deckhouses above the freeboard deck.
Key Features
✔ Fixed (Non-Opening) Design: Enhanced structural integrity
✔ Material Combination:
-
Frame: Welded steel for strength
-
Finish: Brass for corrosion resistance
✔ Mounting: Bolt-on installation for secure fit

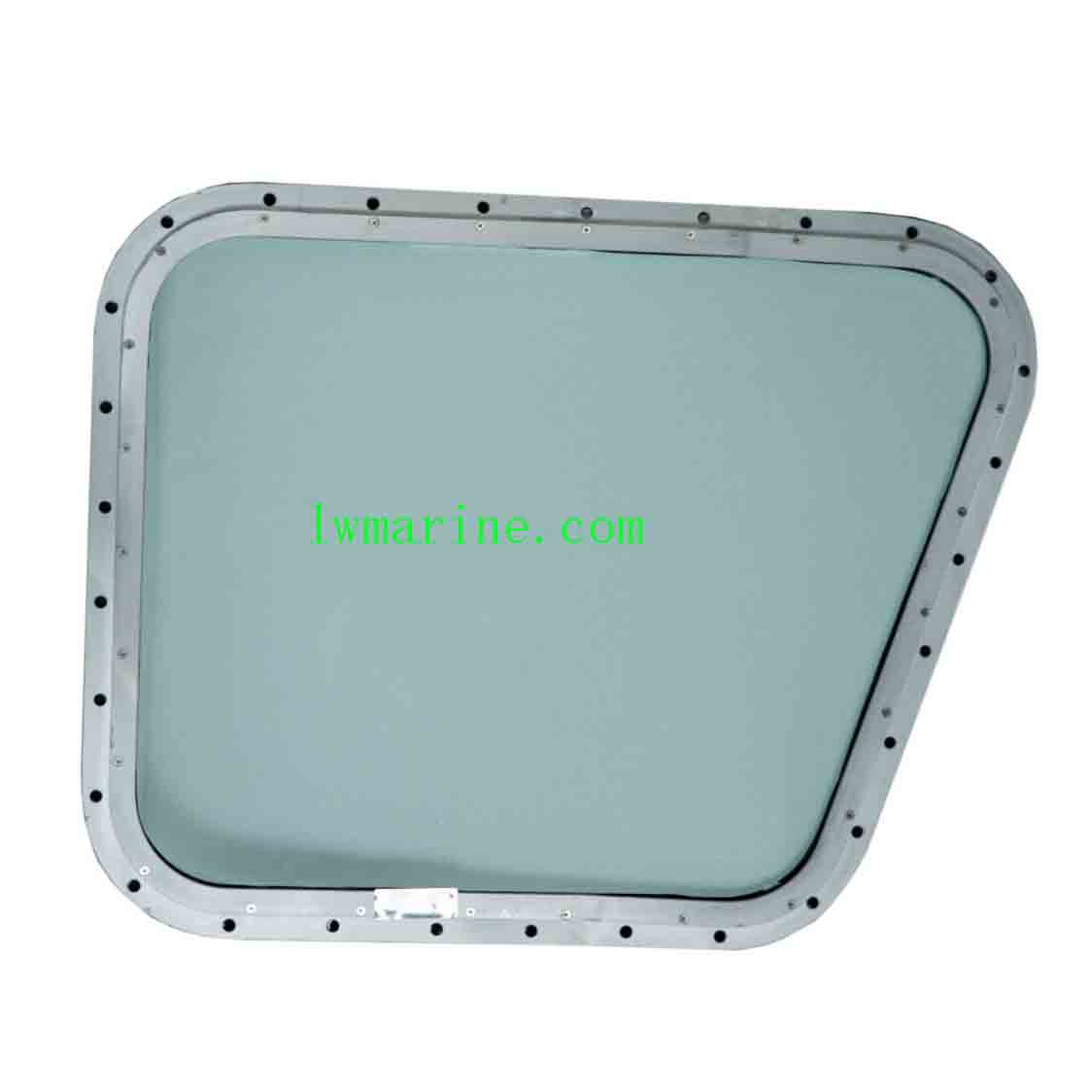

Marine Rectangular Fixed Window
Parameters:
| Product No. | Type | Series | Frame | Nominal Size | Size of Opening | ||
| W2*H2 | R | W*H | W1*H1 | C | |||
| CQYS120-RW011 | E/F | N/P/H | 430*555 | 76 | 300*425 | 352*477 | 19.25 |
| CQYS120-RW012 | 485*630 | 76 | 355*500 | 407*552 | 19.25 | ||
| CQYS120-RW013 | 530*690 | 76 | 400*560 | 452*612 | 19.25 | ||
| CQYS120-RW014 | 580*760 | 126 | 450*630 | 502*682 | 19.25 | ||
| CQYS120-RW015 | 630*840 | 126 | 500*710 | 552*762 | 19.25 | ||
| CQYS120-RW016 | 690*930 | 126 | 560*800 | 612*852 | 19.25 | ||
| CQYS120-RW017 | 1030*760 | 126 | 900*630 | 952*682 | 19.25 | ||
| CQYS120-RW018 | 1130*840 | 126 | 1000*710 | 1052*762 | 19.25 | ||
| CQYS120-RW019 | 1230*930 | 126 | 1100*800 | 1152*852 | 19.25 | ||
The description/sizes may be different with goods, please check with us when order.
