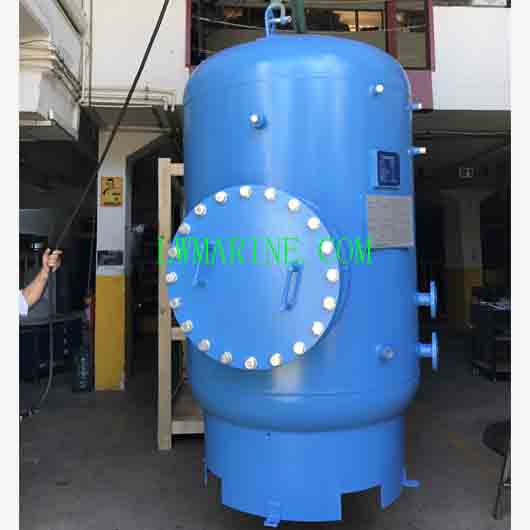

ZYG-0.2 Marine Pressure Water Tanks | Compact Fresh & Seawater Supply System for Vessels

Product Overview
The ZYG-0.2 Marine Pressure Water Tanks are compact, high-efficiency pressure vessel designed for reliable freshwater and seawater supply applications onboard ships and offshore platforms. Engineered to meet international marine standards, this system ensures consistent water pressure for various vessel operations while maintaining minimal energy consumption and easy integration into existing shipboard systems.

Key Applications

Freshwater supply systems for crew accommodations and service areas
Seawater supply systems for deck washing, cooling, and firefighting applications
General service water systems on commercial vessels, workboats, and offshore installations

Technical Specifications

Parameter	Specification
Tank Volume	0.2 m³
Working Pressure	0.4 MPa
Design Pressure	0.44 MPa
Test Pressure	0.66 MPa
Safety Valve Set Pressure	0.42 MPa
Working Temperature	50°C
Water Pump Model	1.5CWX-1.5/1.5A
Pump Flow Rate	3 m³/h
Pump Head	40 m
Pump Power	2.2 kW

Operational Principle – Automated Pressure Maintenance

Initial Filling: Water pump supplies freshwater or seawater into the tank until visible in the glass water gauge
Pressure Building: Air compressor supplies compressed air until pressure reaches 0.25 MPa
Automatic Pump Operation:
- Pump automatically stops when pressure reaches 0.4 MPa (via pressure relay)
- Pump automatically restarts when pressure drops to 0.25 MPa (via pressure relay)
Continuous Cycle: System maintains consistent pressure without manual intervention

Key Features & Benefits
✅ Compact Design: Space-saving configuration ideal for marine installations
✅ Automated Operation: Pressure relay control eliminates manual monitoring
✅ Dual Fluid Compatibility: Suitable for both freshwater and seawater applications
✅ Safety Compliance: Includes pressure safety valve and meets marine pressure vessel standards
✅ Energy Efficient: Optimized pump operation reduces power consumption
✅ Visual Monitoring: Glass water gauge provides immediate level verification
