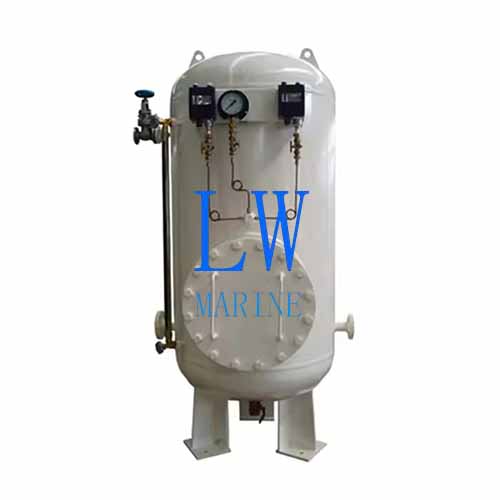

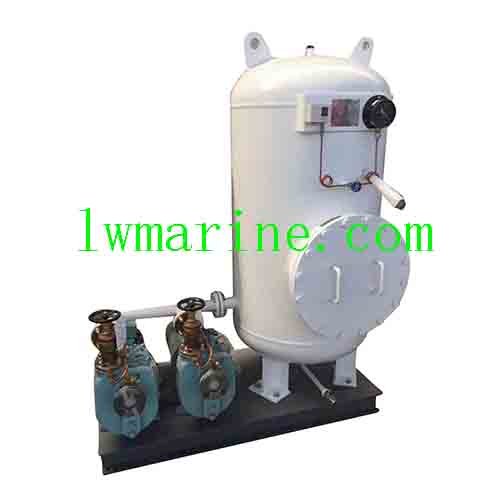

Marine Pressure Water Tank Hydrophore

Marine Pressure Water Tank Hydrophore Operating Principle:
The YLG Series Hydrophore System utilizes ship-supplied pumps to deliver water into the pressurized tank chamber. Compressed air maintains constant system pressure, ensuring stable water supply for vessel operations. The integrated design provides continuous pressurized water flow without requiring constant pump operation.

Marine Pressure Water Tank Primary Applications:

• Potable water distribution systems for marine vessels

• Sanitation and cleaning water supply

• Offshore drilling platform water systems

• General marine fresh water service

Performance Parameters:

1. Capacity Range: 0.12 – 3.0 cubic meters (120 – 3,000 liters)

2. Operating Pressure: 0.6 MPa (87 psi)

3. Design Pressure: 0.7 MPa (102 psi)

4. Pressure Testing:

   • Hydrostatic test: 1.05 MPa (152 psi)

   • Leak test: 0.875 MPa (127 psi)

5. Safety Features:

   • Safety valve activation: 0.63 MPa (91 psi)

6. Temperature Ratings:

   • Operating range: 0°C to 45°C (32°F to 113°F)

   • Maximum design temperature: 50°C (122°F)

Product specifications and dimensions are subject to manufacturing variations. Please confirm all details with our team before placing your order.
