Marine Pressure Vessel Supplier

Marine Pressure Vessel Supplier – Explosion-Proof Pressure Water System for Offshore Applications

Product Overview

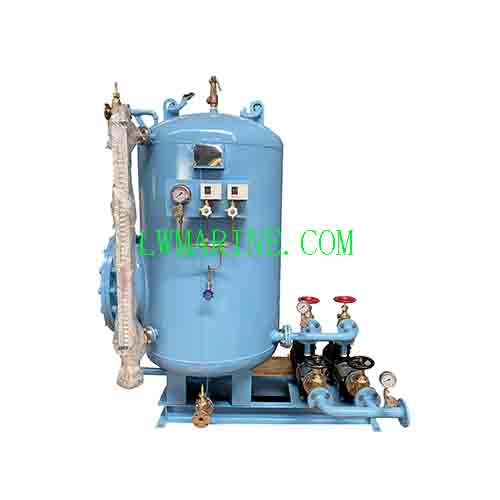

Our Marine Pressure Vessel Supplier is a specialized pressure water system engineered for demanding offshore environments. Designed specifically for oil rigs, drilling platforms, and naval vessels, this robust hydrophore system delivers reliable freshwater and seawater supply for living quarters, cleaning operations, and essential platform services. Featuring customizable explosion-proof components and multiple material options, our hydrophore tanks meet the stringent safety and performance requirements of the offshore oil and gas industry.

Key Features & Benefits
• Explosion-Proof Design – Certified anti-explosion pumps and electrical panels for hazardous environments
• Multiple Material Options – Carbon steel, stainless steel, and bronze constructions available
• Custom Safety Ratings – Anti-explosion grades and protection levels tailored to specific requirements
• IMO Certification – Complies with international maritime standards
• Proven Platform Experience – Trusted by Sinopec, China National Offshore Oil Corporation, and naval vessels
• Dual Fluid Compatibility – Handles both fresh water and seawater applications

Technical Specifications

Pressure Tank Specifications

Model	Volume (m³)	Working Pressure	Design Pressure	Test Pressure	Safety Valve Setting
ZYG-0.12	0.12	0.4 MPa	0.44 MPa	0.66 MPa	0.42 MPa
ZYG-0.2	0.2	0.4 MPa	0.44 MPa	0.66 MPa	0.42 MPa
ZYG-0.3	0.3	0.4 MPa	0.44 MPa	0.66 MPa	0.42 MPa
ZYG-0.5	0.5	0.4 MPa	0.44 MPa	0.66 MPa	0.42 MPa
ZYG-1.0	1.0	0.4 MPa	0.44 MPa	0.66 MPa	0.42 MPa
ZYG-1.5	1.5	0.4 MPa	0.44 MPa	0.66 MPa	0.42 MPa
ZYG-2.0	2.0	0.4 MPa	0.44 MPa	0.66 MPa	0.42 MPa
