Marine Pressure Vessel | Compact Shipboard Pressure Water System
Product Overview: Advanced Marine Hydrophore Water Pressure Device

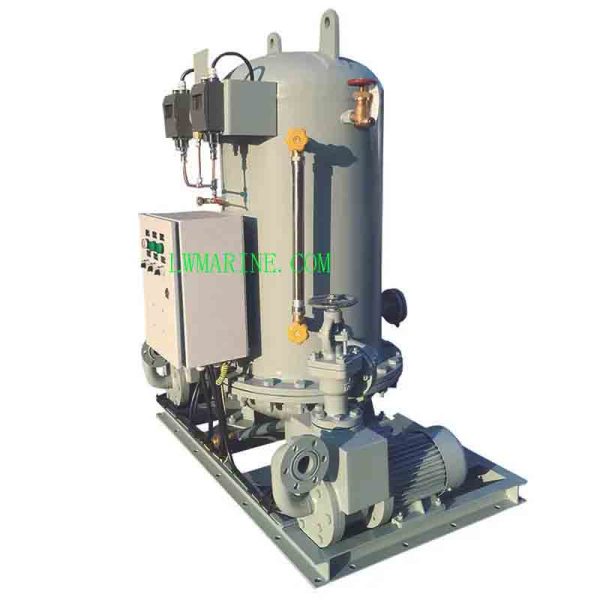

Our Marine Pressure Vessel represents the pinnacle of marine water supply technology, integrating a pressurized water vessel, high-efficiency water pumps, and precision valve piping into a single, optimized system. This all-in-one marine water pressure system serves as the ideal solution for both seawater and freshwater pipeline applications across various vessel types. Engineered with a modular design philosophy, our hydrophore systems deliver exceptional performance through compact dimensions, aesthetically pleasing marine-grade construction, and simplified installation and maintenance procedures.
Dimensions & Configuration: Marine Hydrophore Unit Specifications
| Model | Overall Size (L×B×H mm) | Base Size (A×B mm) | Water Inlet DN | Water Outlet DN | Draining Outlet DN |
|---|---|---|---|---|---|
| ZYG-0.2 | 500×1130×745 | 1635×1040 | 40 | 25 | 20 |
| ZYG-0.3 | 600×1170×742 | 1690×1080 | 32 | 20 | |
| ZYG-0.5 | 700×1236×955 | 1920×1160 | 32 | 20 | |
| ZYG-1.0 | 900×1585×1216 | 2153×1510 | 40 | 20 | |
| ZYG-1.5 | 1000×1604×1310 | 2615×1600 | 40 | 20 | |
| ZYG-2.0 | 1200×1812×1525 | 2473×1810 | 40 | 25 | |
| ZYG-2.5 | 1200×1812×1525 | 2873×1810 | 40 | 25 |
Maintenance Guide: Marine Hydrophore System Care
Regular Inspection Protocol:
-
Verify tightness of all suction pipeline connectors and cocks to prevent air intrusion
-
Check charge valve密封性 regularly to ensure proper operation
-
Monitor tank pressure levels consistently, maintaining within specified operational range
-
Add appropriate air volume through charge valve when pressure remains below optimal levels
Preventive Maintenance Schedule:
-
Perform regular tank interior cleaning and inspection
-
Clean and brush inner walls thoroughly, assessing paint condition for flaking
-
Repaint exterior surfaces with marine-grade anti-corrosive coating
-
Replace all wearing parts during maintenance intervals
-
Reassemble system only after complete drying of all components
Pump Maintenance:
-
Refer to dedicated water pump instruction manual for specific maintenance procedures
Certification & Compliance:
-
IMO approved systems available upon request
-
Full class certification support provided for all major marine classifications
The description/sizes may be different with goods, please check with us when order.
