JIS F7343 Marine Pressure Gauge Cock | JIS B2220 Bronze Isolation Valve for Marine Pressure Measurement Systems
Product Overview

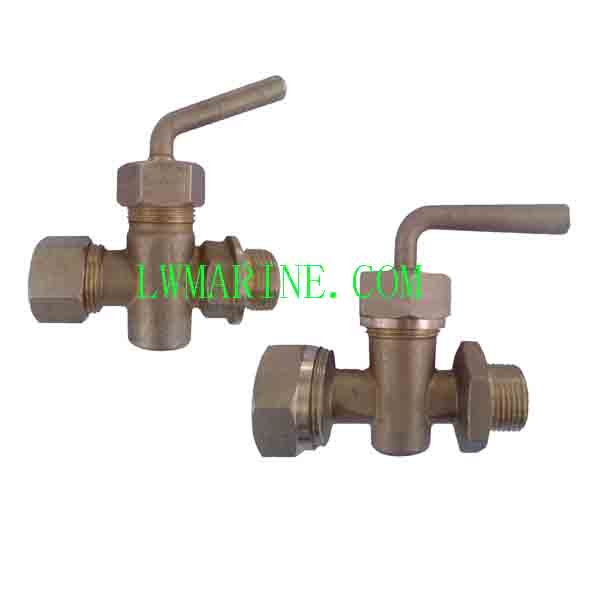

The JIS F7343 Marine Pressure Gauge Cock is a precision-engineered isolation valve designed for safe and reliable pressure gauge connections in marine and offshore applications. Manufactured from high-quality bronze to JIS standards, this essential component ensures accurate pressure reading isolation while maintaining system integrity in shipbuilding, vessel repair, and oil platform installations. Featuring JIS B2220 compliant connections, it guarantees perfect compatibility with marine piping systems.
Key Features & Benefits
-
JIS F7343 Compliance: Manufactured to Japanese Industrial Standards for guaranteed marine compatibility and safety
-
High-Pressure Rating: 20K pressure capacity suitable for demanding marine systems
-
Premium Bronze Construction: Excellent corrosion resistance for seawater, oil, and steam applications
-
Multiple Connection Types: Available with PF threads and bite-type unions for copper tubing
-
Precise Flow Control: Ensures accurate pressure measurement and safe gauge isolation
-
OEM/ODM Services: Custom manufacturing available to meet specific project requirements
-
Quality Assurance: Rigorous quality control meets both domestic and international standards
-
Compact & Efficient Design: Space-saving configuration ideal for instrument panels and tight spaces
Material Specification
-
Body: Bronze
-
Plug: Bronze
Technical Specifications
-
Standard: JIS F7343
-
Connection Standard: JIS B2220
-
Pressure Rating: 20K
-
Type: Pressure Gauge Isolation Valve
-
Operation: Manual
Available Configurations
| IMPA Code | Size | Thread Type | Connection Style | Compatible Tubing |
|---|---|---|---|---|
| 751651 | 3/8 | 3/8 PF | Union Nut | Copper Pipe |
| 751652 | 3/8 | – | Bite Type Union | Copper Pipe |
| 751653 | 1/2 | 1/2 PF | Union Nut | Copper Pipe |
| 751654 | 1/2 | – | Bite Type Union | Copper Pipe |
The description/sizes may be different with goods, please check with us when order.
