Marine OWS

2 m³/h Marine Oil Water Separator OWS Plant | YSZ-2.0 Model | IMO MEPC.107(49) Certified | High-Capacity Bilge Treatment System

Product Overview

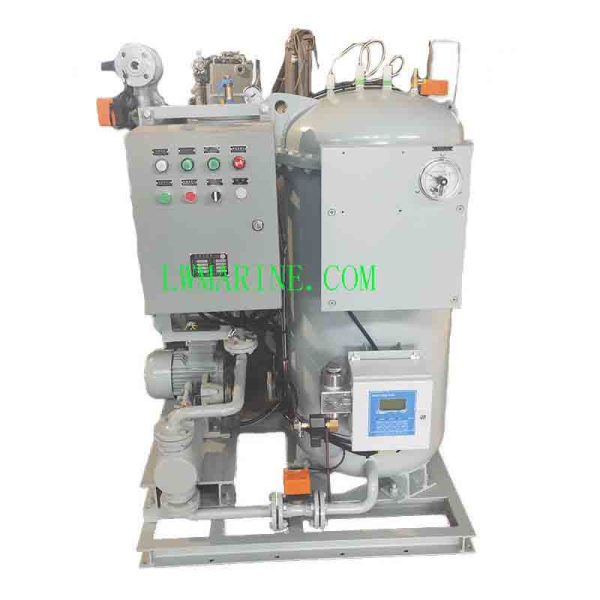

The YSZ-2.0 Marine Oil Water Separator Plant OWS delivers high-volume bilge water treatment with exceptional efficiency and reliability. Designed for medium to large vessels, this compact yet powerful system processes 2 m³/h of oily wastewater while ensuring full compliance with IMO MEPC.107(49) international standards. Its space-saving design, user-friendly operation, and robust construction make it the ideal solution for vessels requiring reliable, high-capacity oily water separation.

Key Features & Benefits

High-Capacity Performance: 2 m³/h treatment capacity ideal for larger vessels and high-volume applications
Compact & Space-Efficient Design: Optimized footprint with lightweight construction for easy engine room installation
IMO MEPC.107(49) Certified: Guarantees compliance with international marine environmental regulations (≤15ppm discharge)
Energy Efficient Operation: 0.75kW motor with 2-3kW heating capability for cost-effective performance
Simple Operation & Maintenance: User-friendly design enables easy operation with minimal maintenance requirements
Global Power Compatibility: Supports both 3Phase/380V/50Hz and 3Phase/440V/60Hz electrical systems
Robust Connection System: Larger interface sizes (DN32/DN40) ensure reliable fluid handling
IACS Certification Ready: Available with all major classification society approvals

Technical Specifications

Parameter	Specification
Model	YSZ-2.0
Treatment Capacity	2 m³/h
Discharge Standard	≤15 ppm (IMO MEPC.107(49))
Working Pressure	≤0.3 MPa
Motor Power	0.75 kW
Electric Heating Power	2-3 kW
Power Supply	3Ph/380V/50Hz or 3Ph/440V/60Hz
