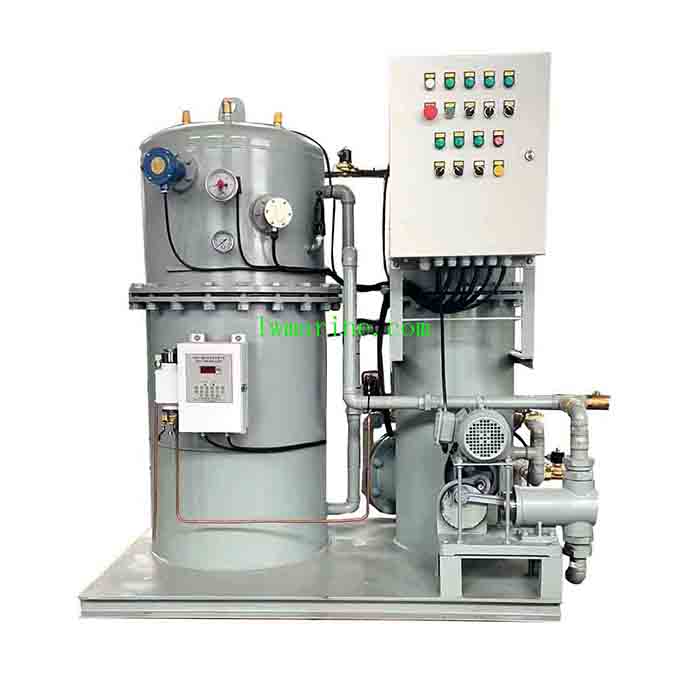

Marine Oily Water Separator

Our state-of-the-art Marine Oily Water Separator is engineered to effectively treat bilge water, ensuring the oil content in the effluent water is ≤15ppm, fully compliant with the stringent requirements of IMO MEPC.107(49). This separator is designed to meet the highest standards of marine pollution prevention, providing a reliable and efficient solution for ships of various sizes.

Multi-Stage Separation Process:

The separator employs a sophisticated three-stage separation process:

1. First Stage – Cone Plate Gravity and Coalesce Separation: Utilizing cone plate technology and coalescence, this stage effectively separates oil from water, even in challenging conditions caused by emulsions generated by feed pumps under pressure. The bilge water is drawn into the first-stage coalescer separator by a vacuum negative pressure feeding pump, preventing separation difficulties.
2. Second Stage – Fiber Filter: The liquid emerging from the feeding pump is adsorbed and filtered through a high-efficiency fiber filter, removing smaller oil particles and impurities, preparing the water for the final treatment stage.
3. Third Stage – Membrane Permeation: The treated water then passes through a membrane permeation system, ensuring the effluent meets the discharge standards set by IMO MEPC.107(49). This advanced membrane technology guarantees the removal of even the smallest oil droplets.

Automatic Monitoring and Alarm System:

A 15ppm bilge alarm is installed in the ship’s cabin to continuously measure the oil content of the effluent. If the oil content exceeds the limit, the system automatically switches to the third-stage membrane treatment process. Additionally, an alarm is triggered, and an unqualified water pneumatic three-way valve (VS6) opens automatically, redirecting the unqualified water back to the bilge instead of discharging it overboard, ensuring environmental compliance at all times.

Technical Specifications:

• Rated Capacity: 0.50 m³ per hour
• Electric Heater Power: 3kW
• Electric Motor Power: 0.55kW
• Outline Dimensions (LxWxH): 1100x690x1460mm
• Base: 6#
• Weight: Dry Weight – 600kg, Wet Weight – 900kg
• Applicable Vessel: 1000-5000DWT
• Optional Electrical System: AC 380V/50Hz/3 phase, AC 415V/50Hz/3 phase, AC 440V/60Hz/3 phase, AC 480V/60Hz/3 phase
• Oil Content of Discharged Water: Not more than 15ppm
• Suction Head: Not more than 6m-H2O
• Discharge Water Pressure: 5-10m-H2O

FAQs:

1. Q: How does the Marine Oily Water Separator ensure compliance with IMO MEPC.107(49)?
   • A: The separator utilizes a three-stage treatment process combining cone plate gravity, fiber filtration, and membrane permeation to effectively reduce oil content in the effluent to ≤15ppm, meeting IMO standards.
2. Q: What happens if the oil content in the effluent exceeds the limit?
   • A: The 15ppm bilge alarm detects excessive oil content and triggers an automatic switch to the third-stage membrane treatment. An alarm sounds, and the unqualified water pneumatic three-way valve redirects the water back to the bilge.
3. Q: Can this separator be used on different types of ships?
   • A: Yes, the separator is designed for vessels ranging from 1000 to 5000DWT, providing versatile and reliable bilge water treatment across various ship sizes.
4. Q: What are the maintenance requirements for the separator?
   • A: Regular maintenance includes checking and replacing fiber filters as needed, inspecting the membrane for fouling, and ensuring the electric heater and motor are functioning correctly. Following the manufacturer’s maintenance guidelines ensures optimal performance.
5. Q: Is the separator compatible with different electrical systems?
   • A: Yes, the separator offers optional electrical systems, including AC 380V/50Hz/3 phase, AC 415V/50Hz/3 phase, AC 440V/60Hz/3 phase, and AC 480V/60Hz/3 phase, ensuring compatibility with various shipboard power supplies.
