Marine Oil Purifiers

Marine Oil Purifiers

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

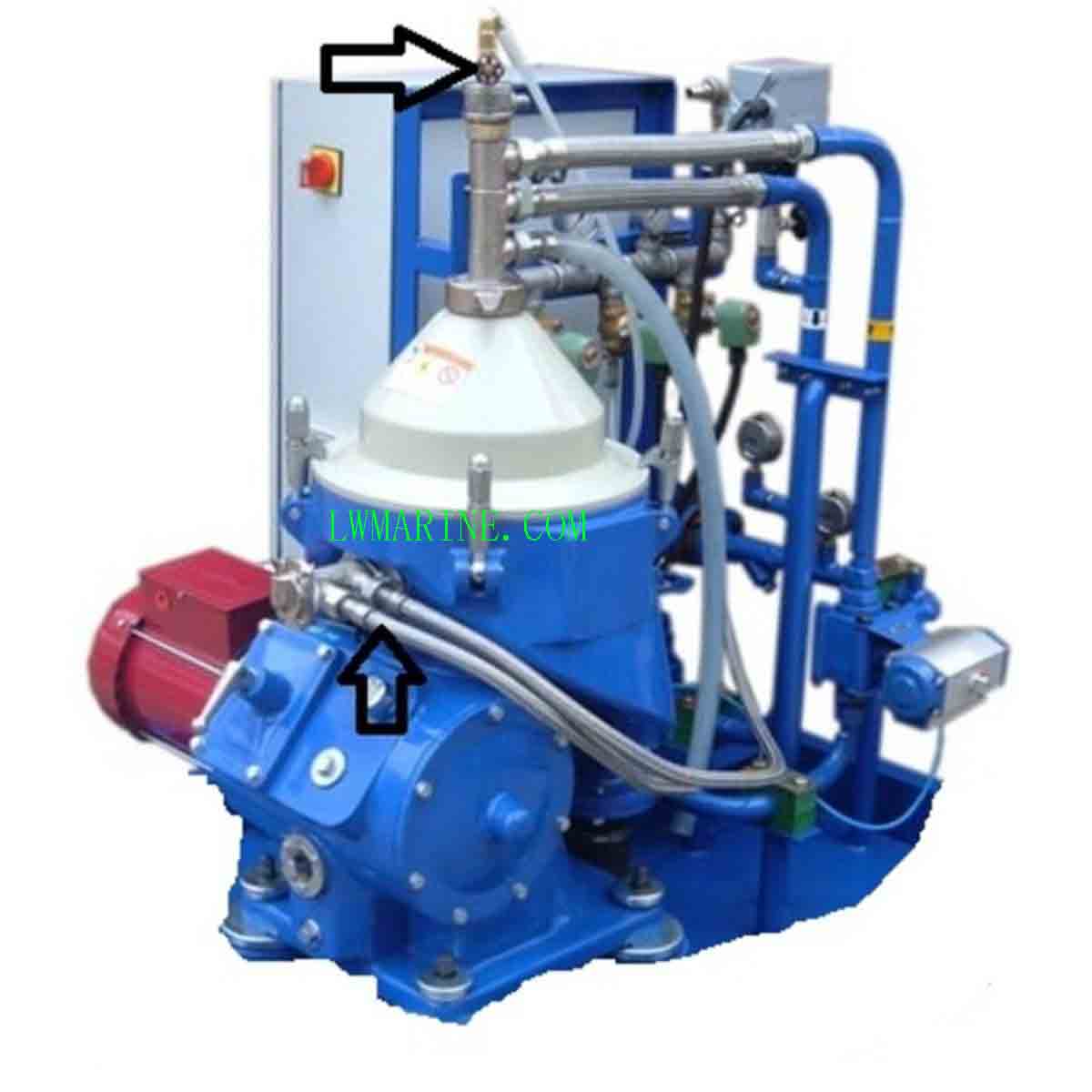

2000L KYDR Marine Oil Purifiers | Centrifugal Oil Purification System for Ships

Product Overview
The KYDR Marine Oil Purifiers are high-efficiency centrifugal oil purification system designed for the removal of water, solid contaminants, and impurities from fuel and lubricating oils in marine applications. Utilizing advanced centrifugal separation technology, it operates on the principle of differential density and sedimentation rates under high centrifugal force, ensuring optimal purification and clarification of oils.

This robust marine oil separator is essential for reducing mechanical wear, extending engine life, and lowering operational costs by enabling the reuse of heavy diesel in place of light diesel. It is also widely used in chemical, food, and pharmaceutical industries for purifying mineral oils and similar fluids.

Key Features & Benefits

  • Efficient Oil Purification: Removes water and solid impurities from fuel and lube oil, enhancing equipment durability.

  • Cost-Effective Operation: Allows purified heavy diesel to replace light diesel, reducing fuel expenses.

  • Versatile Application: Suitable for marine diesel engines and industrial oil purification.

  • Manual Slag Discharge: Simple and reliable maintenance with manual discharge function.

  • Dual Voltage Operation: Compatible with 380V/50Hz and 440V/60Hz power supplies.

Technical Specifications

  • Model: KYDR203CD-21

  • Rated Capacity: 2000 L/h

  • Drum Speed: 9000 rpm

  • Separating Factor: 12450 g

  • Motor Power: 2.2 KW

  • Drive Method: High-speed belt

  • Start/Stop Time: 3–5 min / 10–15 min

  • Discharge Type: Manual slag discharge

  • Oil Input Method: Independent external pump

  • Oil Input Pressure: 0.1 MPa

  • Purified Oil Output Pressure: 0.2–0.3 MPa

  • Net Weight: 268 Kg

  • Dimensions (L×W×H): 720 × 450 × 850 mm

  • Power Supply: 3PH~380V/50Hz or 3PH~440V/60Hz

How It Works: Centrifugal Separation Technology
The marine disc centrifuge operates by rotating fluids at high speed within a drum, generating centrifugal forces far greater than gravity. This forces heavier solids and water to the outer wall while cleaner oil moves toward the center, achieving rapid and efficient separation. Unlike gravity separation, this process requires minimal time and space, making it ideal for continuous marine and industrial use.

Two Separation Modes:

  1. Purification: Separates solid impurities from liquid, with one inlet and two outlets.

  2. Clarification: Separates two immiscible liquids (e.g., oil and water) or liquid-solid mixtures, with one inlet and two outlets.

Certification & Compliance
This separator meets international marine standards and is certified by IACS member societies including BV (Bureau Veritas) and CCS (China Classification Society). Other certifications are available upon request.

The description/sizes may be different with goods, please check with us when order.
