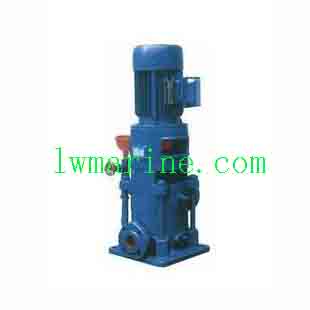

CLG Series Marine Vertical Multistage Centrifugal Pump – Compact High-Pressure Water Solution
The CLG Series Marine Vertical Multistage Centrifugal Pump delivers exceptional performance for freshwater and similar fluid transfer applications in marine environments. Engineered with advanced hydraulic design, this compact multistage pump provides efficient, quiet operation with extended service life. Ideal for marine domestic water systems, its space-saving vertical configuration and corrosion-resistant construction ensure reliable performance in demanding conditions.
Key Features & Benefits:
-
Advanced Hydraulic Design: Optimized impeller and volute ensure high efficiency across performance range
-
Quiet Operation: Precision-balanced components minimize noise and vibration
-
Reliable Mechanical Seal: Advanced shaft seal design prevents leaks and reduces maintenance
-
Corrosion-Resistant Construction: Fully sealed shaft prevents medium contact, extending service life
-
Space-Saving Vertical Design: Compact footprint ideal for marine engine room installations
-
Hot Water Capable: R-model available for high-temperature applications (up to 85°C)
Model Identification: 25CLG(R)3-10×9
-
25: Inlet diameter (25mm)
-
CLG: Marine vertical multistage centrifugal pump
-
R: Hot water version (optional)
-
3: Flow capacity (3m³/h)
-
10: Single-stage head (10m)
-
9: Number of stages
Performance Specifications (50Hz/2900RPM):
| Model | Capacity (m³/h) | Head (m) | Power (kW) | Efficiency (%) | NPSHr (m) |
|---|---|---|---|---|---|
| 25CLG3-10×2 | 3 | 20 | 0.75 | 42 | 2 |
| 25CLG3-10×4 | 3 | 40 | 1.1 | 42 | 2 |
| 25CLG3-10×6 | 3 | 60 | 2.2 | 42 | 2 |
| 25CLG3-10×8 | 3 | 80 | 2.2 | 42 | 2 |
| 25CLG3-10×10 | 3 | 100 | 3 | 42 | 2 |
*(Complete 50Hz/60Hz performance data available for all configurations)*
Technical Specifications:
-
Impeller Diameter: 98mm
-
Inlet/Outlet Diameter: 25mm
-
Max. Efficiency: Up to 44%
-
Motor Power Range: 0.75-4kW
-
Weight Range: 70-124kg (depending on stages)
-
Speed: 2900RPM (50Hz) / 3500RPM (60Hz)
The description/sizes may be different with goods, please check with us when order.
