B1.6-3.0 Marine Medium Pressure Air Receiver
The B1.6-3.0 Marine Medium Pressure Air Receiver is a top-tier, class-certified pressure vessel meticulously engineered for large-scale marine compressed air systems. With an impressive storage capacity of 1.6 cubic meters and a design pressure of 3.3 MPa, this horizontally-mounted air receiver is indispensable for critical shipboard operations, including starting main engines, powering pneumatic control systems, and activating emergency mechanisms. Its robust design ensures reliable performance in demanding marine environments, making it a preferred choice for shipbuilders and marine engineers.
Notable Features & Advantages for Enhanced Marine Air Storage
- Class Society Certification Compliance: Pre-approved for certifications from renowned classification societies such as ABS (American Bureau of Shipping), DNV (Det Norske Veritas), BV (Bureau Veritas), LR (Lloyd’s Register), and CCS (China Classification Society), ensuring global acceptance and compliance with maritime safety standards.
- Contamination-Free Air Storage: Incorporates advanced sealing mechanisms to maintain the purity and integrity of stored air, preventing contamination and ensuring optimal performance of pneumatic systems.
- Exceptional Durability: Features a food-grade natural rubber diaphragm capable of withstanding over 200,000 operational cycles, providing long-lasting reliability and reducing maintenance costs.
- Space-Efficient Horizontal Design: Maximizes space utilization within engine compartments, with dimensions of 900×2740×1680 mm, facilitating easy installation and integration into existing marine setups.
- Safety-First Construction: Equipped with built-in safety valves and pressure gauges for secure and dependable operation, minimizing the risk of accidents and ensuring crew safety.
Technical Specifications for Precision Engineering
| Parameter | Specification |
|---|---|
| Model | B1.6-3.0 |
| Capacity | 1.6 m³ |
| Design Pressure | 3.3 MPa |
| Operating Pressure | 3.0 MPa |
| Design Temperature | 100°C |
| Inner Diameter | 900 mm |
| Length | 2740 mm |
| Height | 1680 mm |
| Weight | 1180 kg |
| Orientation | Horizontal |
| Diaphragm Composition | Food-Grade Natural Rubber |
A-type Marine Medium Pressure Air Receiver

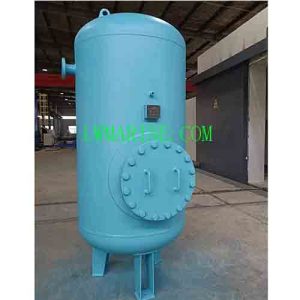

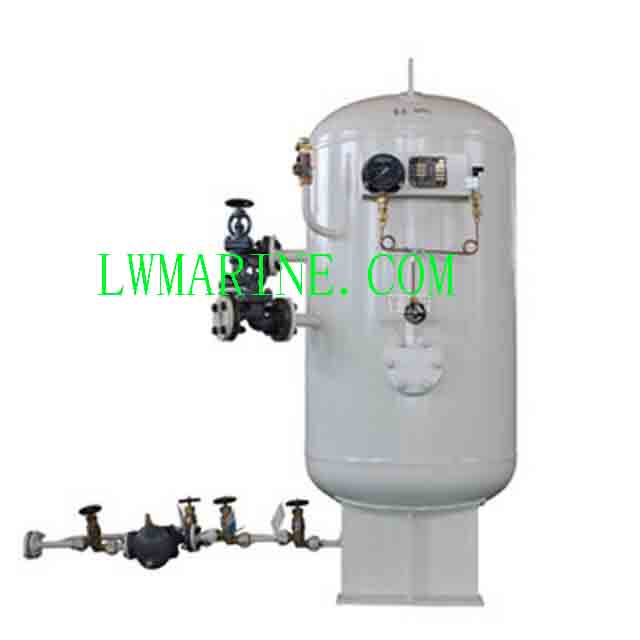

The A-type Vertical Marine Air Receiver is a versatile and reliable pressure vessel designed for marine applications, comprising a bottle valve and a steel body. The body features a handhole (or manhole) for effortless cleaning and inspection, ensuring optimal hygiene and performance. The bottle valve is equipped with an inlet/outlet valve, safety valve, pressure gauge, pressure gauge valve, and drain valve, among other essential components, for comprehensive control and monitoring of the compressed air system.
Main Specifications for Diverse Marine Needs
| Style | Type | Capacity (m³) | W.P. (Mpa) | Inner Dia (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| A | A0.05-1.0 | 0.05 | 1 | 300 | 1050 | 70 |
| A | A0.10-1.0 | 0.1 | 1 | 400 | 1270 | 125 |
| A | A0.16-1.0 | 0.16 | 1 | 400 | 1750 | 155 |
| A | A0.25-1.0 | 0.25 | 1 | 500 | 1760 | 180 |
| A | A0.32-1.0 | 0.32 | 1 | 500 | 2170 | 248 |
| A | A0.40-1.0 | 0.4 | 1 | 600 | 1865 | 260 |
| A | A0.05-3.0 | 0.05 | 3 | 300 | 1050 | 100 |
| A | A0.08-3.0 | 0.08 | 3 | 300 | 1360 | 120 |
| A | A0.10-3.0 | 0.1 | 3 | 400 | 1270 | 165 |
| A | A0.16-3.0 | 0.16 | 3 | 400 | 1750 | 215 |
| A | A0.25-3.0 | 0.25 | 3 | 500 | 1760 | 195 |
| A | A0.32-3.0 | 0.32 | 3 | 500 | 2100 | 345 |
| A | A0.40-3.0 | 0.4 | 3 | 600 | 1865 | 410 |
| A | A0.50-3.0 | 0.5 | 3 | 600 | 2270 | 450 |
FAQs for Marine Air Receiver Solutions
Q1: What are the key benefits of using a class-certified Marine Medium Pressure Air Receiver?
A1: Class-certified marine air receivers, such as the B1.6-3.0, offer global acceptance and compliance with maritime safety standards, ensuring reliable performance and minimizing the risk of accidents.
Q2: How does the contamination-free design of the marine air receiver benefit pneumatic systems?
A2: The advanced sealing mechanisms in the marine air receiver maintain the purity and integrity of stored air, preventing contamination and ensuring optimal performance of pneumatic systems, which is crucial for marine applications.
Q3: What is the significance of the food-grade natural rubber diaphragm in the B1.6-3.0 Marine Medium Pressure Air Receiver?
A3: The food-grade natural rubber diaphragm is capable of withstanding over 200,000 operational cycles, providing exceptional durability and reducing maintenance costs, making it an ideal choice for demanding marine environments.
Q4: Can the A-type Vertical Marine Medium Pressure Air Receiver be customized to meet specific marine requirements?
A4: Yes, the A-type Vertical Marine Air Receiver is available in various capacities and pressure ratings, allowing for customization to meet specific marine requirements and ensuring optimal performance in diverse applications.
Q5: How does the space-efficient horizontal design of the B1.6-3.0 marine air receiver benefit shipbuilders?
A5: The horizontally-mounted design of the B1.6-3.0 marine air receiver maximizes space utilization within engine compartments, facilitating easy installation and integration into existing marine setups, which is beneficial for shipbuilders looking to optimize space and performance.
