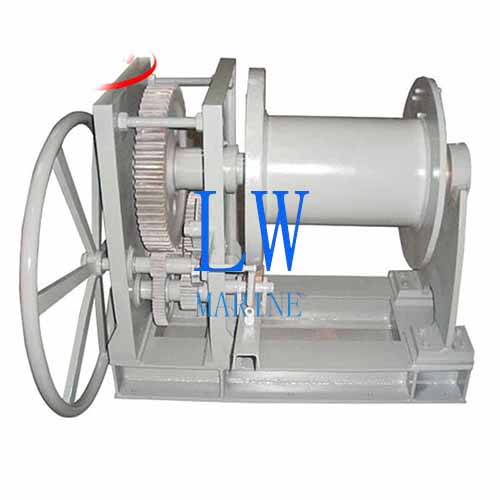

Marine Hand Cable Winch
Product Overview
A heavy-duty manual winch designed for marine applications where power availability is limited. Engineered for reliable load handling with a ratchet locking mechanism to secure loads in position.
Key Features
✔ Load Capacity: 1–160 kN (100 kg–16,000 kg)
✔ Manual Operation:
-
Ratchet & Pawl System – Prevents accidental release
-
Adjustable Brake – For controlled load lowering
-
Ergonomic Handle – Reduces operator fatigue
✔ Compact & Robust: -
Corrosion-resistant materials (stainless steel/cast iron)
-
Minimal maintenance required
Marine Hand Cable Winch
Parameters:
| Type | Hand length(MM) | Drum diam(MM) | Pull | Ratio | Wire diam(MM) |
| 5T | 320 | 180 | 50KN | 4.84 | 10 |
| 8T | 350 | 250 | 80KN | 4.83 | 14 |
| 10T | 360 | 280 | 100KN | 4.83 | 14 |
| 12T | 360 | 300 | 120KN | 4.86 | 15 |
| 16T | 380 | 350 | 160KN | 5.11 | 16 |
Product specifications and dimensions are subject to manufacturing variations. Please confirm all details with our team before placing your order.
