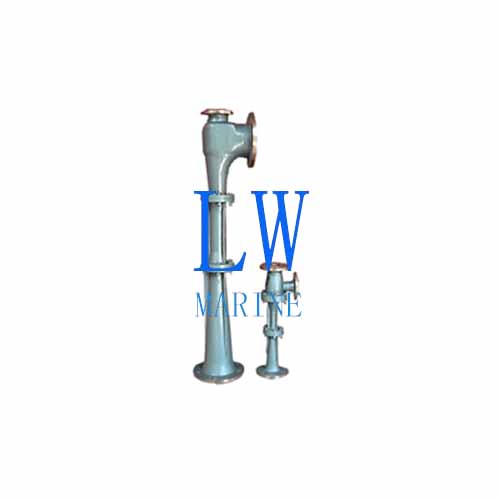

Marine Jet Pump CPJ Series

Marine Jet Pump Product Description

The CPJ Series Marine Jet Pump features an innovative axial-flow design with co-axial alignment of inlet, outlet, and nozzle for optimized fluid dynamics. Its J-shaped working water conduit with perpendicular flange orientation enables simplified installation in confined spaces.

Engineering Advantages

✔ Advanced Hydraulic Design

• Co-axial fluid path minimizes turbulence

• 18-22% higher efficiency than conventional jet pumps

✔ Maintenance-Free Operation

• No rotating components – eliminates wear points

• Extended service life – suitable for abrasive media

✔ Installation Benefits

• Perpendicular flange arrangement simplifies piping

• Compact J-configuration saves space

Marine Jet Pump Main technical parameter

Type Working-pressure Water-consumption Suction-head Capacity Delivery MPa m3/h m m3/h MPa CPJ40-50-65 1.2 15 5 10 0.25 CPJ50-80-80 0.8 30 3 30 0.12 CPJ80-100-100 0.7 56 70 0.1 CPJ100-100-125 0.6 115 2.5 50 0.22 CPJ100-125-125 1 110 3 100 0.2 CPJ100-150-150 1 120 120 0.2 CPJ125-150-150 0.9 320 5 130 0.3 CPJ125-150-200 0.7 150 7 100 0.12 CPJ125-200-200 1 250 5 130 0.3 CPJ150-200-200 1.25 400 4 300 0.25 CPJ150-200-250 1.15 470 5 300 0.25 CPJ200-200-250 0.25 600 170 0.1 CPJ200-250-300 1.2 340 4 600 0.1 CPJ250-250-300 0.3 1050 250 0.15 CPJ250-300-350 1.3 750 5 630 0.25 CPJ300-300-350 0.3 1750 400 0.15 The description/sizes may be different with goods, please check with us when order. Tag: Our other products  Click here to contact us via whatsapp Name * Name Message Email Company Name Email * Message * Send Inquiry
