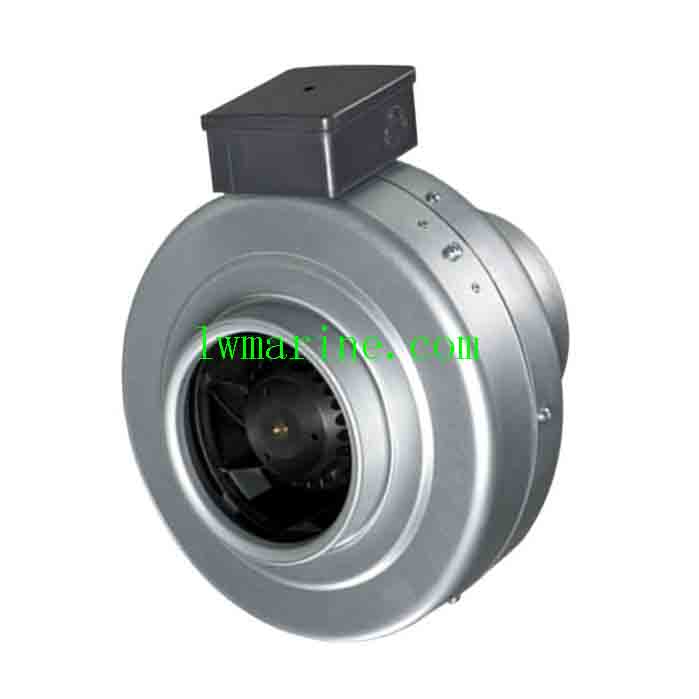

Marine Inline Centrifugal Fan
Our Marine Inline Centrifugal Fan is engineered with exceptional moisture – resistance capabilities, making it an ideal choice for installation in wet or highly humid environments on ships and other marine vessels. This robust fan is specifically designed to transport clean gas efficiently. However, it is crucial to note that it is strictly prohibited from transporting grinding powder, soot, or any similar substances that could potentially damage its internal components or compromise its performance. The CK series pipe fans are versatile and well – suited for ventilation applications in various cabins on ships, as well as other appropriate settings where reliable and efficient air circulation is required.
Key Features for Enhanced Performance
- Moisture – Resistant Design: Built to withstand the harsh conditions of marine environments, ensuring long – lasting operation even in the presence of moisture.
- Clean Gas Transport: Ideal for maintaining a clean and healthy air environment within the ship’s cabins by effectively moving clean gas.
- Versatile Application: Can be seamlessly integrated into different ventilation systems on ships, providing flexibility in usage.
Functions
The primary function of this duct fan is to supply fresh air and exhaust stale air within the ventilation system of marine vessels. When used in conjunction with ventilation pipes, filters, heat exchangers, mufflers, and various types of valves, it forms a comprehensive ventilation solution. This integrated approach significantly improves the air quality within the cabins and the overall ventilation system of the ship, creating a more comfortable and healthy environment for the crew and passengers.
Performance Parameters
| Type | Power (KW) | Flow Rate (M³/h) | Total Pressure (Pa) | Noise ≤ DB(A) | Rotate Speed (r/min) | Voltage (V) |
|---|---|---|---|---|---|---|
| DF – 2 | 0.18 | 406 | 450 | 72 | 2840 | 380 |
| DF – 3 | 0.25 | 504 | 860 | 75 | 2840 | 380 |
| DF – 4 | 0.37 | 660 | 850 | 76 | 2840 | 380 |
| DF – 5 | 0.55 | 850 | 1020 | 76 | 2840 | 380 |
| DF – 6 | 0.75 | 1200 | 1210 | 78 | 2840 | 380 |
| DF – 7 | 1.1 | 1650 | 1260 | 80 | 2840 | 380 |
| DF – 8 | 1.5 | 2300 | 1400 | 82 | 2840 | 380 |
| DF – 9 | 2.2 | 2800 | 1650 | 82 | 2840 | 380 |
| DF – 10 | 3 | 3000 | 1700 | 82 | 2840 | 380 |
| DF – 11 | 4 | 3200 | 1750 | 85 | 2840 | 380 |
| DF – 12 | 5.5 | 3500 | 1800 | 85 | 2840 | 380 |
These detailed performance parameters allow you to select the most suitable model based on your specific ventilation requirements on the ship, such as the desired flow rate, total pressure, and noise level.
FAQs
Q1: Can this marine inline centrifugal fan be used in freshwater environments on boats?
A: Yes, absolutely. The moisture – resistant design of our fan makes it well – equipped to handle both saltwater and freshwater environments on boats. Its durable construction ensures reliable performance even when exposed to moisture in various aquatic settings.
Q2: How often should the fan be maintained in a marine environment?
A: Regular maintenance is essential to ensure the long – term performance of the fan. In a marine environment, it is recommended to inspect the fan at least once every three months. This includes checking for any signs of corrosion, cleaning the fan blades and housing, and ensuring that all connections are secure. Additionally, the filters should be cleaned or replaced as per the manufacturer’s instructions to maintain optimal air quality.
Q3: Can I install this fan myself, or do I need professional assistance?
A: While it is possible for someone with basic mechanical and electrical skills to install the fan, we highly recommend seeking professional assistance, especially in a marine environment. A professional installer will have the necessary knowledge and experience to ensure that the fan is installed correctly, following all safety regulations and industry standards. This will help prevent any potential issues and ensure the fan operates efficiently.
Q4: What is the warranty period for this marine inline centrifugal fan?
A: Our marine inline centrifugal fan comes with a standard warranty period of [X] years. During this period, we will repair or replace any defective parts free of charge, provided that the fan has been used and maintained in accordance with the manufacturer’s instructions. For more detailed information about the warranty, please refer to our warranty policy or contact our customer service team.
Q5: Can this fan be used in combination with other ventilation equipment from different brands?
A: In most cases, yes. Our fan is designed to be compatible with a wide range of ventilation equipment, including pipes, filters, heat exchangers, and mufflers from different brands. However, it is always advisable to check the specifications and compatibility of the equipment before making any connections to ensure optimal performance and avoid any potential issues.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
