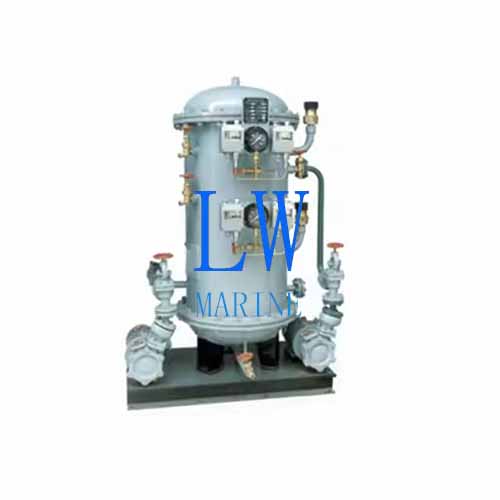

Marine ZYG(S) Series Integrated Hydrophore Tank
System Overview
The ZYG(S) Series is a compact, modular freshwater pressure tank solution designed for marine and offshore applications. It integrates seawater/freshwater storage, pumping, and distribution into a single, space-saving unit, ensuring reliable water supply for vessel operations.
Key Features & Benefits
✔ All-in-One Design – Combines tank, pump, valves, and piping in a pre-assembled module
✔ Space Optimization – Compact footprint ideal for confined marine environments
✔ Easy Installation & Maintenance – Simplified connections and accessible components
✔ Corrosion-Resistant Construction – Suitable for both seawater and freshwater service
✔ Aesthetic & Durable – Marine-grade materials with a clean, professional finish

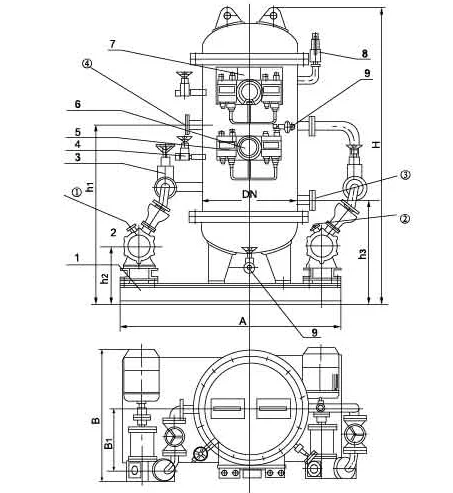

- Public Dock
- Water Pump
- Stop-Check Valve
- Gas Charging Valve
- Pressure Controller
- Pressure Gauge
- Name Plate
- Safety Valve
- Ball Valve

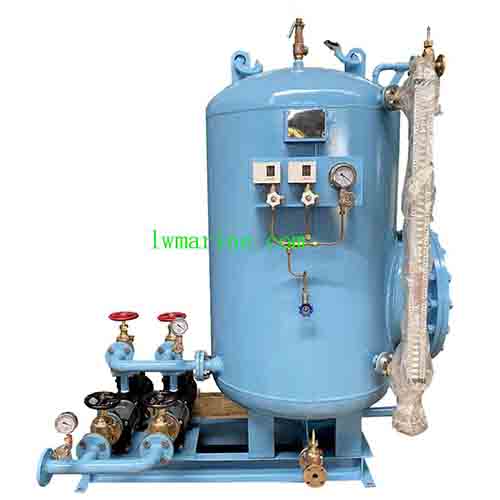

Marine Hydrophore Tank
| Model | ZYG-0.12 | ZYG-0.2 | ZYG-0.3 | ZYG-0.5 | ZYG-1 | ZYG-1.5 | ZYG-2 | |
| Volume（m3） | 0.12 | 0.2 | 0.3 | 0.5 | 1 | 1.5 | 2 | |
| Take-off pressure of safety valve（MPa） | 0.42 | |||||||
| Working temperature（℃） | 0~45 | |||||||
| Design temperature（℃） | 50 | |||||||
| Working pressure（MPa） | 0.4 | |||||||
| Design pressure （MPa） | 0.44 | |||||||
| Test pressure （MPa） | 0.66 | |||||||
| Water pump | Model | 1.5CWX-1.5/1.5A | 1.5CWX-2/2A | 1.5CWX-3/3A | ||||
| Flow rate（m3/h） | 3 | 6.5 | 10 | |||||
| Pumping head (m) | 40 | 40 | 40 | |||||
| Power(kW) | 2.2 | 3 | 4 | |||||
Product specifications and dimensions shown are for reference only. Actual items may vary slightly – we recommend confirming all details with our sales team before placing your order.
