Marine Hydrophore Equipment | Pressure Water Tank System | Fresh & Seawater Supply
Automatic Marine Pressure Water System for Shipboard Fresh & Seawater Applications

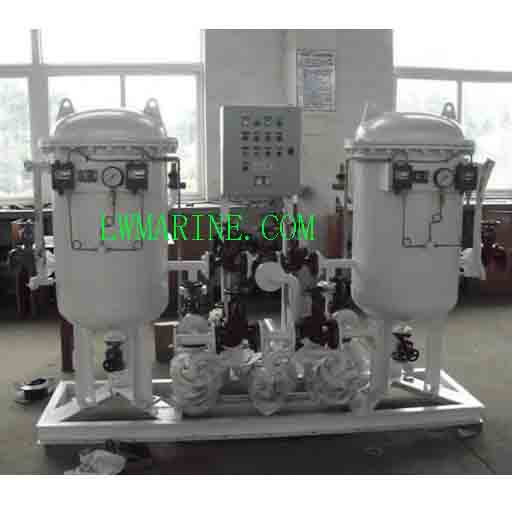

Our marine hydrophore equipment provides reliable pressurized water supply for various shipboard systems using both freshwater and seawater. This class-certified pressure water system maintains constant water pressure through automated pump control, ensuring consistent water delivery to accommodation areas, galleys, and other marine applications while meeting international marine standards.
Key Features & Benefits
✔ Dual Fluid Compatibility – Handles both freshwater and seawater applications
✔ Automatic Pressure Control – 0.3-0.4 MPa operating range with precision pressure management
✔ Redundant Pump System – Main + standby pump configuration for uninterrupted operation
✔ Safety Certified – 0.42 MPa safety valve and 0.66 MPa test pressure rating
✔ Global Certification – IMO approved with all major classification society certificates available
Technical Specifications
Pressure Tank Models & Capacities:
| Model | ZYG-0.12 | ZYG-0.2 | ZYG-0.3 | ZYG-0.5 | ZYG-1.0 | ZYG-1.5 | ZYG-2.0 |
|---|---|---|---|---|---|---|---|
| Volume (m³) | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 |
| Working Pressure | 0.4 MPa | 0.4 MPa | 0.4 MPa | 0.4 MPa | 0.4 MPa | 0.4 MPa | 0.4 MPa |
| Design Pressure | 0.44 MPa | 0.44 MPa | 0.44 MPa | 0.44 MPa | 0.44 MPa | 0.44 MPa | 0.44 MPa |
| Test Pressure | 0.66 MPa | 0.66 MPa | 0.66 MPa | 0.66 MPa | 0.66 MPa | 0.66 MPa | 0.66 MPa |
Pump Specifications:
| Pump Model | 1.5CWX-1.5/1.5A | 1.5CWX-2/2A | 1.5CWX-3/3A |
|---|---|---|---|
| Flow Rate (m³/h) | 3 | 6.5 | 10 |
| Pumping Head (m) | 40 | 40 | 40 |
| Power (kW) | 2.2 | 3 | 4 |
System Components & Operation
Control System Features:
-
Dual Control Modes – Manual & automatic operation
-
Automatic Pressure Sensing – Starts at 0.3 MPa, stops at 0.4 MPa
-
Pump Redundancy – Main/standby pump selection switch
-
Visual Indicators – Liquid level meter and pressure gauge
Safety Systems:
-
Pressure Safety Valve – Activates at 0.42 MPa
-
High-Pressure Protection – 0.44 MPa design pressure
-
Emergency Drain Valve – For maintenance and servicing
Applications & Uses
Primary Marine Applications:
-
Accommodation water supply systems
-
Galley and sanitary water services
-
Deck washing and cleaning systems
-
Engine room service water
-
General shipboard water distribution
Operational Advantages:
-
Constant water pressure for all shipboard applications
-
Reduced pump cycling extends equipment life
-
Energy efficient operation with automatic controls
-
Low maintenance design with easy access components
Certification & Compliance
Our marine hydrophore units are IMO approved and available with certifications from all major classification societies:
✅ ABS ✅ BV ✅ CCS ✅ DNV
✅ GL ✅ LR ✅ NK ✅ RINA
✅ IRS ✅ RMRS ✅ KR
The description/sizes may be different with goods, please check with us when order.
