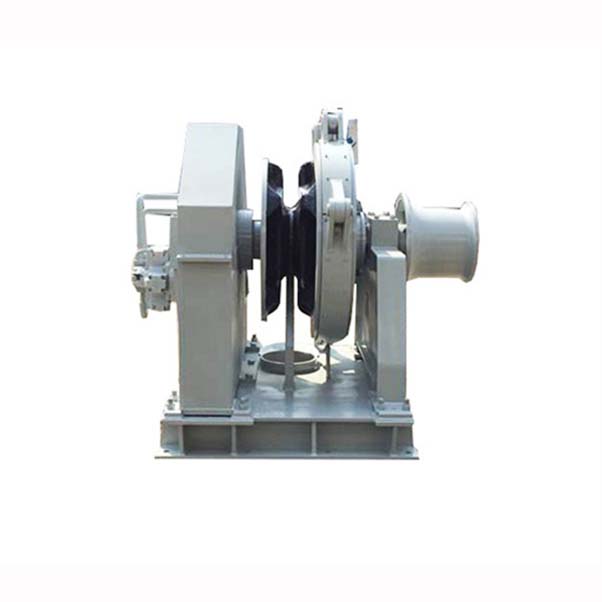

48mm Single Gypsy Marine Hydraulic Windlasses
Application
The 48mm Single Gypsy Marine Hydraulic Windlasses is essential deck equipment designed for professional marine anchoring operations. This hydraulic-powered system is specifically engineered for handling 48mm anchor chains, providing reliable performance for vessel anchoring and mooring.
Key features include:
-
Single gypsy wheel configuration for anchor chain management
-
Integrated warping head for mooring operations
-
Closed gearbox design for enhanced operational safety
-
Manual brake and clutch system for precise control
Material
-
Main structure: High-grade cast steel
-
Critical components: 316L stainless steel (marine-grade corrosion resistance)
Advantages and Features
-
Compact & Robust Design: Space-saving construction with exceptional strength
-
Dual Control System: Local and remote operation capabilities
-
Maintenance Friendly: Simplified installation and low upkeep requirements
-
Marine Durability: Superior corrosion resistance for extended service life
-
Precision Engineering: Smooth operation with professional-grade finish
-
Energy Efficient: Optimized hydraulic performance with low power consumption
-
Safety Assured: Reliable operation with fail-safe features
-
Custom Solutions: Configurable to specific vessel requirements
-
Quality Certified: Compliant with IRS, BV, LR classification standards
| Main Technical Data Of Windlass | ||||||
| Chain Dia. | Supporting Load | Working Speed | Warping Load | Working Load | Overload pull | Displacement |
| mm | KN | m/min | KN | KN | KN | ml/r |
| 48 | 522 | ≥10 | 15 | 98 | 147 | 3960 |
The description/sizes may be different with goods, please check with us when order.
