150kN Marine Hydraulic Windlass – Technical Specifications
Performance Parameters

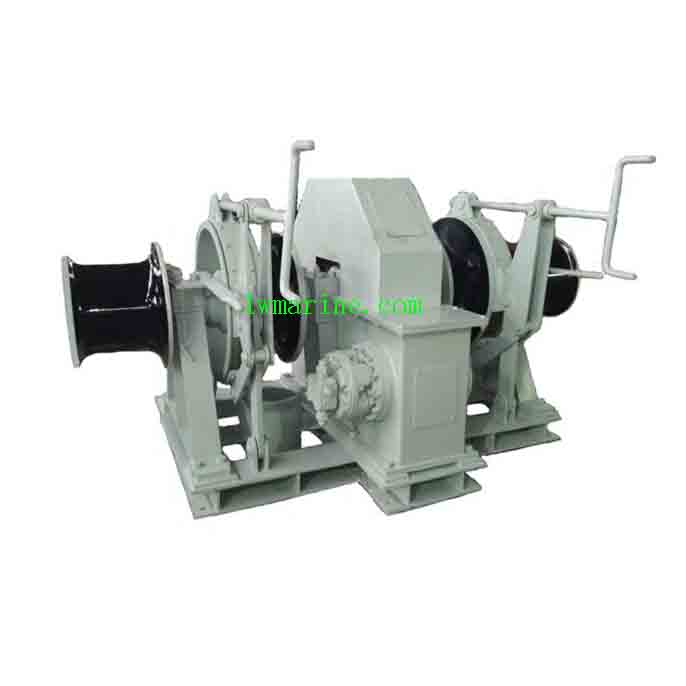

Marine Hydraulic Windlass
Parameters:
| Parameter | Specification |
| Maximum Pulling Force | 150 kN |
| Drum Capacity | 250 meters |
| Hydraulic Motor | 55 kW, 1470 rpm |
| Support Load Capacity | 450 kN |
| Nominal Line Speed | 9 m/min |
| Rope Diameter | 32 mm |
| Voltage | 380V/50Hz |
| Hydraulic System | |
| – Flow Rate | 141 L/min |
| – Displacement | 28,616 mL/rev |
| – Working Pressure | 18 MPa |
FAQ:
Q: Can you accommodate custom orders?
A: Yes, we specialize in customized solutions tailored to your specific requirements.
Q: How long is your production lead time?
A: Production time typically ranges from 7-30 days depending on:
-
Product complexity
-
Order quantity
-
Customization requirements
The description/sizes may be different with goods, please check with us when order.
