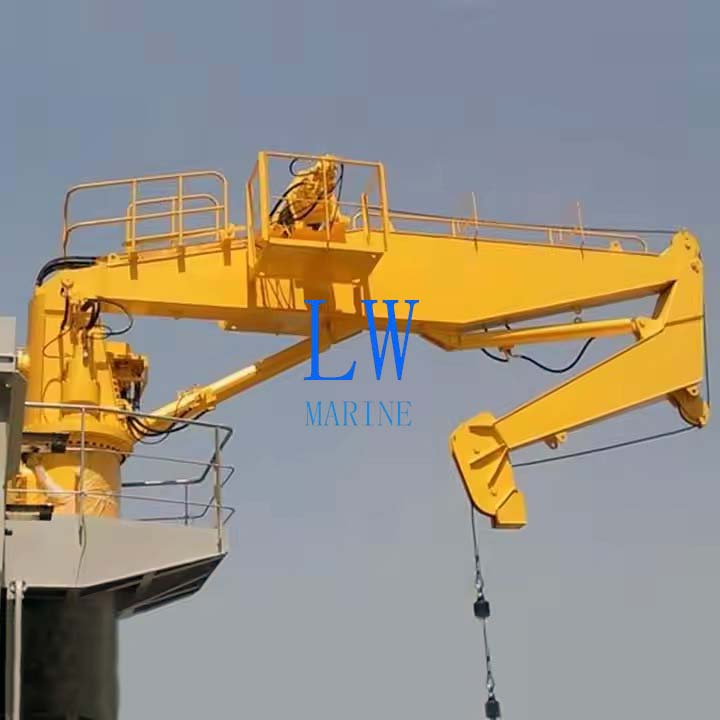

Marine Hydraulic Knuckle Crane
Application
The 66kN@2m – 18kN@8m Marine Hydraulic Knuckle Crane is an essential lifting solution for modern vessels. Its innovative articulated boom design provides exceptional flexibility in confined shipboard spaces while maintaining impressive load capacity at varying reaches.
Key Features:
-
Variable Capacity: 66kN maximum load at 2m reach, 18kN at 8m reach
-
Space-Optimized Design: Articulated joints enable compact folding (60% reduction in stowed size)
-
Marine-Specific Engineering: Designed for saltwater environments and vessel motion
-
Precision Control: Proportional hydraulic controls for smooth operation
Typical Applications:
-
Offshore supply vessel operations
-
Deck cargo handling
-
Equipment maintenance
-
Crew transfer operations
-
Emergency rescue systems
Material Options
-
Aluminum Alloy: 35% lighter than steel (ideal for weight-sensitive applications)
-
High-Tensile Carbon Steel: For maximum strength in heavy-duty use
-
Marine-Grade Stainless Steel: 316L grade available for extreme corrosion resistance
Advantages & Features
-
Heavy-Duty Construction: Reinforced boom sections with 20% higher fatigue life
-
Space-Saving Multi-Tasker: Folding design requires 40% less deck space than rigid booms
-
Maintenance Optimized:
-
Centralized lubrication points
-
Sealed pivot bearings (10,000-hour service interval)
-
-
Enhanced Durability:
-
Standard marine-grade coatings
-
Optional zinc-aluminum spray for harsh environments
-
-
Custom Engineering:
-
Boom length configurations (4-12m)
-
Specialized attachment interfaces
-
-
Control Options:
-
ERGOMATIC cabin control
-
Wireless remote (100m range)
-
-
Power Systems:
-
Standard 30kW hydraulic power unit
-
Explosion-proof options (ATEX/IECEx certified)
-
-
Safety Systems:
-
Dual-circuit overload protection
-
Automatic load moment limitation
-
Emergency stop systems
-
-
Full Maneuverability:
-
360° continuous rotation
-
Programmable soft limits
-
-
Certifications:
-
ABS, BV, LR, DNV, NK
-
SOLAS compliant
-
MED 2014/90/EU
-
Parameters:
| SWL | 66KN/18KN |
| Motor Power | 37KW |
| Power source | 415V/50Hz |
| Protect Class | IP44 |
| Working Radius | 2m/8m |
| Hoisting Speed | 12m/min |
| Hoisting Height | 30m |
| Slewing Speed | 0~0.75r/min |
| Slewing Angle | 360° |
| Luffing Time | ~60s |
| Tirm | ≤2° |
| Heel | ≤5° |
The description/sizes may be different with goods, please check with us when order.
