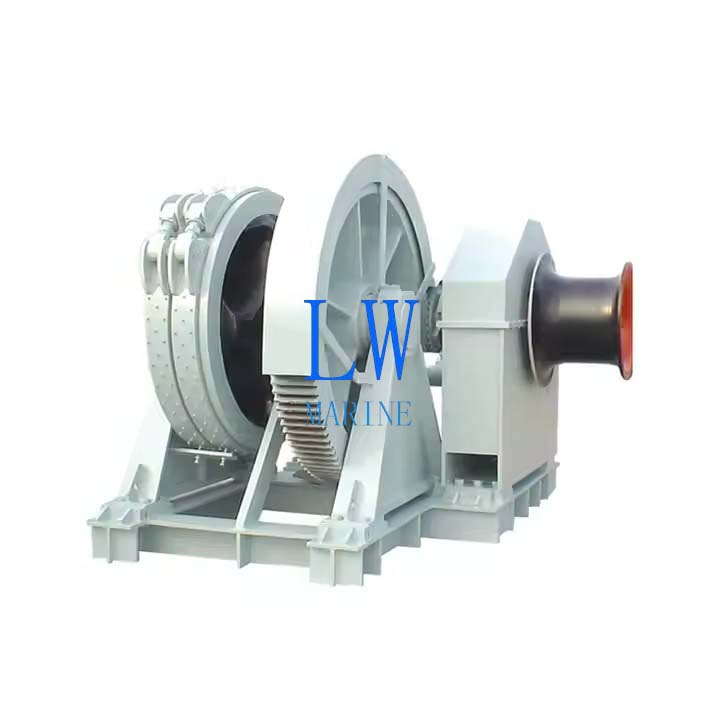

Marine Hydraulic Anchor Windlass
The Marine Hydraulic Anchor Windlass stands out as a superior alternative to manual or electric models, offering unparalleled lifting capacity, precise chain speed and direction control, and exceptional durability. These robust systems are specifically designed for large commercial vessels, including cargo ships, tankers, and offshore drilling rigs, where reliability and performance are paramount.
While hydraulic windlasses provide unmatched power and dependability, they necessitate dedicated hydraulic power systems and entail more complex maintenance procedures compared to their electric counterparts. Their installation and upkeep require specialized knowledge and skills, underscoring their professional-grade marine application.
Material
Constructed from high-grade cast steel for robustness
Optional 316L stainless steel components available for enhanced resistance to corrosion
Advantages and Features
- Heavy-Duty Construction: Compact yet exceptionally strong, capable of bearing substantial loads with ease.
- Flexible Control Options: Equipped for both local and remote operation, providing versatility in various marine environments.
- Engineered for Efficiency: Simplified installation process with minimal maintenance requirements, ensuring cost-effectiveness.
- Marine-Proof Durability: Superior corrosion protection extends the service life, even in harsh marine conditions.
- Precision Braking Systems: Choose between manual or hydraulic brake/clutch mechanisms for precise control and safety.
- Energy-Efficient Operation: Optimized power consumption without compromising on high performance.
- Fail-Safe Reliability: Designed to meet critical marine safety standards, ensuring peace of mind.
- Custom Configuration: Tailored solutions to meet the specific needs of specialized vessels.
- Certified Quality: Approved by leading classification societies such as BV, LR, RINA, ensuring compliance with international standards.
Main Technical Data of Windlass
| Chain Dia. (mm) | Working Speed (m/min) | Warping Load (KN) | Working Load (KN) | Supporting Load (KN) | Motor Power (kW) |
|---|---|---|---|---|---|
| 14/16/17.5 | ≥9 | 8 | 8.3/10.9/13.0 | 51/67/80 | 5.5 |
| 19/20.5/22 | ≥9 | 10 | 15.3/17.9/20.6 | 95/110/126 | 7.5 |
| 24/26 | ≥9 | 20 | 24.5/28.7 | 149/175 | 11 |
| 28/30 | ≥9 | 30 | 33.3/38.3 | 202/231 | 15 |
| 32/34/36 | ≥9 | 30 | 43.5/49.1/55.1 | 261/294/329 | 22 |
| 38/40/42 | ≥9 | 40 | 61.4/68.0/75.0 | 365/402/442 | 30 |
| 44/46/48 | ≥9 | 50 | 82.3/89.9/97.9 | 483/526/570 | 37 |
| 50/52/54 | ≥9 | 50 | 106.3/114.9/132.9 | 617/664/713 | 45 |
| 56/58/60 | ≥9 | 60 | 133.2/143.0/153.0 | 764/816/870 | 55 |
| 62/64 | ≥9 | 80 | 163.4/174.1 | 925/982 | 55 |
| 66/68 | ≥9 | 100 | 185.1/196.5 | 1040/1098 | 75 |
| 70/73 | ≥9 | 100 | 208.3/226.5 | 1160/1254 | 75 |
| 76/78 | ≥9 | 125 | 245.5/258.6 | 1350/1416 | 90 |
| 81/84 | ≥9 | 140 | 311.7/335.2 | 2171/2320 | 110 |
| 87/90 | ≥9 | 150 | 359.5/384.8 | 2473/2629 | 120 |
| 92/95 | ≥9 | 200 | 446.9/475.0 | 2995/3162 | 130 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
