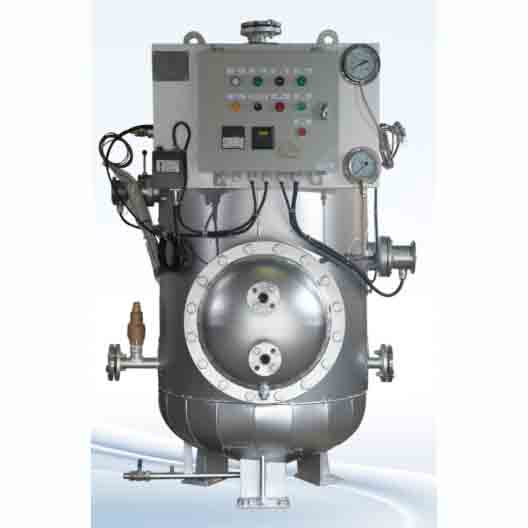

Marine Hot Water Tank Application
The marine hot water tank series is designed for vessels with AC power supply (380V/50Hz or 440V/60Hz), providing on-demand hot water for:
-
Crew showers & sanitation
-
Galley & laundry use
-
General shipboard hot water requirements
Working Principle
-
Integrated Fresh Water Supply
-
Connects directly to the ship’s pressurized freshwater tank
-
Water flows into the heater for controlled heating
-
-
Smart Temperature Regulation
-
Thermostatic Control (45°C–65°C):
-
Heating activates when temperature drops below 45°C
-
Heating stops at 65°C to prevent scalding & save energy
-
-
-
Safety Protections
-
Low Water Cutoff:
-
Auto power shutoff if water level falls below safe limits
-
Prevents dry firing & protects heating elements
-
-
Pressure Relief Valve:
-
Ensures tank integrity during pressure fluctuations
-
-
Main parameters :
Design pressure 0.45 or 0.7Mpa
Working pressure 0.4 or 0.6Mpa
Safety Valve Open pressure 0.45 or 0.7Mpa
Water outlet temp 65°C
| Product Name | Marine DRG Series Electric Storage Calorifier | ||||
| Capacity(m3) | 0.12 | 0.2 | 0.3 | 0.5 | 1 |
| Electric Heating power(kw) | 12 | 24 | 36 | 48 | 60 |
| The laying of the outer surface of insulation layer thickness(mm) | 40 | ||||
| Outsourcing Galvanized Steel Sheet Thickness(mm) | 0.7 | ||||
| Working Pressure(MPa) | 0.4or0.6 | ||||
| Test Pressure(MPa) | 0.66 | ||||
| Safety Valve Open Pressure(MPa) | 0.45or0.7 | ||||
| Design Pressure(MPa) | 0.45or0.7 | ||||
| Water Inlet Temp(°C) | 15 | ||||
| Water Outlet Temp(°C) | 65 | ||||
| Hot-water capacity(kg/h) | 180 | 360 | 540 | 720 | 900 |
| Source | AC380,50Hz,3φ/AC440V,60Hz,3φ | ||||
| Weight(kg) | 198 | 243 | 299 | 308 | 513 |
The description/sizes may be different with goods, please check with us when order.
