Marine horizontal water sealing pump CWF Series

1. General

CWF Series marine horizontal water sealing pump is suitable to the protection pump on dredger where it is used to seal the water. It is also suitable to the bilge pump, cooling pump and fire pump on boats. It may be used to deliver the sea water, fresh water or other non-corrosive liquid medium lower than 70 °C.

The pump rotates anticlockwise viewed from motor.

2. Pump model significance

The “80” in “80 CWF – 4” represents the suction/discharge diameter is 80mm.
“CWF” stands for Marine horizontal water sealing pump.
The number after the hyphen represents “Apart from a few ≤10 than to the entire value after round”.

3. Main technical parameter

Parameters in case of power supply frequency of 50Hz, 2900r/min:

No. Pump type Flow (m³/h) Head (m) Self-priming height (m) Speed (r/min) NPSH (r/m) Shaft power (kW) Motor power (kW)
1 65CWF-5 24 80 6 2900 3.5 15.7 18.5KW, Y160L-2-H
2 65CWF-5 40 60 6 2900 3.5 15.7 18.5KW, Y160L-2-H
3 65CWF-4 40 70 6 2900 3.5 15.7 18.5KW, Y160L-2-H
4 65CWF-3.5 25 100 6 2900 3.5 18.7 22KW, Y180M-2-H
5 65CWF-3.5A 40 100 6 2900 3.5 25.5 30KW, Y200L-2-H
6 65CWF-3 40 120 6 2900 3.5 31.5 37KW, Y200L2-2-H
7 80CWF-8 60 40 6 2900 4.5 12.7 15KW, Y160M-2-H
8 80CWF-7.5 50 50 6 2900 3.5 15.7 18.5KW, Y160L-2-H
9 80CWF-6.5 60 60 6 2900 4.5 18.7 22KW, Y180M-2-H
10 80CWF-6 50 65 6 2900 3.5 18.7 22KW, Y180M-2-H
11 80CWF-5.5 60 80 6 2900 4 25.5 30KW, Y200L-2-H
12 80CWF-5 60 80 6 2900 3.5 25.5 30KW, Y200L-2-H
13 80CWF-4.5 60 120 5.5 2900 4.5 38.3 55KW, Y250M-2-H
14 80CWF-4 30 80 6.5 2900 3.5 15.7 18.5KW, Y160L-2-H
15 80CWF-3.5 50 120 6 2900 4 38.3 45KW, Y225M-2-H
16 80CWF-3 50 160 5.5 2900 4.5 38.3 75KW, Y280S-2-H
17 100CWF-7.5 80 50 5.5 2900 4.5 15.7 18.5KW, Y160L-2-H
18 100CWF-6.5 80 60 5.5 2900 4.5 18.7 22KW, Y180M-2-H
19 100CWF-6 80 80 5.5 2900 4.5 38.3 45KW, Y225M-2-H
20 100CWF-4 80 140 5.5 2900 4.5 63.8 75KW, Y280S-2-H
21 100CWF-4A 80 120 5.5 2900 4.5 63.8 75KW, Y280S-2-H
22 100CWF-3.5 50 120 5.5 2900 4.5 38.3 45KW, Y225M-2-H
23 125CWF-13 200 50 5.5 2900 4.5 46.7 55KW, Y250M-2-H
24 125CWF-7 200 110 5.5 2900 4.5 136 160KW, Y315M-2-H
25 125CWF-5 80 110 5.5 2900 4.5 46.7 55KW, Y250M-2-H
26 125CWF-4.5 160 200 5 2900 5 170 200KW, Y315L-2-H
27 125CWF-4.5A 120 200 5 2900 5 170 200KW, Y315L-2-H
28 125CWF-4 80 120 5.5 2900 4.5 63.8 75KW, Y280S-2-H
29 125CWF-3.5 160 150 5 2900 5 136 160KW, Y315M-2-H
30 125CWF-3.5A 120 150 5 2900 5 112.2 132KW, Y315M-2-H

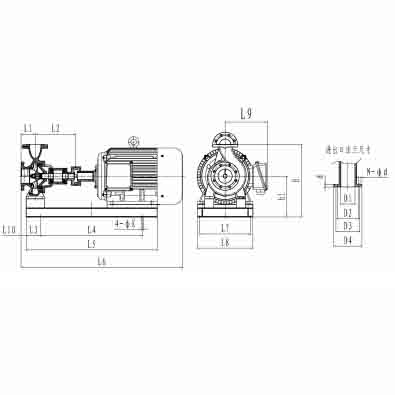

4. Contour and installation size

Type L1 L2 L3 L4 L5 L6 L7 L8 L9 L1 h1 H 4-ØK
65CWF-3.5 180 616 100 640 840 1220 287 335 255 65 230 490 4-Ø19
65CWF-5 180 600 100 600 800 1220 285 335 255 65 250 510 4-Ø19
65CWF-4 180 602 100 628 820 1210 335 385 255 65 210 495 4-Ø19
65CWF-3.5 180 640 100 750 950 1420 350 400 310 65 230 495 4-Ø19
65CWF-3.5A 180 640 100 750 950 1420 350 400 310 65 230 495 4-Ø19
65CWF-3 180 640 100 750 950 1420 350 400 310 65 230 495 4-Ø19
80CWF-8 200 436 100 720 920 1260 320 360 285 60 230 515 4-Ø19
80CWF-7.5 200 636 100 720 920 1260 320 370 255 65 230 515 4-Ø19
80CWF-6.5 200 640 100 800 1000 1420 360 400 310 70 230 525 4-Ø19
80CWF-6 190 640 100 760 960 1350 320 370 255 62 230 525 4-Ø19
80CWF-5.5 200 710 100 820 1020 1460 360 400 310 75 230 530 4-Ø19
80CWF-5 190 640 100 800 1020 1420 360 400 285 62 230 525 4-Ø19
80CWF-4.5 180 616 100 640 840 1220 285 335 255 65 230 490 4-Ø19
80CWF-4 180 616 100 640 840 1220 285 335 255 65 230 490 4-Ø19
80CWF-3.5 200 708 100 830 1030 1500 360 400 310 65 250 545 4-Ø19
80CWF-3 125 543 85 1060 1400 1600 450 500 310 60 440 300 4-Ø25
100CWF-7.5 200 740 100 830 1030 1450 360 400 310 75 250 530 4-Ø19
100CWF-6.5 200 740 100 830 1030 1450 360 400 310 75 250 530 4-Ø19
100CWF-6 220 760 100 880 1080 1530 400 440 345 80 250 530 4-Ø19
100CWF-4 200 720 100 820 1020 1460 400 440 345 75 280 550 4-Ø19
100CWF-4A 200 720 100 820 1020 1460 400 440 345 75 280 550 4-Ø19
100CWF-3.5 200 720 100 820 1020 1460 400 440 345 75 280 550 4-Ø19
125CWF-13 125 358 128 900 1156 1426 450 490 373 45 360 640 4-Ø19
125CWF-7 220 790 100 900 1100 1685 450 500 385 80 250 530 4-Ø19
125CWF-5 220 790 100 900 1100 1650 450 500 385 80 250 530 4-Ø19
125CWF-4.5 220 790 100 900 1100 1685 450 500 385 80 250 530 4-Ø19
125CWF-4.5A 220 790 100 900 1100 1685 450 500 385 80 250 530 4-Ø19
125CWF-4 220 790 100 900 1100 1685 450 500 385 80 250 530 4-Ø19
125CWF-3.5 220 790 100 900 1100 1685 450 500 385 80 250 530 4-Ø19
125CWF-3.5A 220 790 100 900 1100 1685 450 500 385 80 250 530 4-Ø19

Note: The description may be different with the product, please contact us for quotation.
